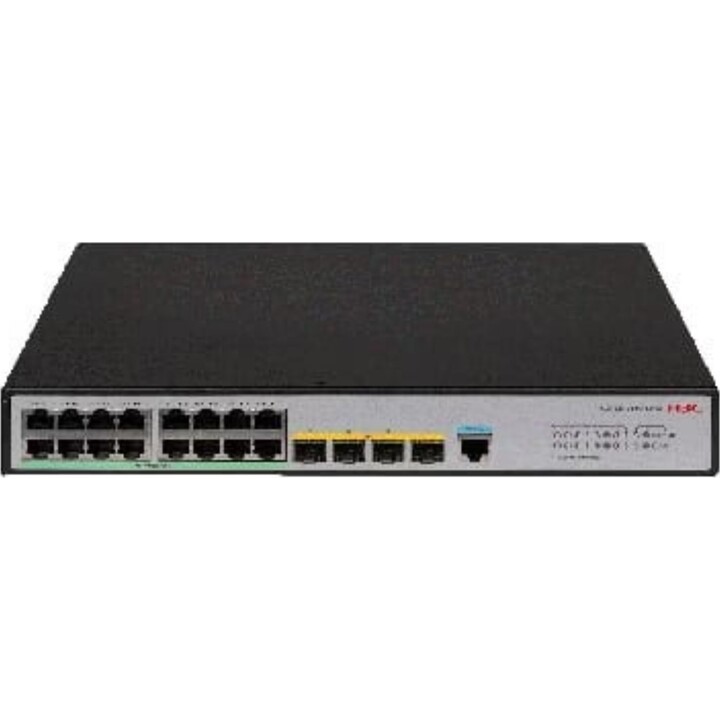

H3C LS-5120V3-20P-LI-GL Switch, Managed, L3, Gigabit Ethernet (10/100/1000), Rack Mount

Description

H3C LS-5120V3-20P-LI-GL Managed switch L3 Gigabit Ethernet (10/100/1000)

H3C LS-5120V3-20P-LI-GL, Managed, L3, Gigabit Ethernet (10/100/1000), Rack Mount

Management features

• Switch type: Managed
• Switch layer: L3
• Quality of Service (QoS) support: Yes
• Web-based administration: Yes
• Traffic classification: Yes

Ports and Interfaces

• Number of basic RJ-45 Ethernet switching ports: 16
• Basic switching type RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000)
• Number of SFP module slots: 4

Connection

• 10G support: No
• Port mirroring: Yes
• Adding links: If
• IPv4 routes: 512
• VLAN support: Yes
• Virtual LAN functions: MAC address-based VLAN, Multicast VLAN, Port-based VLAN, VLAN mapping

Data transmission

• Switching capacity: 40 Gbit/s
• Forwarding rate: 30 Mpps
• MAC address table: 8000 entries
• Jumbo Frames, support: Yes
• Jumbo plots: 10000

Security

• DHCP features: DHCP relay, DHCP server, DHCP client, DHCP snooping
• Access Control List (ACL): If
• Supported security algorithms: HTTPS, SSH-2
• SSH/SSL support: Yes
• Password protection: Yes

Multicast functions

• Multicast entries for IPv4: 1000

Design

• Rack mount: Yes

Energy control

• Power source: Alternating current
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Energy consumption: 9 W
• Power consumption (max): 19 W

Power over Ethernet (PoE)

• Power over Ethernet (PoE): No

Environmental conditions

• Operating temperature range: -5 - 50°C
• Storage temperature range: -40 - 70 °C
• Relative humidity range for operation: 5 - 95%

Weight and dimensions

• Width: 330 mm
• Depth: 230 mm
• Height: 43.6 mm
• Weight: 2 kg
