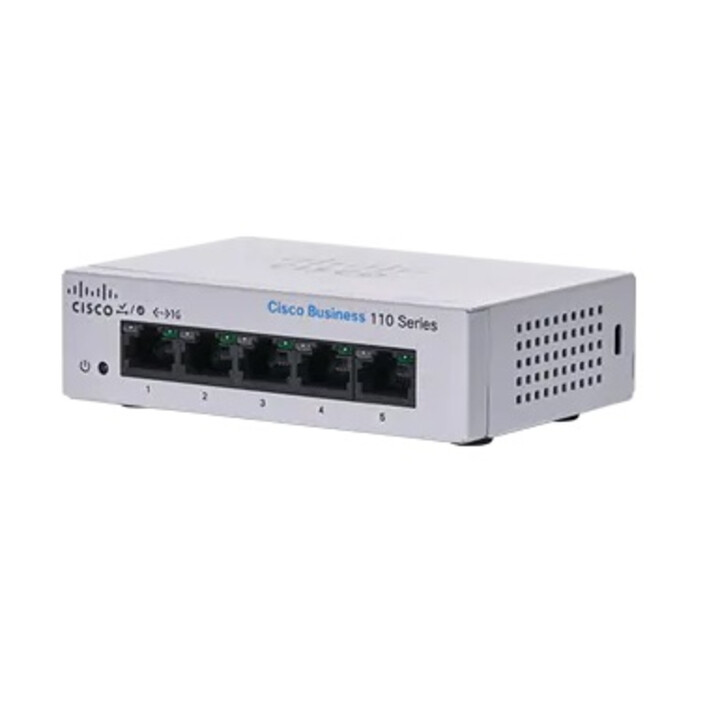

Cisco CBS110 Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Gray

Cisco CBS110 Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Gray

Cisco
Reference: CBS110-5T-D-EU
EAN: 0889728326605
Condition: New
€50.32
VAT included
Without tax: €41.59
  • 5 x Gigabit Ethernet (10/100/1000) ports
  • Unmanaged L2 switch, plug-and-play
  • Fanless design for silent operation
  • Metal housing, desktop or wall-mountable
  • Compliant with IEEE 802.3, 802.3u, 802.3ab standards
Share


Buy it now and receive it between Fri 2 and Thu 8 with GLS o Correos Express España €19.90

Up to 3 years warranty 100% secure payment 14 days return

Power control
Power supply included
Yes
Redundant Power Supply (RPS), support
Not
DC input voltage
12 V
Number of power supplies
1
Connection
Network standards
IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Ethernet LAN, data transfer speed
10,100,1000 Mbit / s
Auto MDI / MDI-X
Yes
Flow control support
Yes
Support 10G
Not
Copper ethernet cabling technology
1000BASE-T, 10BASE-T, 100BASE-TX
Bidirectional full (Full duplex)
Yes
Half duplex transmission
Yes
Head-of-line (HOL) lock
Yes
Data transmission
MAC address table
2,048 entries
Forwarding rate
7.4 Mpps
Switching capacity
10 Gbit / s
Jumbo Frames, support
Yes
Number of queues
4
Jumbo frames
9216
Performance
Mean time between failure
4243002 h
Ports and Interfaces
Basic Type RJ-45 Ethernet Switch Ports
Gigabit Ethernet (10/100/1000)
Number of Basic RJ-45 Ethernet Switch Ports
5
Gigabit Ethernet (copper), number of ports
5
Management features
Switch layer
L2
Switch type
Not managed
Quality of service (QoS) support
Yes
Weight and measurements
Height
30 mm
Weight
230 g
Depth
75 mm
Width
110 mm
Design
Rack mountable
Yes
LED indicators
Yes
Form factor
1U
Product color
Gray
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Not
Packaging
Quick setup guide
Yes
Environmental conditions
Heat dissipation
9.34 BTU / h
Storage temperature range
-20 - 70 C
Relative humidity range for operation
10 - 90%
Operating temperature range
0 - 40 C
Relative humidity range during storage
5 - 90%
Safety
Queue scheduling algorithms
Weighted Round Robin (WRR)
