Switch 4x GE IGP-0502 Industrie xGSFP 120W 4xPoE+

Description of the IGP-0502

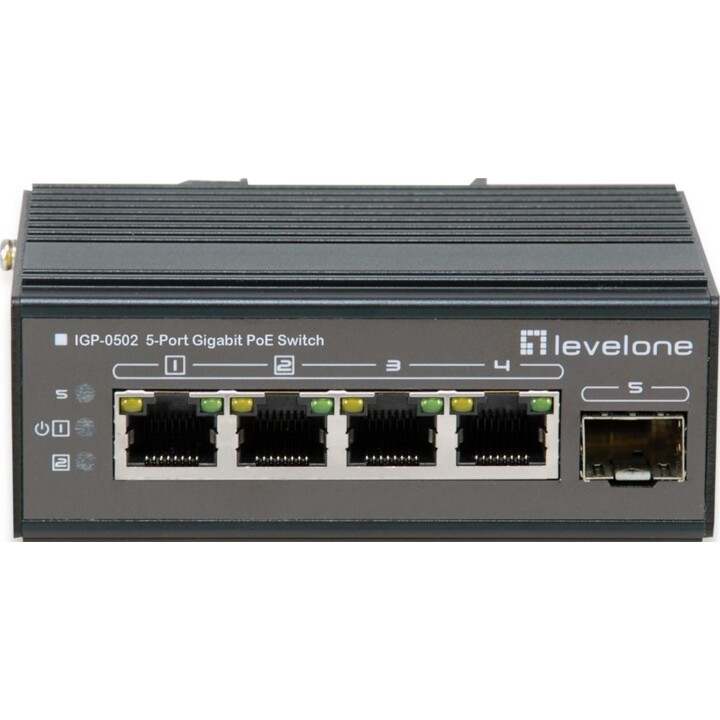

LevelOne IGP-0502 Gigabit Ethernet (10/100/1000) unmanaged switch with Power over Ethernet (PoE), black

LevelOne IGP-0502, unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), wall mountable

Key product features

Unmanaged switch

Number of basic RJ-45 Ethernet switching ports: 4

MAC address table: 8000 entries Switching capacity: 10 Gbit/s

Power over Ethernet (PoE)

Management features

Switch type: Unmanaged

Ports and interfaces

Number of basic RJ-45 Ethernet switching ports: 4

Basic RJ-45 Ethernet switching ports: Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper), number of ports: 4

Number of SFP module slots: 1

Connectivity

Network standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z

10G support: No

Auto MDI/MDI-X: Yes

Ethernet LAN data transfer rate: 1000 Mbit/s

Data transmission

Switching capacity: 10 Gbit/s

MAC address table: 8000 entries

Jumbo frame support: Yes

Jumbo frames: 9000

Design

Rack mountable: No

Stackable: No

Product color: Black

LED indicators: Activity, link, power

Wall mount support: Yes

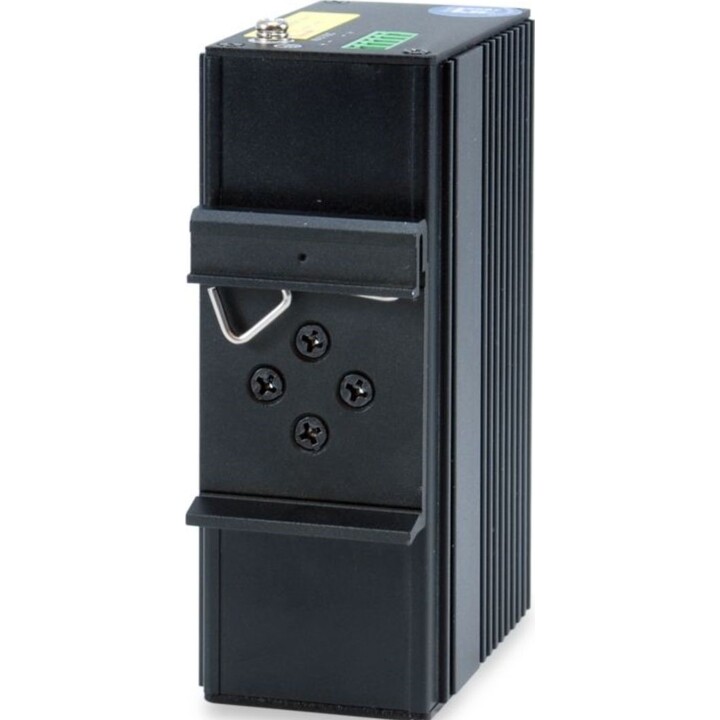

DIN rail mounting: Yes

Device performance

Internal memory: 1 MB

Power management

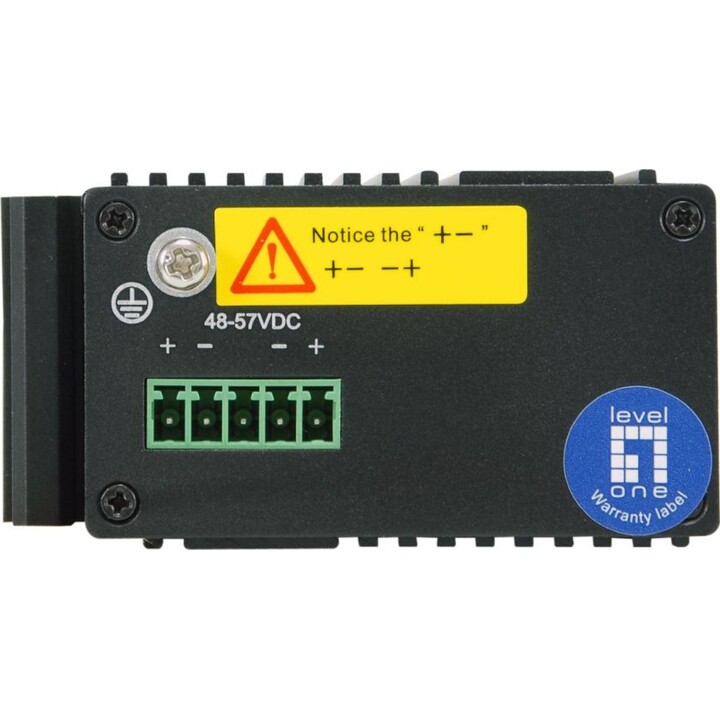

Power source: DC

DC input voltage: 48 - 57 V

Power consumption: 5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes

Power per PoE port: 30 W

PoE power budget: 120 W

Operating conditions

Operating temperature: -40 to 75°C

Storage temperature: -40 to 85°C

Operating relative humidity range: 10 - 90%

Storage relative humidity: 5 - 95%

Weight and dimensions

Width: 65 mm

Depth: 50 mm

Height: 99 mm

Weight: 350 g

Package contents

Quick installation guide: Yes

Packaging

Packaging type: Box

Package width: 110 mm

Package depth: 62 mm

Package height: 130 mm

Package weight: 400 g
