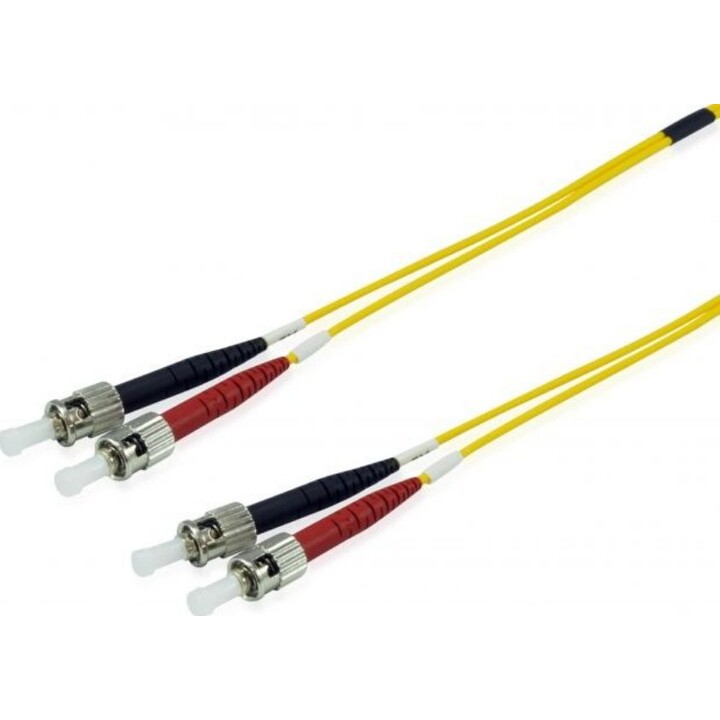

EQUIP fiber optic patch cable ST--ST 5.00 m single-mode duplex OS2 from polybag
- Connector type: ST to ST, duplex
- Fiber type: Single-mode OS2 (9/125 µm)
- Length: 5.00 meters
- Insertion loss: ≤0.3 dB, Return loss: ≥50 dB
- Jacket material: LSZH (Low Smoke Zero Halogen)
EQUIP fiber optic patch cable ST--ST 5.00 m single-mode duplex OS2 from polybag
The EQUIP 252235 fiber optic patch cable is designed for reliable single-mode duplex connections in high-speed networks. With ST connectors on both ends and a length of 5 meters, it ensures low insertion loss and high return loss for optimal signal integrity. The OS2 grade fiber (9/125 µm) supports long-distance transmissions up to 10 km at 1 Gbps and beyond.
This cable features a durable LSZH (Low Smoke Zero Halogen) jacket, making it suitable for indoor installations where fire safety is a concern. The duplex design allows for simultaneous bidirectional communication, ideal for switches, routers, and media converters. Each cable is individually tested and packaged in a polybag for protection.
| Brand | EQUIP |
| Model | 252235 |
| Connector Type | ST to ST, Duplex |
| Fiber Type | Single-mode OS2 (9/125 µm) |
| Length | 5.00 m |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥50 dB |
| Jacket Material | LSZH |
| Operating Wavelength | 1310/1550 nm |
| Polarity | A to B |
-
Brand
-
Reference252235
-
In stock96 Items
-
ConditionNew
-
EAN134015867176931
-
MPN252235
