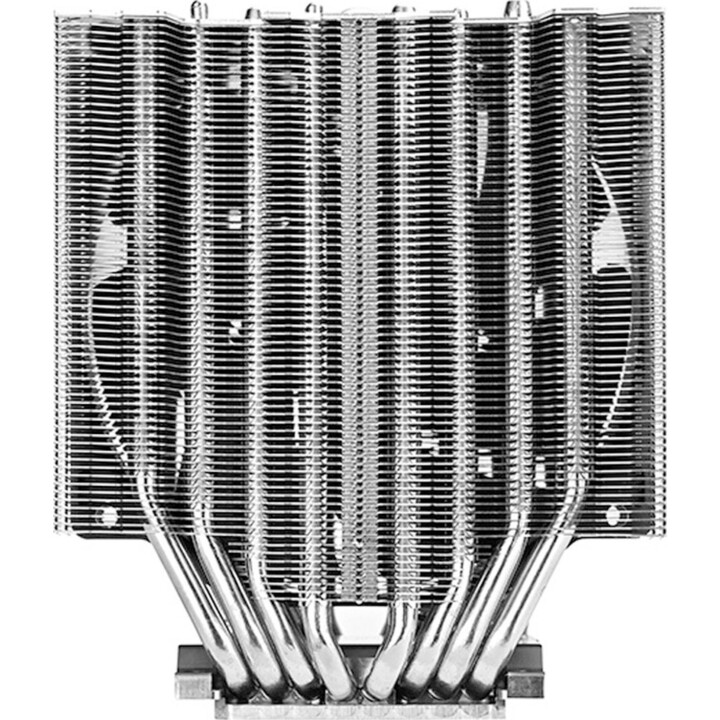

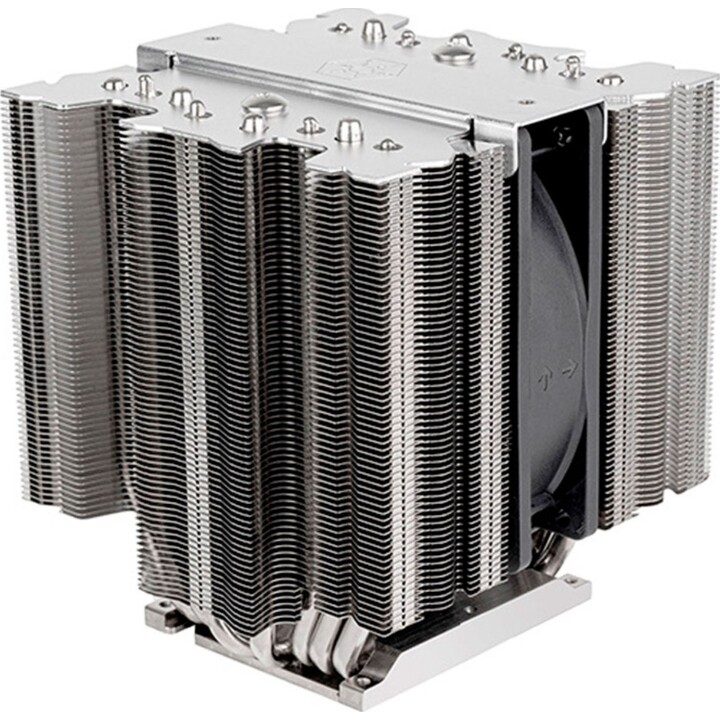

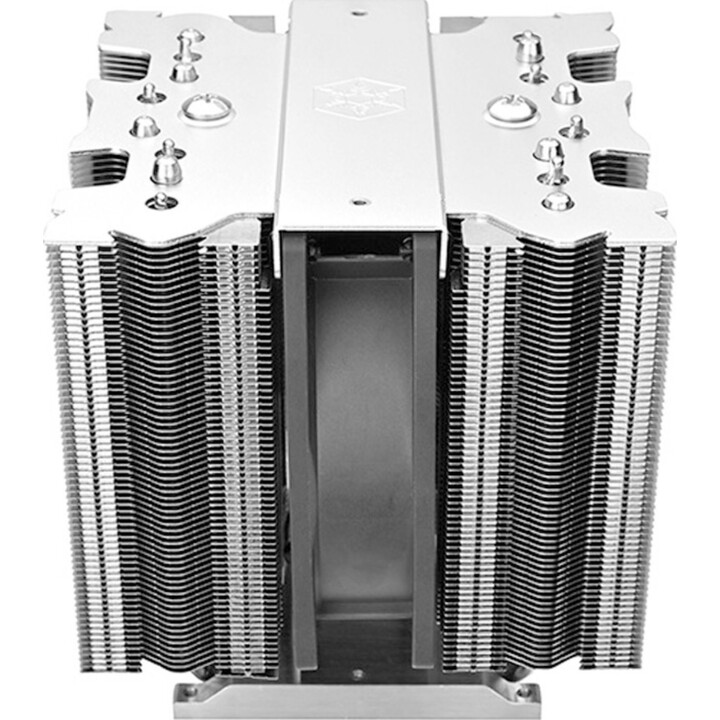

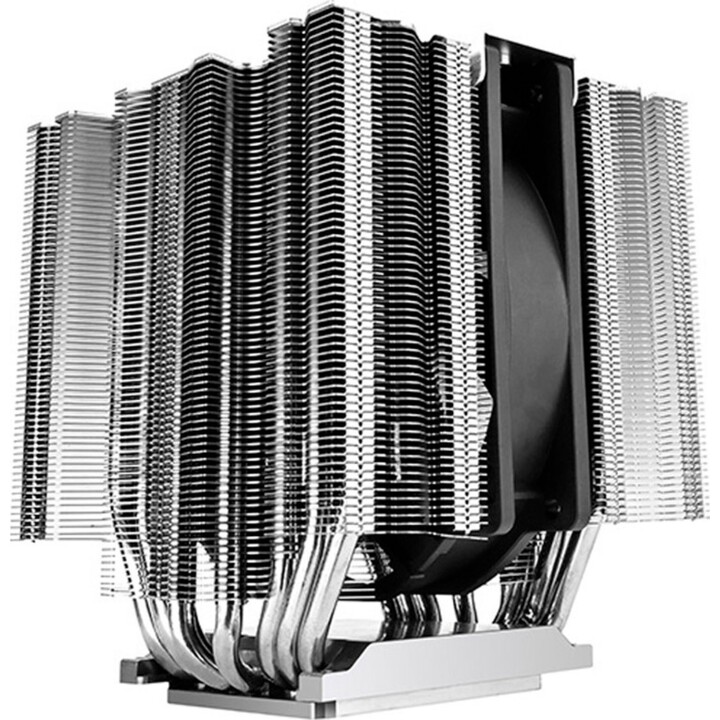

SilverStone XED120 WS Silver CPU Cooler

Specs

General

• Model : SST-XED120S-WS
• Type : 4U Industrial CPU Heatsink
• Supported TDP : up to 450 W

Materials

• Heatpipes : 8× Ø6 mm in copper
• Fins : Aluminum
• Fan bracket : Metal

Socket compatibility

• Intel : LGA4677 / LGA4710 (requires carrier CPU; not included)
• AMD : SP5 / SP6 / sTR5 / SP3 / TR4 / sWRX8 / sWRX9

Fan

• Dimensions : 120 × 30 × 120 mm
• Type : PWM, double ball bearing
• Connector : 4-pin PWM
• Speed : 500 – 3000 rpm
• Maximum airflow : 102 CFM
• Maximum static pressure : 8.24 mmH₂O
• Sound level : 44.9 dBA
• MTTF : 70,000 hours

Electric

• Nominal voltage : 12 V
• Nominal current : 0.35 A

Dimensions and weight (complete heatsink)

• Dimensions : 120 × 145 × 120 mm
• Net weight : 1.15 kg
• Total height : 145 mm (compatible with 4U rack chassis )

Product description

SilverStone XED120 WS Silver CPU Cooler

SilverStone XED120 WS (Silver) : 4U industrial CPU cooler with a TDP up to 450W, optimized for server motherboards (including dual CPUs) and featuring front-to-rear airflow with CPU and VRM cooling channels. Premium construction with eight 6mm heatpipes, aluminum fins, and a 120x30mm PWM fan with dual ball bearings and a metal bracket for maximum stability and low vibration. Wide compatibility: Intel LGA4677/4710 and AMD SP5/SP6/sTR5/SP3/TR4/sWRX8/sWRX9; meets 4U rack standards with a height of 145mm.

Exceptional Heat Transfer Performance:
The XED120-WS features eight 6mm diameter copper heat pipes in a dual-heatsink design, optimizing heat transfer efficiency. Designed to handle the constant heat demands and outputs of high-performance server CPUs, it ensures superior thermal management for sustained operation.

Compact and Interference-Free Design:
The heatsinks are designed with a 120mm form factor and a height of 145mm, making the XED120-WS ideal for 4U rackmount cases. This design ensures universal and interference-free installation, even with two units on dual-socket motherboards.

Ultimate Cooling Efficiency:
The heatsinks are paired with a 120mm, 30mm thick PWM fan that features high airflow and static pressure, along with dual ball bearings to provide ultimate cooling efficiency and exceptional durability in high-temperature environments. The airflow path is perfectly aligned with the chassis airflow, which helps dissipate heat from the high-temperature VRMs.
