OPTICAL REFLECTOMETER (OTDR) CS-R5B-50H

The CS-R5B-50H is a high-performance optical time-domain reflectometer designed for precise characterization of fiber optic networks. With a dynamic range of 50km at both 1310nm and 1550nm wavelengths, it is suitable for testing long-haul, metro, and access networks. The device features an event dead zone of less than 1 meter and an attenuation dead zone under 8 meters, enabling accurate detection of splices, connectors, and faults.

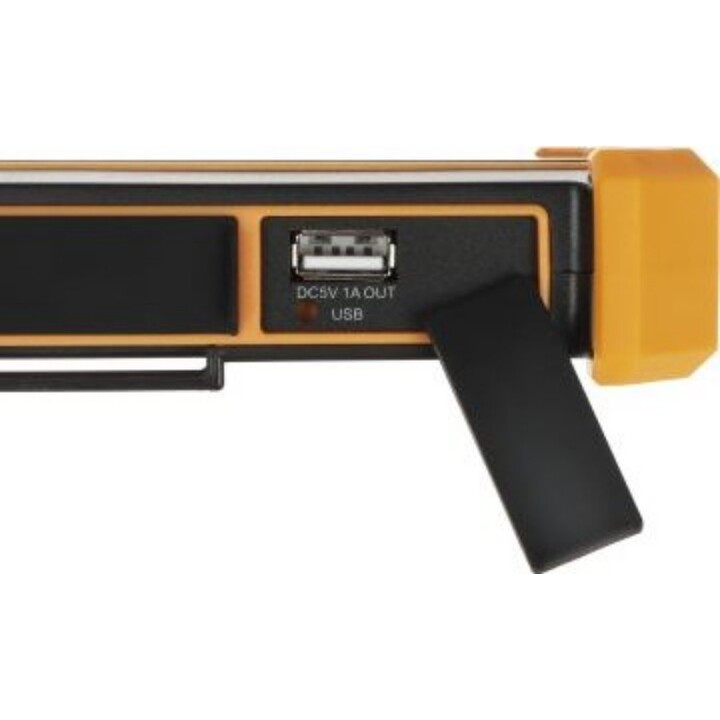

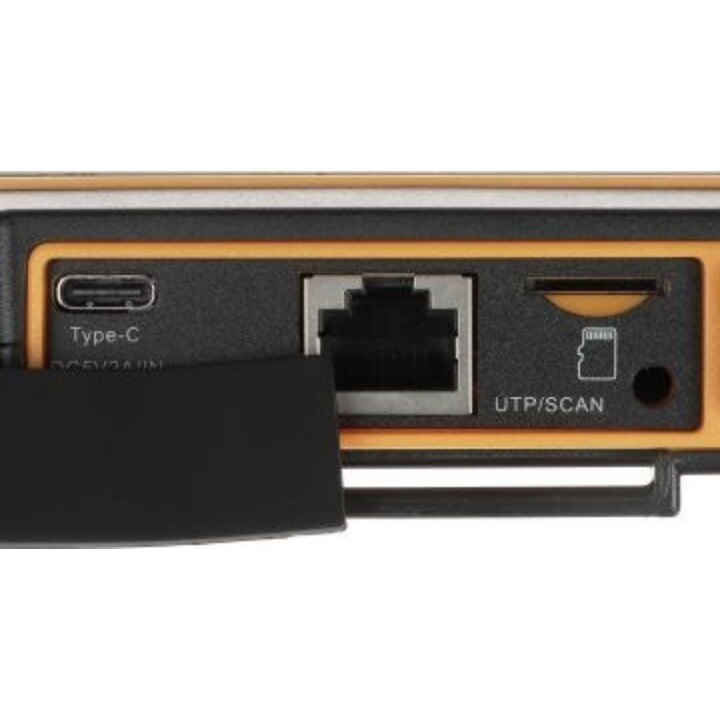

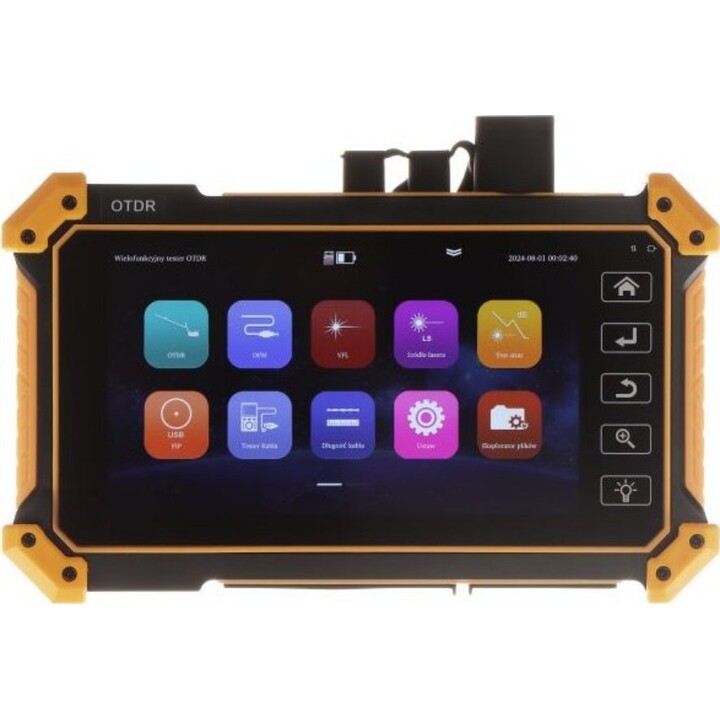

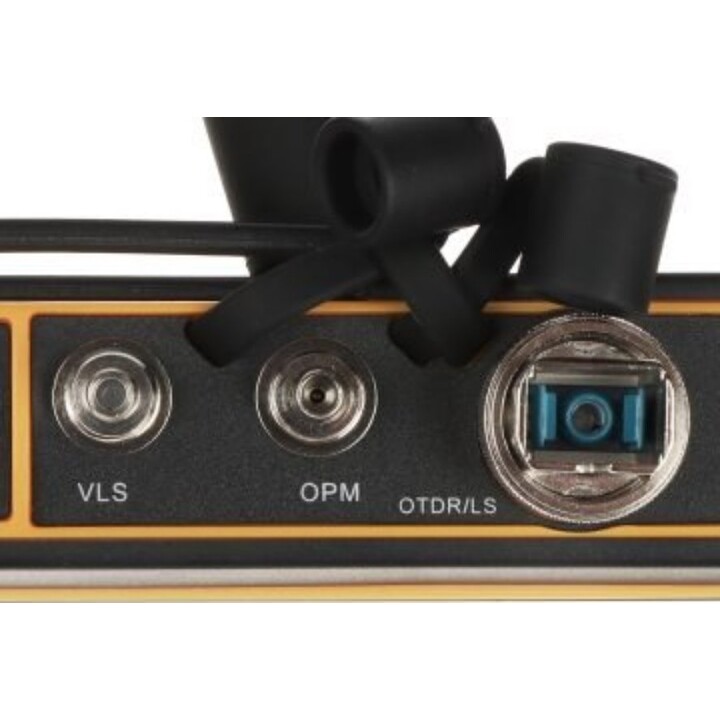

Equipped with a 7-inch color touchscreen display and intuitive user interface, the CS-R5B-50H simplifies trace analysis and reporting. It offers 8GB internal memory for storing thousands of traces, plus USB and Bluetooth connectivity for data transfer. The built-in light source and power meter functions add versatility for comprehensive fiber testing. Its rugged design and rechargeable battery make it ideal for field use.
