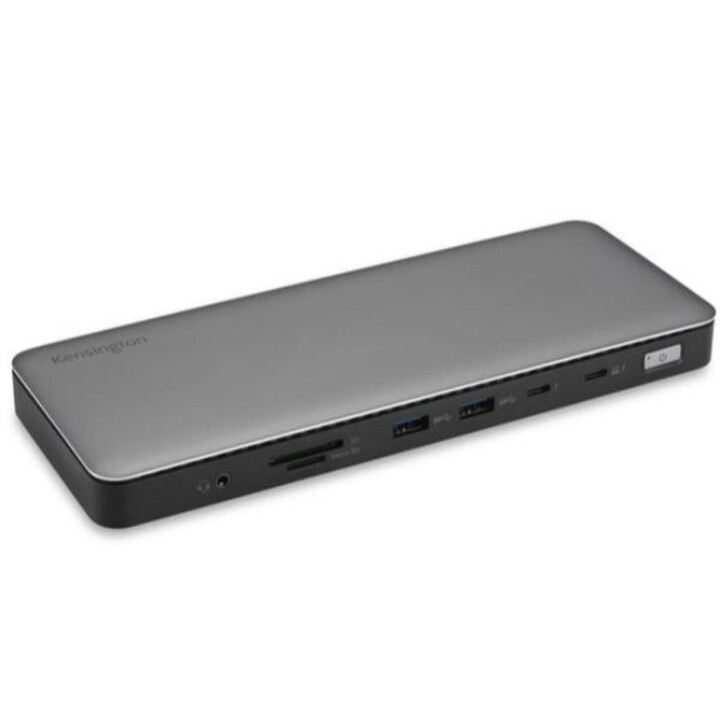

Docking sd5760t thunderbolt 4dual4k
The Kensington SD5760T is a high-performance Thunderbolt 4 docking station designed for professionals who need to expand their connectivity and boost productivity. Whether you work from home or the office, this dock delivers a seamless plug-and-play experience with no drivers or downloads required. It supports the latest Thunderbolt 4, Thunderbolt 3, USB4, and USB-C devices, including MacBooks, Surface devices, and laptops running Windows 10 or later, macOS 11 or later, and ChromeOS 91 or above.
With 13 ports of connectivity, the SD5760T offers exceptional versatility. It supports dual 4K displays at 60Hz via two HDMI ports or a single 8K display at 60Hz via the front Thunderbolt 4 port (when DSC is enabled). Note that MacBooks with base M1/M2/M3 chipsets or USB-C Alt Mode laptops only support a single external display. The dock also features 6 USB ports, a Gigabit Ethernet port, SD and MicroSD UHS-II card readers, and a combo audio jack, making it ideal for graphic designers, video editors, and animators who require fast data transfers.
Power Delivery of up to 96W ensures your laptop stays charged while you work, and data transfer speeds of up to 40Gbps keep your workflow efficient. The included 0.8m Thunderbolt 4 cable provides immediate connectivity, and Kensington DockWorks software helps you manage your setup. The dock also includes a Kensington Nano security slot for cable locks (K65020EU or K65021WW, sold separately) to protect your investment.
Características principales
- Thunderbolt 4 host interface with 40Gbps data transfer speed
- Supports dual 4K@60Hz displays via two HDMI ports or one 8K@60Hz display via Thunderbolt 4 port
- 13 ports: 6 USB ports, 1 USB 3.2 Gen 2 Type-C port, Gigabit Ethernet, SD/MicroSD UHS-II card reader, combo audio jack, and security slot
- Up to 96W Power Delivery charging for laptops
- Plug and play; no drivers required
- Compatible with Windows 10+, macOS 11+, and ChromeOS 91+
- Includes 0.8m Thunderbolt 4 cable and Kensington DockWorks software
Especificaciones técnicas
| Host interface | Thunderbolt 4 |
| USB 3.2 Gen 2 Type-C ports | 1 |
| USB Power Delivery | Yes |
| Combo headphone/mic port | Yes |
| Ethernet | Yes |
| Ethernet LAN data rates | 10,1000 Mbit/s |
| Integrated card reader | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Data transfer rate | 40 Gbit/s |
| HD type | 8K Ultra HD |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| Plug and Play | Yes |
| Compatibility | MacBook M-Series Pro/Max Chipset |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Quantity per pack | 1 piece(s) |
| Package width | 108 mm |
| Package depth | 242 mm |
| Package height | 100 mm |
| Package weight | 1.42 kg |
| Quantity per master carton | 6 piece(s) |
| Master carton width | 247 mm |
| Master carton length | 658 mm |
| Master carton height | 115 mm |
| Master carton gross weight | 9.14 kg |
| Master carton net weight | 7.88 kg |
| Supported operating systems | Chrome OS 91 or above; macOS 11 or above; Windows 10 or above |
| Number of USB ports | 6 |
| Resolution | 4K |
Preguntas frecuentes
Does this dock support dual monitors?
Yes, the SD5760T supports dual 4K displays at 60Hz via two HDMI ports or a single 8K display at 60Hz via the Thunderbolt 4 port (when DSC is enabled). However, MacBooks with base M1/M2/M3 chipsets or USB-C Alt Mode laptops only support a single external display.
Is it compatible with my laptop?
The dock works with devices that have Thunderbolt 4, Thunderbolt 3, USB4, or USB-C ports. It supports Windows 10 or later, macOS 11 or later, and ChromeOS 91 or above. It is specifically compatible with MacBook M-Series Pro/Max chipsets.
Do I need to install drivers?
No, the SD5760T is plug and play. No drivers or downloads are required. It also includes Kensington DockWorks software for additional management features.
What is included in the box?
The package includes the SD5760T docking station, a 0.8m Thunderbolt 4 cable, and Kensington DockWorks software. The package dimensions are 108mm x 242mm x 100mm and it weighs 1.42 kg.
Es para ti si...
- You need to connect multiple peripherals and displays to your laptop with a single cable.
- You work with high-resolution media and require fast data transfer speeds up to 40Gbps.
- You want a plug-and-play solution that works across Windows, macOS, and ChromeOS.
- You need to charge your laptop while docked with up to 96W Power Delivery.
- You value a clutter-free workspace with a compact dock that offers 13 ports.
