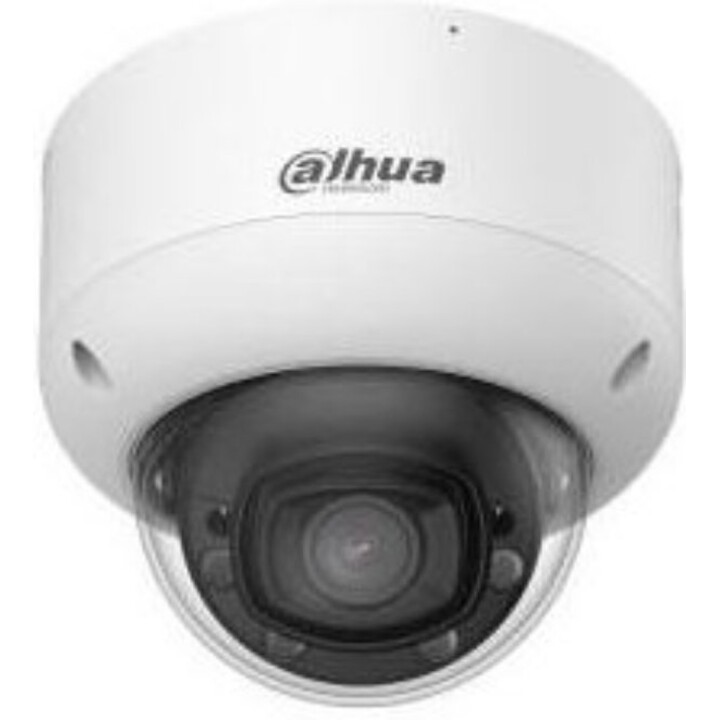

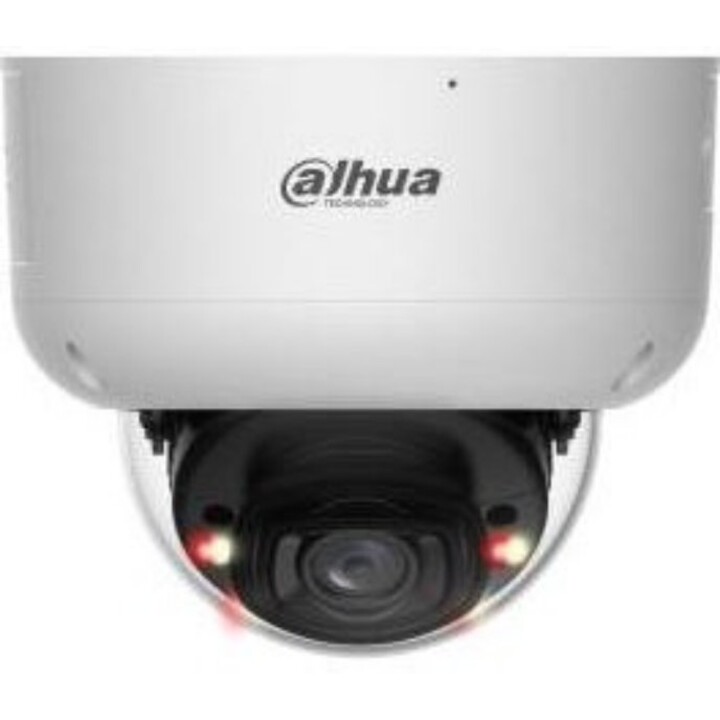

Dahua 8MP HDBW5859R1ASEPV0280BPRO 8MP dome WizMind camera 1/1.8" CMOS

Dahua WizMind 8MP Smart Dual Light Active Deterrence Fixed-focal Dome Network Camera (IPC-HDBW5859R1-ASE-PV-0280B-PRO)

The Dahua IPC-HDBW5859R1-ASE-PV-PRO is a high-end 8MP TiOC (Three-in-One Camera) dome designed for proactive security and superior forensic detail. Built on the WizMind 5 Series platform and powered by the Xinghan Large-Scale AI Models, this camera delivers 4K Ultra HD resolution with exceptional clarity. It features Smart Dual Light technology, which maintains discreet IR monitoring until a target is detected, at which point it switches to warm white light to capture full-color evidence. As an Active Deterrence model, it is equipped with a built-in siren and red/blue warning lights to warn off intruders instantly. With advanced AI functions like AcuPick, face detection, and perimeter protection, this vandal-proof (IK10) and weatherproof (IP67) camera is an all-in-one solution for mission-critical surveillance in both residential and commercial environments.

Technical Specifications

* Image Sensor: 1/1.8" 8-Megapixel Progressive Scan CMOS

* Max. Resolution: 3840 (H) × 2160 (V)

* RAM/ROM: 2 GB / 4 GB

* Lens Type: Fixed-focal 2.8 mm (M16 mount)

* Field of View (H): 109°; (V): 59°; (D): 131°

* Min. Illumination: 0.0004 lux @ F1.0 (Color); 0.0002 lux @ F1.0 (B/W); 0 lux (Illuminator on)

* Illumination: Smart Dual Light (IR + Warm Light)

* Illumination Distance: IR up to 60 m; Warm Light up to 50 m

* Wide Dynamic Range (WDR): 130 dB (True WDR)

* Intelligence: AcuPick, IVS (Perimeter Protection), Face Detection, People Counting, Video Metadata

* Active Deterrence: Red/Blue Light Warning, Built-in Siren, One-tap Arming/Disarming

* Audio: Built-in Dual Microphones; 1-ch Speaker; Two-way Talk support

* Alarm: 1 Channel Input, 1 Channel Output; RS-485 Support

* Protection: IP67 (Weatherproof), IK10 (Vandal-proof)

* Storage: Micro SD Card Slot (supports up to 1 TB)

* Power Supply: 12 VDC / PoE+ (802.3at) / ePoE

* Power Consumption: Max. 23.9 W (H.265 + warm light + siren + active deterrence)

Key Features

* Three-in-One Camera (TiOC): Combines 24/7 full-color monitoring, active deterrence (siren and lights), and high-accuracy AI into a single device for proactive security management.

* Xinghan AI Vision Models: Utilizes deep learning to provide superior object classification (human/vehicle), reducing false alarms and enabling rapid target searching via AcuPick technology.

* Smart Dual Light Technology: Automatically switches from IR to visible warm light upon detecting a target, ensuring high-quality color snapshots for identification while minimizing light pollution.

* Industrial-Grade Durability: Featuring an IK10 vandal-resistance rating and IP67 weatherproofing, the camera is designed to withstand physical impacts and extreme environmental conditions.
