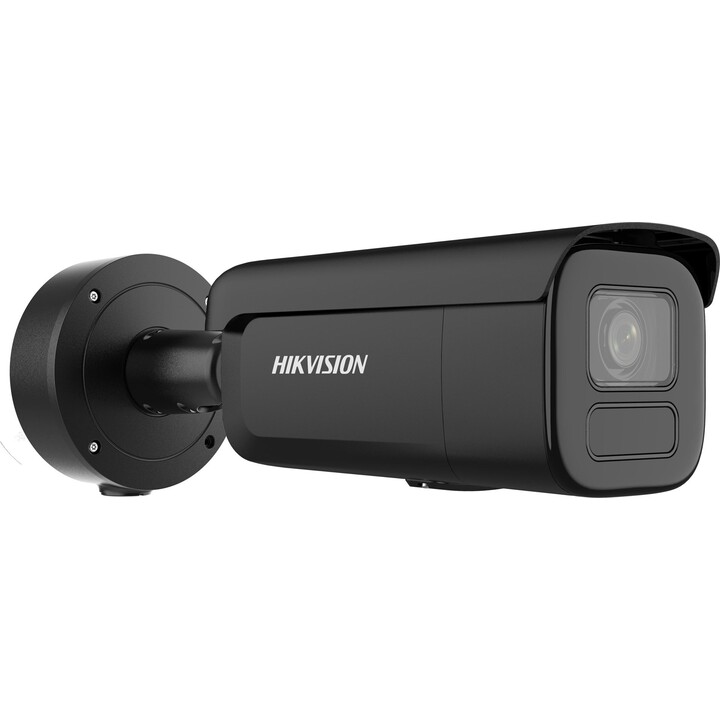

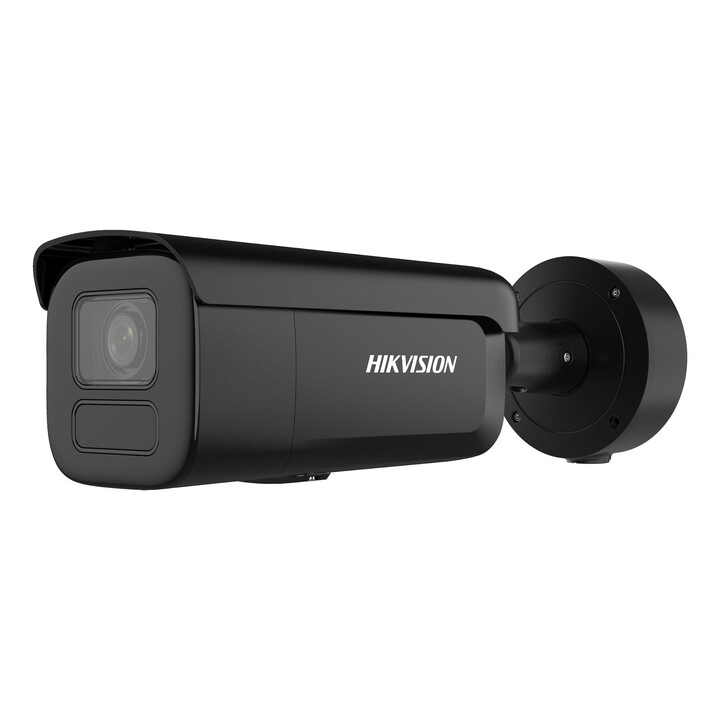

Hikvision DS-2CD2646G2H-IZS(2.8-12MM)/EF/BLK Bullet (Shaped) Surveillance Camera Outdoor IP Security Camera 2688 x 1520 Pixel
Reference:
DS-2CD2646G2H-IZS(2.8-12mm)e0001
EAN:
6936422134129
Condition:
New
Price:
€394.72
VAT included
Without tax:
€326.22
The Hikvision DS-2CD2646G2H-IZS is a high-performance outdoor bullet IP security camera featuring a 4 MP CMOS sensor with 2688 x 1520 resolution. It offers advanced video capabilities including 3D noise reduction, wide dynamic range, and smart IR for clear night vision up to 60 meters. Designed for durability with IP67 and IK10 ratings, it supports PoE power, multiple video compression formats, and intelligent video surveillance features like intrusion and face detection.
Other features
Input and output (I/O) ports
1x line in, 1x line out
Lens system
Observation distance (angular)
25.2 m
Detection distance (angular)
63.4 m
Detection distance (tele)
180.6 m
Recognition distance (angular)
12.7 m
Recognition distance (tele)
36.1 m
Observation distance (tele)
71.7 m
Identification distance (tele)
18.1 m
Identification distance (angular)
6.3 m
Maximum opening
1
Number of lenses
1
Focal length interval
2.8 - 12 mm
Performance
Number of languages
33
Supported languages
Multi
Infrared cut filter
Yeah
Guy
IP security camera
Dynamic range
120 dB
Entry/Exit Alarm
Yeah
Day/Night Mode
Yeah
Wide Dynamic Range (WDR)
Yeah
Supported placement
Abroad
Connectivity technology
Wired
Video
Video recording
Yeah
Image quality adjustment
Sharpness, Contrast, Brightness, Saturation
Total megapixels
4 MP
Supported graphic formats
640 x 360, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520
Privacy mask
Yeah
Noise reduction technology
3D Noise Reduction
Video compression formats
H.264, H.265+, H.265, M-JPEG, H.264+
Noise reduction
Yeah
Backlight compensation (BLC)
Yeah
Frame rate
30 pps
Smart IR
Yeah
Video broadcast
Yeah
Coding of regions of interest (ROI)
Yeah
High Beam Compensation (HLC)
Yeah
Bit rate
32 Kbps - 8 Mbps
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Maximum resolution
2688 x 1520 Pixels
Ports and Interfaces
Port terminal block
Yeah
Ethernet LAN (RJ-45) number of ports
1
Security
IP address filter
Yeah
Active tamper alarm
Yeah
Privacy protection
Yeah
Password protection
Yeah
HTTPS encryption
Yeah
Alert notification type
Email
Digital watermark
Yeah
Alarm input channels
1
Beat
Yeah
Alarm output channels
1
Password reset via email
Yeah
Classification of objectives as vehicles and people
Yeah
Audit log
Yeah
Network Attached Storage (NAS)
Yeah
Pixel counter
Yeah
Automatic Network Replenishment (ANR)
Yeah
Summary Authentication
Yeah
Supported security algorithms
EAP-MD5, EAP-LEAP, EAP-TLS
Features of the intelligent video surveillance system (IVS)
Scene changes, Face detection
Video motion detection
Yeah
Mirror
Yeah
Connection
Bluetooth
No
Ethernet
Yeah
Network standards
IEEE 802.3af
Ethernet interface type
Fast Ethernet
Live view
Yeah
User access level
Administrator, Operator, User
Number of simultaneous live viewing channels
6 channels
Wifi
No
Quality of Service (QoS) support
Yeah
Interoperability with the client
iVMS-4200, Hik-Connect, Hik-Central
Number of users
32 user(s)
Weight and dimensions
Weight
1.49 kg
Diameter
14 cm
Length
333.8 mm
Storage media
Integrated card reader
Yeah
Compatible memory cards
MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Maximum memory card size
512 GB
Built-in HDD
No
Packaging
Package depth
190 mm
Package width
385 mm
Package weight
2.35 kg
Package height
180 mm
Environmental conditions
Operating temperature range
-30 - 60 °C
Storage temperature range
-30 - 60 °C
Relative humidity range during storage
0 - 95%
Relative humidity range for operation
0 - 95%
Design
Housing material
Metal
IP Code (International Protection)
IP67
Mounting type
Ceiling/wall
Form factor
Bullet (shape)
IK code
IK10
Product color
Black
Protection functions
Vandal-proof, Water-resistant, Dustproof
Energy control
Feeding
CC, PoE
Energy consumption (max)
18 W
Power consumption (Power over Ethernet, PoE)
14.5 W
DC output voltage
12
DC output amperage
1.21 A
Image sensor
Sensor type
CMOS
Number of sensors
1
Optical sensor size
25.4 / 3 mm (1 / 3")
Progressive scanning
Yeah
Night vision
Infrared wavelength
850 nm
Night vision distance
60 m
LED type
GO
Night vision
Yeah
Management features
Behavioral analysis
Intrusion detection, Line crossing detection, Zone entry detection, Region exiting detection
Restore button
Yeah
Web-based administration
Yeah
Camera
Lens viewing angle, horizontal
105.4 - 34.3 Ω
Number of privacy masking zones
4
Lens viewing angle, diagonal
125.8 - 39.4 Ω
Lens viewing angle, vertical
56.1 - 19.3 Ω
Minimum lighting
0 lx
Tray reach
0 - 360 Ω
Shutter speed
1/3 - 1/100000 s
Angle of inclination
0 - 90 Ω
Rotation angle
360 Ω
Sustainability
Certificates of conformity
Electromagnetic Compatibility (EMC), Industry Canada (IC), RCM, CB, REACH, CE, RoHS, WEEE, Low Voltage Directive (LVD)
Audio
Bit transfer rate range
8 - 320 Kbit/s
Sampling frequencies
8 - 48 kHz
Supported audio formats
G.711, MP3, MP2L2, G.711 ?-law, G.726, G.722.1, PCM, AAC-LC, G.711 A-law
Audio output channels
1.0 channels
Audio input channels
1.0 channels
Signal-to-noise ratio (SNR)
52 dB
Package contents
Number of cameras
1
-
Brand
-
ReferenceDS-2CD2646G2H-IZS(2.8-12mm)e0001
-
In stock17 Items
-
ConditionNew
-
EAN136936422134129
-
MPNDS-2CD2646G2H-IZS(2.8-12mm)e0001
-
ColorBlack
| Brand | HikVision |
|---|---|
| Country | China |
| Address of origin | No. 555 Qianmo Road, Distrito Binjiang, Hangzhou, Zhejiang 31005 |
| EU responsible person | Hikvision Europe B.V. |
| Address | Willem Einthovenstraat 5, Hoofddorp, Netherlands, 2342 BH |
| [email protected] | |
| Phone | 31235657200 |
