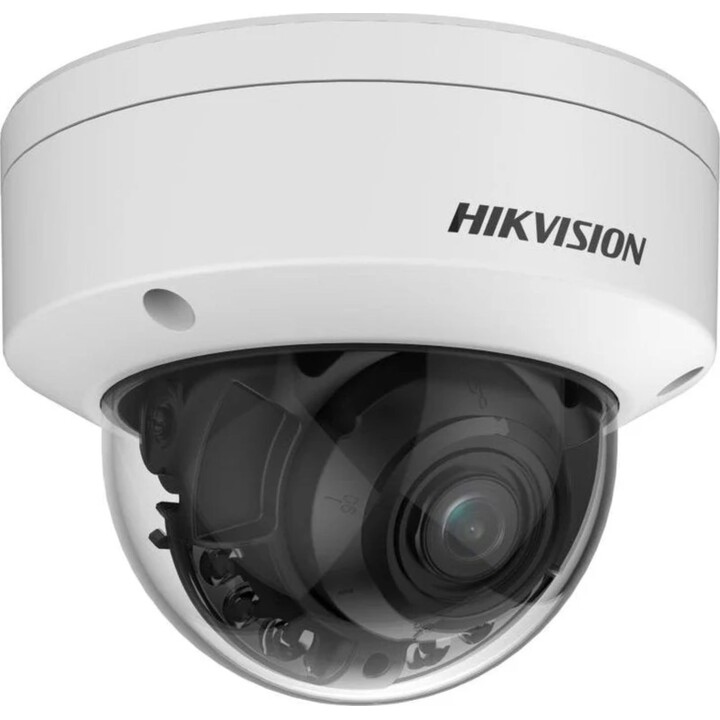

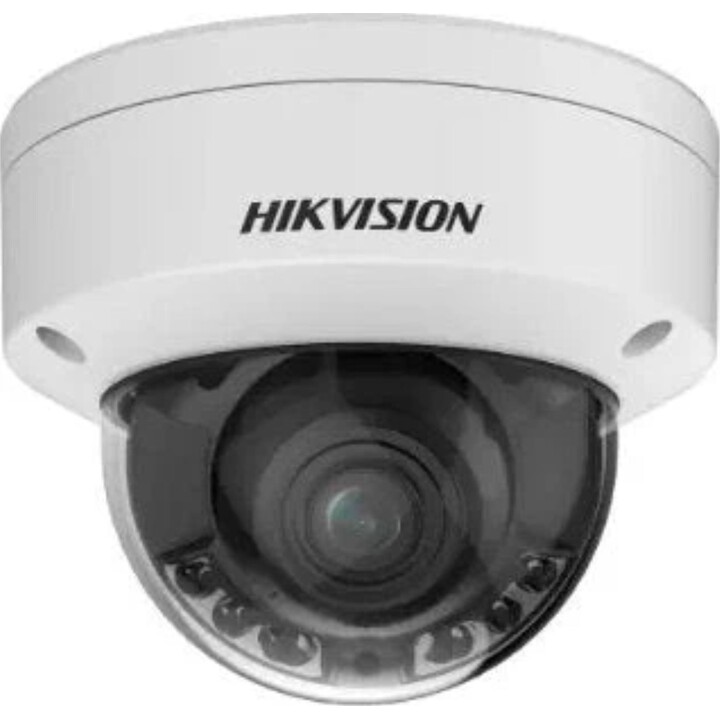

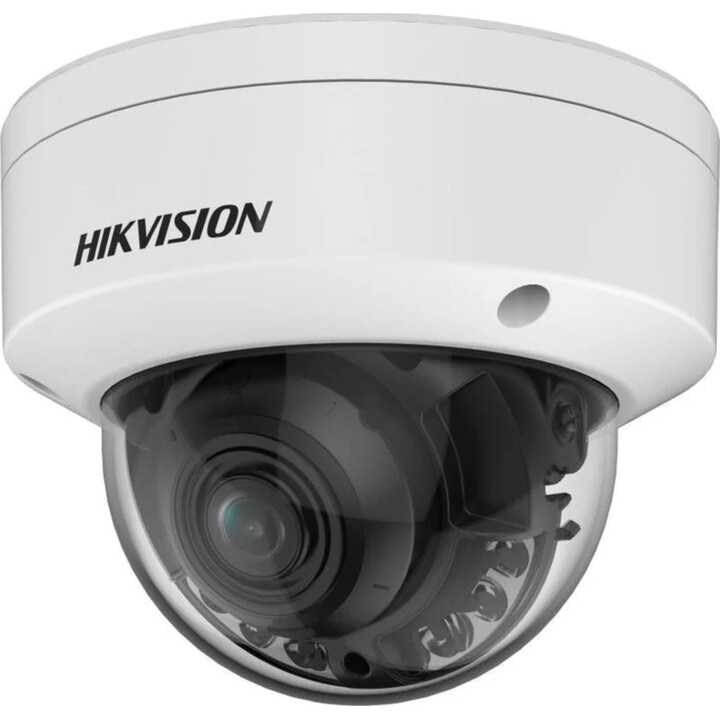

IP CAMERA: HIKVISION DS-2CD2747G2HT-LIZS(2.8-12mm)(eF)

Description

Hikvision DS-2CD2747G2HT-LIZS(2.8-12mm)(eF)(O-STD) Turret IP Security Camera Indoor and outdoor 2688 x 1520 pixels Ceiling

Hikvision DS-2CD2747G2HT-LIZS(2.8-12mm)(eF)(O-STD), IP Security Camera, Indoor & Outdoor, Wired, Multi, 130 dB, Ceiling

Key product points

Indoor and outdoor IP security camera

CMOS 25,4 / 1,8 mm (1 / 1.8") 4 MP 2688 x 1520 Pixeles

Almbrico Ethernet

Night vision 40 m IR

Turret Roof Dust Resistant, Water Resistant

IP67 IK10

White

820 g

Performance

Type: IP Security Camera

Supported placement: Indoor and outdoor

Connectivity Technology: Wired

Wide Dynamic Range (WDR): Yes

Day/Night Mode: Yes

Infrared cut filter: Yes

Entry/exit alarm: Yes

Integrated light: Yes

Number of languages: 33

Support languages: Multi

Dynamic range: 130 dB

Design

Form factor: Turret

Mounting Type: Ceiling

Product color: White

Housing material: Metal

Protection features: Dustproof, Waterproof

IP (International Protection) Code: IP67

IK Code: IK10

Camera

Minimum illumination: 0 lx

Rotation angle: 355 Ω

Lens angle of view, horizontal: 114.6 - 41.8 Ω

Lens angle of view, vertical: 59.3 - 23.6 Ω

Lens angle of view, diagonal: 141.3 - 48.1 Ω

Tilt angle: 0 - 75 Ω

Pan Range: 0 - 355 Ω

Shutter speed: 1/3 - 1/100000 s

Number of privacy masking zones: 4

Image sensor

Number of sensors: 1

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")

Progressive Scan: Yes

Sensor type: CMOS

Lens system

Number of lenses: 1

Focal length range: 2.8 - 12 mm

Maximum aperture: 1.2

Detection distance (angular): 60 m

Detection distance (tele): 149 m

Observation distance (angular): 23.8 m

Viewing distance (tele): 59.1 m

Recognition distance (angular): 12 m

Recognition distance (tele): 29.8 m

Identification distance (angular): 6 m

Identification distance (tele): 14.9 m

Night vision

Night vision: Yes

Night vision distance: 40 m

LED Type: IR

Infrared wavelength: 850 nm

Video

Maximum resolution: 2688 x 1520 pixels

Total megapixels: 4 MP

Video compression formats: H.264, H.264+, H.265, H.265+, M-JPEG

Supported graphics formats: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520

Frame rate: 30 fps

Video streaming: Yes

Noise reduction: Yes

Noise reduction technology: 3D noise reduction

Image quality adjustment: Brightness, Contrast, Saturation, Sharpness

Privacy Mask: Yes

Control de tasa de bits: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate: 32 Kbps - 8 Mbps

Backlight Compensation (BLC): Yes

High Beam Compensation (HLC): Yes

Region of Interest (ROI) Encoding: Yes

Audio

Audio input channels: 1.0 channels

Audio output channels: 1.0 channels

Supported audio formats: AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM

Signal-to-noise ratio (SNR): 52 dB

Built-in microphone: Yes

Bit rate range: 8 - 320 Kbit/s

Sampling frequencies: 8 - 48 kHz

Connection

Ethernet: Si

Ethernet interface type: Fast Ethernet

Protocolos de red compatibles: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Wifi: No

Bluetooth: No

Number of users: 32 user(s)

User access level: Administrator, Operator, User

Quality of Service (QoS) support: Yes

Client Interoperability: iVMS-4200, Hik-Connect, Hik-Central

Live view: Yes

Number of simultaneous live viewing channels: 6 channels

Storage media

Built-in HDD: No

Integrated reading card: Yes

Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Maximum memory card size: 512 GB

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 1

Terminal block port: Yes

Security

Alarm input channels: 1

Alarm output channels: 1

Password protection: Yes

Motion detection in video: Yes

Active tamper alarm: Yes

IP Address Filter: Yes

Supported security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS

HTTPS Encryption: Yes

Privacy Protection: Yes

Heartbeat: Yes

Mirror: Yes

Digital watermark: Yes

Password reset by email: Yes

Pixel counter: Yes

Target classification as vehicles and people: Yes

Audit log: Yes

Automatic Network Replenishment (ANR): Yes

Digest Authentication: Yes

Network Attached Storage (NAS): Yes

Management Features

Web-based administration: Yes

Restore button: Yes

Behavioral Analysis: Intrusion Detection, Line Crossing Detection, Region Entry Detection, Region Exiting Detection

Power control

Power supply: DC, PoE

Power consumption (max): 10.5 W

Power consumption (Power over Ethernet, PoE): 12.5 W

DC output voltage: 12

DC output amperage: 0.88 A

Environmental conditions

Operating temperature range: -30 - 60 °C

Storage temperature range: -30 - 60 °C

Relative humidity range for operation: 0 - 95%

Relative humidity range during storage: 0 - 95%

Weight and dimensions

Height: 112 mm

Diameter: 14.1 cm

Weight: 820 g

Packaging

Package width: 244 mm

Package depth: 174 mm

Package height: 173 mm

Package weight: 1.2 kg

Sustainability

Sustainability compliance: Yes

Certificates of conformity: CB, CE, KC, RoHS

Package contents

Number of cameras: 1

Technical details

Iris: Yes
