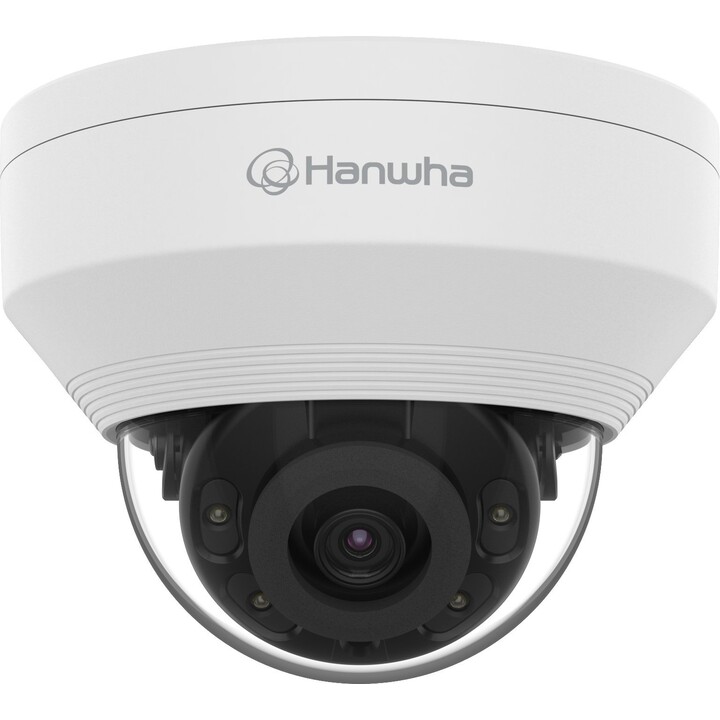

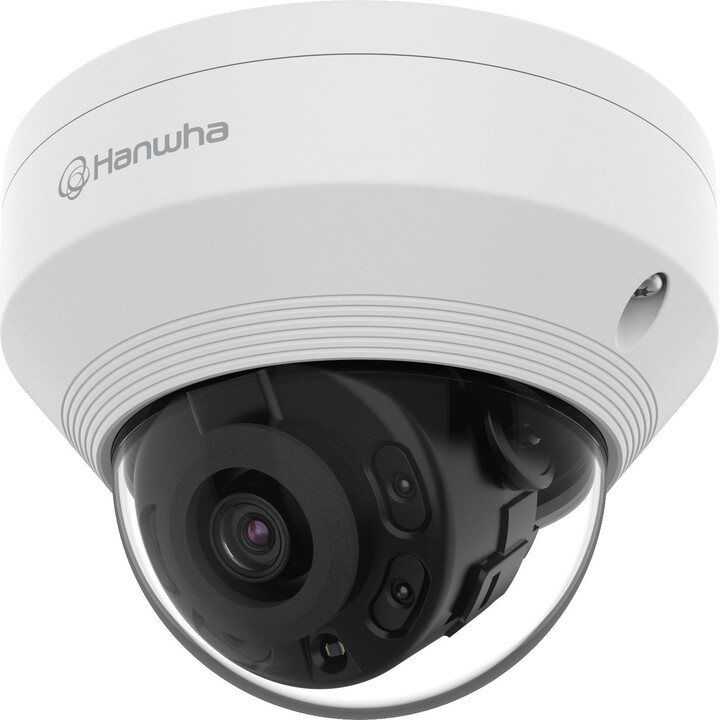

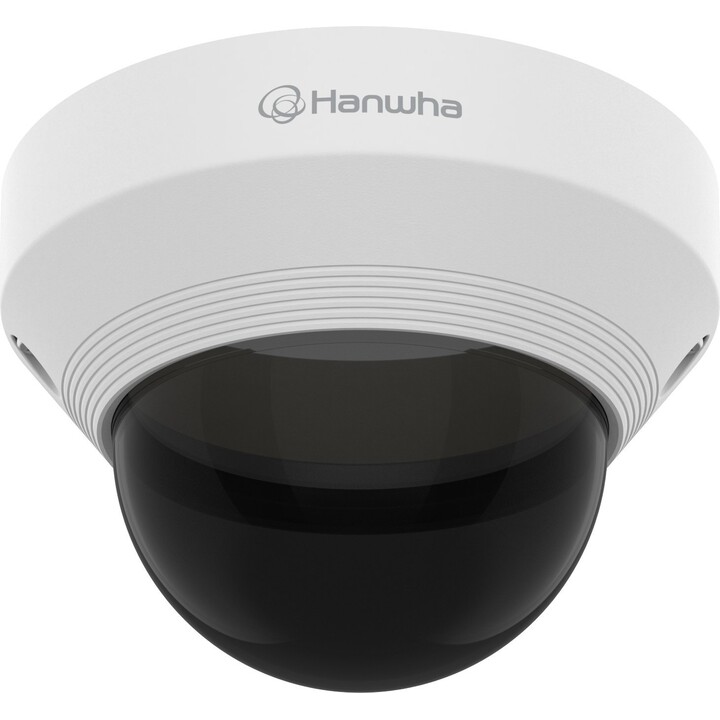

Hanwha QNV-8010R 5MP IR Dome 2.8mm H.265 WDR PoE IP66 IK10 20m IR white 510g

Hanwha Vision Q Series 5MP Network IR Vandal Dome Camera (QNV-8010R)

The Hanwha Techwin QNV-8010R is a 5-megapixel high-definition outdoor network dome camera designed to provide clear and effective surveillance in various lighting conditions. Part of the economical Q series, this camera features a fixed wide-angle 2.8 mm lens, offering a broad field of view ideal for monitoring large areas. It is equipped with built-in IR LEDs that ensure visibility up to 20 meters in total darkness. The QNV-8010R uses advanced H.265 compression and WiseStream II technology to significantly reduce bandwidth and storage requirements without compromising image quality. Designed for outdoor use, it is housed in a weather-resistant IP66-rated and vandal-resistant IK10-rated enclosure. Additionally, it includes intelligent video analytics features such as defocus detection, directional detection, and motion detection, making it a robust entry-level solution for retail, banking, and residential security.

Technical Specifications

* Image sensor: 1/2.8" 5MP CMOS

* Resolution: 2592 x 1944 (5 megapixels)

* Lens: Fixed 2.8 mm lens

* Angular field of view: H: 104.4° / V: 76.7° / D: 136.1°

* Day and night: Auto (ICR)

* IR viewing distance: 20m (66ft)

* Compression: H.265, H.264, MJPEG

* Bandwidth optimization: WiseStream II

* Video analytics: Defocus detection, directional detection, motion detection, input/output, tampering

* Storage: MicroSD/SDHC/SDXC slot (up to 128 GB)

* Power supply: PoE (IEEE802.3af, Class 3) or 12V DC

* Protection: IP66 (weather-resistant), IK10 (vandal-resistant)

* Dimensions: Ø120.3 x 91.7 mm (Ø4.74 x 3.61 in)

Main Features

* 5MP High-Resolution Imaging: Provides a higher level of detail than standard 1080p cameras, allowing better identification of faces and license plates, even when zooming in on recorded footage.

* Intelligent WiseStream II: An exclusive compression technology that dynamically manages encoding, balancing image quality and compression based on scene movement, saving up to 75% on storage.

* Corridor View: Supports 9:16 aspect ratio rotation, perfect for monitoring narrow areas such as corridors or aisles, maximizing vertical coverage and reducing wasted space on side walls.

* Wide Dynamic Range (120 dB WDR): Ensures balanced images in high-contrast lighting environments, such as building entrances where sunlight meets dark interiors.

* Lens Distortion Correction (LDC): Automatically compensates for the "fisheye" effect typically associated with wide-angle lenses, providing a more natural and accurate image.
