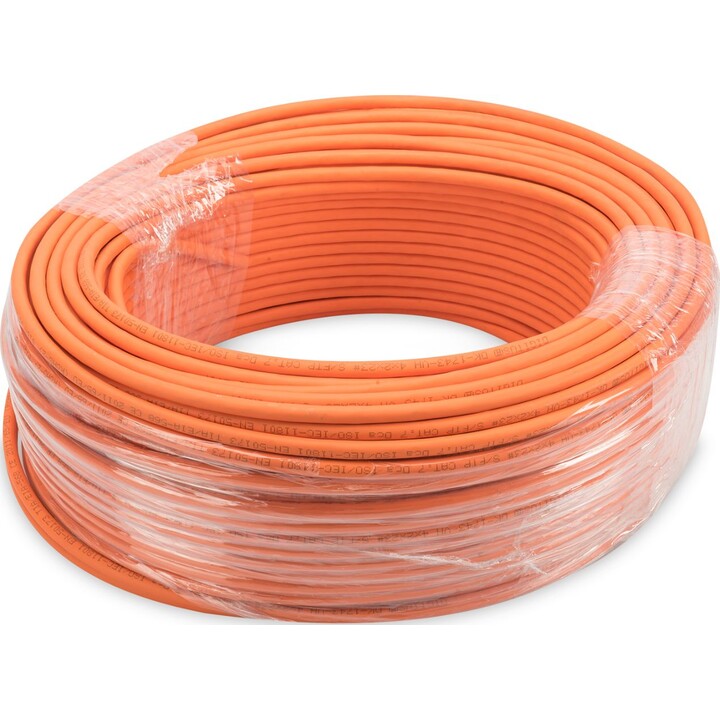

Digitus CAT 7 S-FTP Data Cable - Installation Cable, 1200 MHz DCA (EN 50575), AWG 23/1, 100 m Ring, Sx, Orange

Description

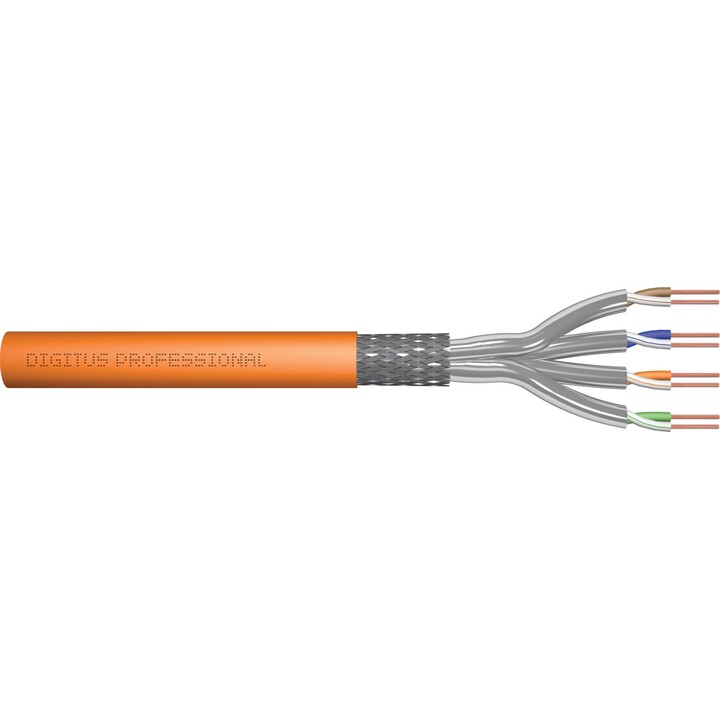

The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling, compliant with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, and EN 50288-9-1. The cable is ideal for analog and digital data transmission and supports PoE, PoE+, and 4PPoE (IEEE 802.3af, 3at, and 3bt). The shielding structure consists of individually shielded pairs with a tinned copper braid, ensuring excellent shielding and electrical performance.

Technical data

• Physical properties:
• Conductor: bare copper wire, AWG 23/1
• Performance consistency assessment and verification system(s): System 3
• Insulation: SFS-PE (foamed polyethylene cover)
• Total number of insulated conductors: 8, twisted into 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Shielding of individual pairs: aluminum laminated polyester film, covers 100%.
• General shielding: copper braiding
• Outer cover: Dca-s2,d1,a1 according to EN 50575; LSZH
• Mechanical properties:
• Tension relief: 150N max.
• Dynamic radius of curvature: 8x AD mm min.
• Static radius of curvature: 4x AD mm min.
• Transport and storage temperature: -20 °C to +60 °C
• Operating temperature: -20 °C to +50 °C
• Installation temperature range: 0 °C to +50 °C
• Electrical properties:
• Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600MHz
• Capacitance: 45 pF/m nominal @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC Resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
• Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
• Operating voltage: 72 Vdc max.
• Coupling attenuation: AC-Type 1b
• Phase delay: 450 nS/100 m max.
• Timing: 10 nS/100 m max.
• Separation class: "d" according to EN 50174-2
• NVP: 79%
• Flame dispersion: EN 60332-1-2 (LSOH-PVC)
• Halogen-free, corrosivity: EN 60754-1/2 (LSOH)
• Smoke density: EN 61034-2

Attributes

• Range: Twisted pair installation cables
• Category: CAT 7
• Shielding: S-FTP, shielded pairs with metal foil and braiding
• CPR: Dca
• Length: 100 m
• Orange
• Wrapping: LSOH
• Structure: 4 x 2 AWG 23/1, solid twisted pair
