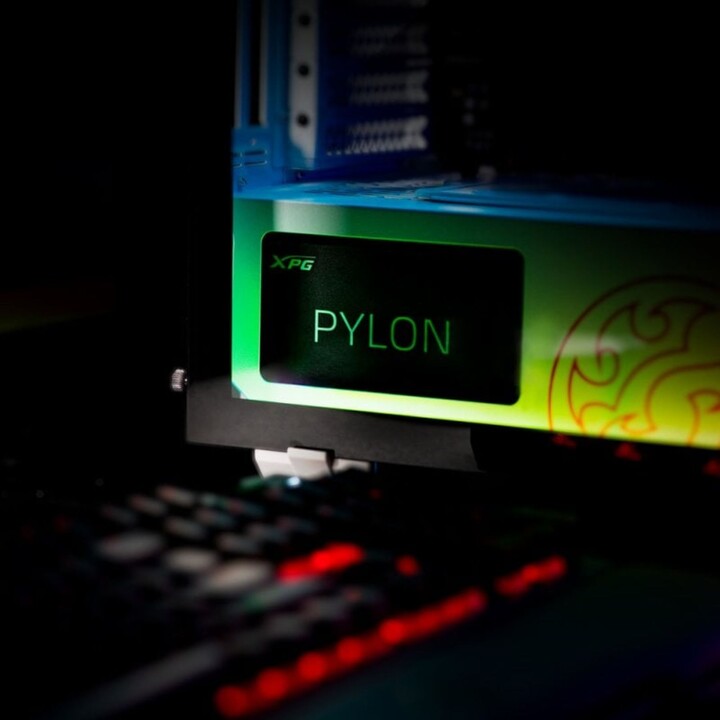

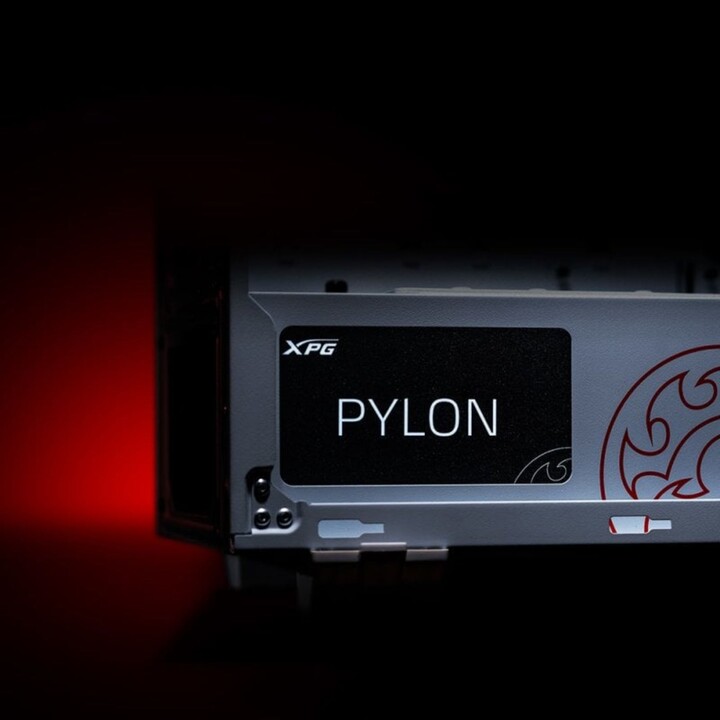

Adata XPG Pylon 650W 80 Plus Bronze Power Supply

About the product

XPG PYLON offers more than just a Bronze-certified power supply . Its highly efficient DC-DC converters and continuous power output in four different power settings make it an ideal power supply for any application.

Bronze Grade DC-DC Circuit

The XPG PYLON power supply complies with the Intel ATX Power Supply Design Guide's sleep mode function, delivering 100% full +12V DC-to-DC power(*) across all PYLON series. This ensures consistent, efficient power delivery capable of supporting mid-range to high-end CPUs and graphics cards. (*) The DC-to-DC circuit minimizes ripple noise, prevents unbalanced power loading, and acts as a protective measure to extend the lifespan of your PC components.

80 Plus Bronze Certification

The XPG PYLON is an 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50%, and 100% of rated loads. The XPG PYLON power supply also complies with ErP 2014 Lot 3 regulations and is designed for continuous, uninterrupted 24/7 operation of the power system.

Cybenetics ETA and LAMBDA Certifications

The XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, ranking at the top of its category in both the ETA and LAMBDA standards.

120mm Hydraulic Bearing Fan (FDB)

The integrated 120 mm hydraulic bearing fan (FDB) control starts at approximately 700 rpm (25°C ambient temperature) and maintains its low fan speed up to approximately 70% of the power load. This keeps the operating environment quiet and efficient, and extends the fan's lifespan.

Japanese main condenser at 105 °C

The XPG PYLON Bronze series Japanese 105°C main capacitor ensures great durability and offers the highest stability and reliability.

Characteristics

• DC to DC Converters
• 80PLUS BRONZE Certification
• Continuous power supply for uninterrupted system operation (24/7)
• 120mm FDB Silent Fan Performance
• Compatibility with high current +12V rail system
• Japanese main capacitor
• Several 6+2 pin PCI-E 2.0 connectors
• Industrial level protection: OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP
• Compliant with ErP 2014 Batch 3
• RoHS compliant

Specs

• Energy control
  • Total power: 650 W
  • AC input voltage: 100 - 240 V
  • AC input frequency: 50/60 Hz
  • Input current: 10/5 A
  • Power factor: 0.99
  • Power factor correction type (PFC): Active
  • Combined power (3.3 V): 110 W
  • Combined power (+12 V): 648 W
  • Combined power (+5 V): 110 W
  • Combined power (-12V): 3.6 W
  • Combined power (+5 VSB): 12.5 W
  • Maximum output current (+3.3V): 20 A
  • Maximum output current (+12V): 54 A
  • Maximum output current (+5V): 20 A
  • Maximum output current (-12V): 0.3 A
  • Maximum output current (+5Vsb): 2.5 A
  • Power protection functions: Overcurrent, Overvoltage, Overheating, Short circuit, Undervoltage

• Ports and Interfaces
  • Motherboard power supply: 24-pin ATX
  • Number of SATA power connectors: 8
  • Peripheral (Molex) power connectors (4 pin): 1
  • EPS power connector (4+4 pin): Yes
  • PCI Express power connectors (6 + 2 pin): 4
  • ATX power connector (24-pin): Yes

• Performance
  • 80 PLUS Certification: 80 PLUS Bronze
  • Use with: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 2.4
  • Bearing technology: FDB
  • Mean time between failures: 100,000 h
  • Certification: CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC

• Design
  • Product color: Black
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 Fan(s)

• Weight and dimensions
  • Width: 140 mm
  • Depth: 150 mm
  • Height: 86 mm

• Packaging
  • Cables included: Alternating current

• Technical details
  • Sustainability compliance: Yes
  • Sustainability certifications: ErP, RoHS
