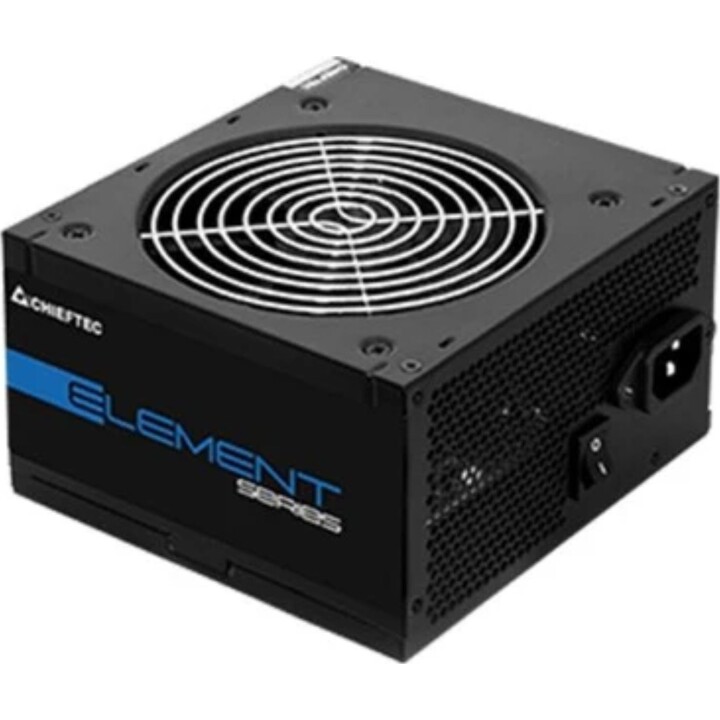

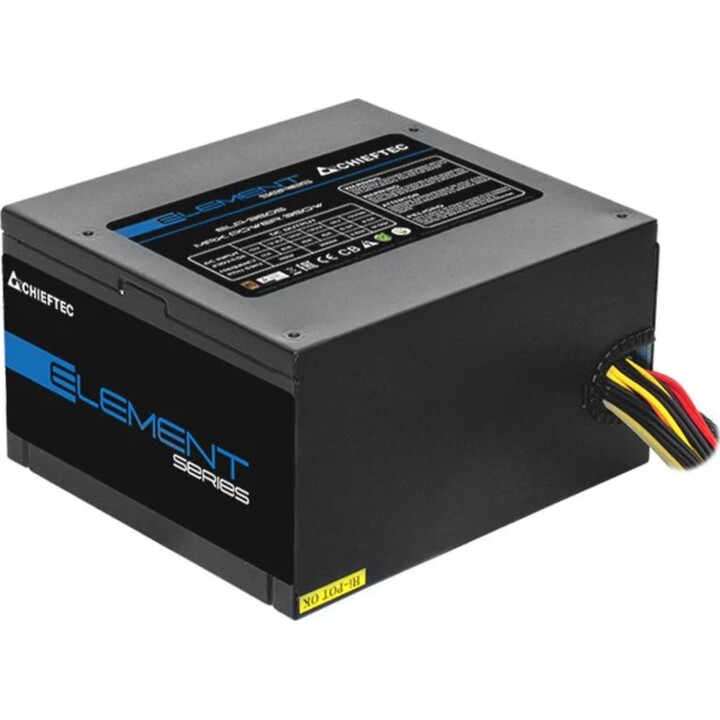

Chieftec ELP-700S power supply unit 700 W 20+4 pin ATX PS/2 Black

Description

Chieftec ELP-700S Power Supply Unit 700 W 20+4 Pin ATX PS/2 Black

Chieftec ELP-700S, 700 W, 200 - 240 V, 47 - 63 Hz, 5 A, Active, 130 W

Key product points

700 W 200 - 240 V 47 - 63 Hz

Motherboard power supply: 20+4 pin ATX

PC PS/2 80 PLUS Bronze

Active 12 cm

Black

Power control

Total power: 700 W

AC input voltage: 200 - 240 V

AC input frequency: 47 - 63 Hz

Input current: 5 A

Power factor: 0.9

Power Factor Correction (PFC) Type: Active

Combined power (3.3V): 130W

Combined power (+12 V): 648 W

Combined power (+5 V): 130 W

Combined power (-12V): 3.6 W

Combined power (+5 VSB): 12.5 W

Maximum output current (+3.3V): 22 A

Maximum output current (+12V): 54 A

Maximum output current (+5V): 22 A

Maximum output current (+5Vsb): 2.5 A

Efficiency: 85%

Power protection functions: Overvoltage, Overvoltage, Short circuit, Undervoltage

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Motherboard power cable length: 65 cm

Number of SATA power connectors: 6

SATA power cable length: 150,500 mm

EPS power connector (4+4 pins): Yes

PCI Express Power Connectors (6+2 pin): 1

Floppy disk drive connector: Yes

PCI Express Connector: Yes

Wiring Type: Non-modular

Performance

80 PLUS Certification: 80 PLUS Bronze

Supported motherboard form factors: ATX

Use with: PC

Power Supply (PSU) Form Factor: PS/2

ATX version: 2.3

Design

Product color: Black

Cooling Type: Active

Fan diameter: 12 cm

Number of fans: 1 Fan(s)

Integrated on/off switch: Yes

Regulatory approvals

Certificates of conformity: CB, CE, EAC, RoHS

Weight and dimensions

Width: 140 mm

Depth: 150 mm

Height: 86 mm

Weight: 1.65 kg

Packaging

Package weight: 1.9 kg

Packaging Type: Box
