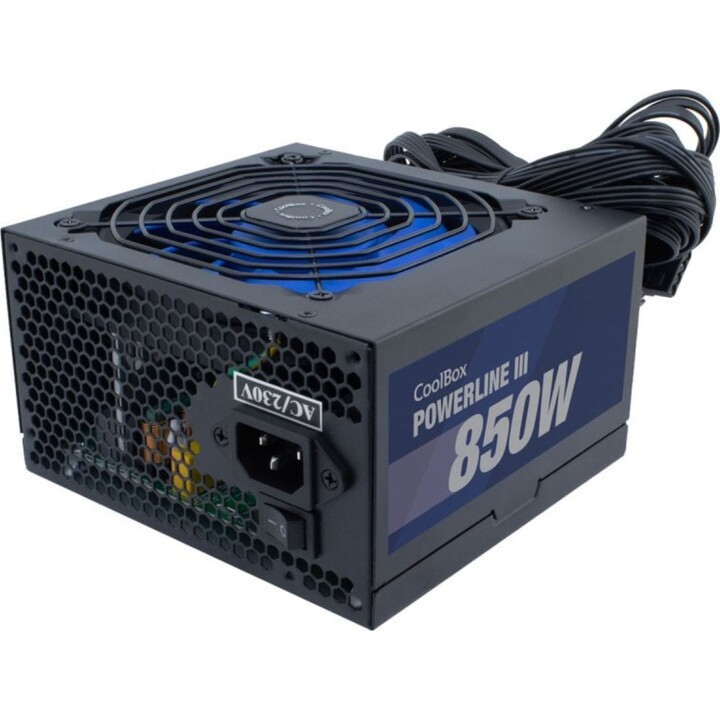

Coolbox Powerline 3 Power Supply, 850W Efficiency 85%

Designed in ATX format according to the Intel ATX12V v2.31 specification and available in various wattages, the CoolBox PowerLine Black power supplies stand out for their quality, reliability, and 85% efficiency (at 50% load) . Featuring a black chassis and flat cables for easy installation and improved airflow within the PC, they include a quiet, 120mm thermostatically controlled fan.

PowerLine 3 850W Specifications

• Type:  ATX 12V
• Power:  850W max
• Efficiency:  85% (at 50% load), ? 80% (at 100% load)
• Specification:  Compliant with Intel ATX12V specification
• Technology:  DC-DC conversion technology for maximum efficiency and stability
• Filter:  1 x EMI Grade Filter
• PFC:  active (>0.9)
• Fan:  120mm silent fan with adjustable speed (thermoregulated)
• Protection:  OPP / OVP / UVP / SCP
• Waiting time:  >16ms
• PG signal:  100-500ms
• MTBF:  > 60,000 hours
• Environmental conditions of use:  temperature 0 ~ 50ºC, humidity 20% ~ 90% non-condensing
• Connectors
  • 1 x ATX 20+4 pin main connector
  • 2 x 12V 8-pin connector (4+4)
  • 2 x PCIe 6+2 pin connector
  • 6 x SATA Power Connector
  • 2 x Molex HDD Connector
