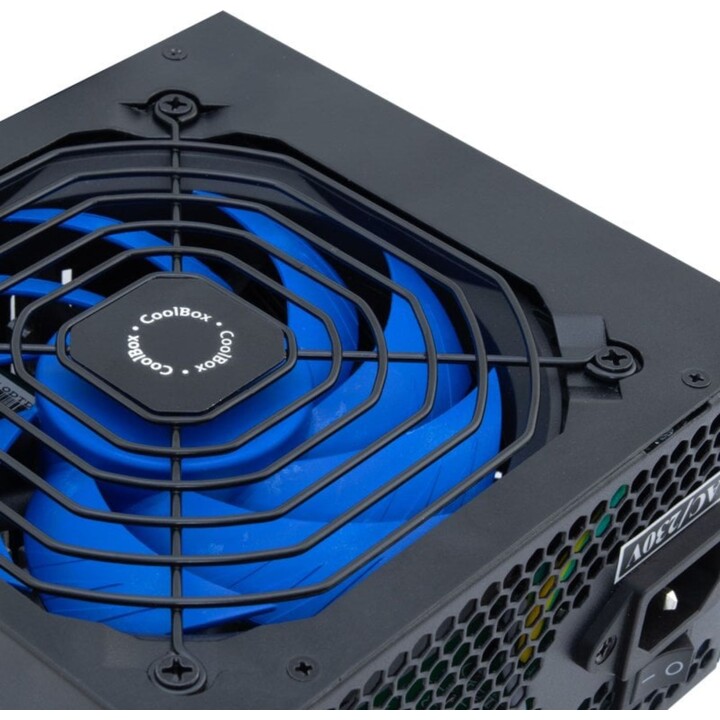

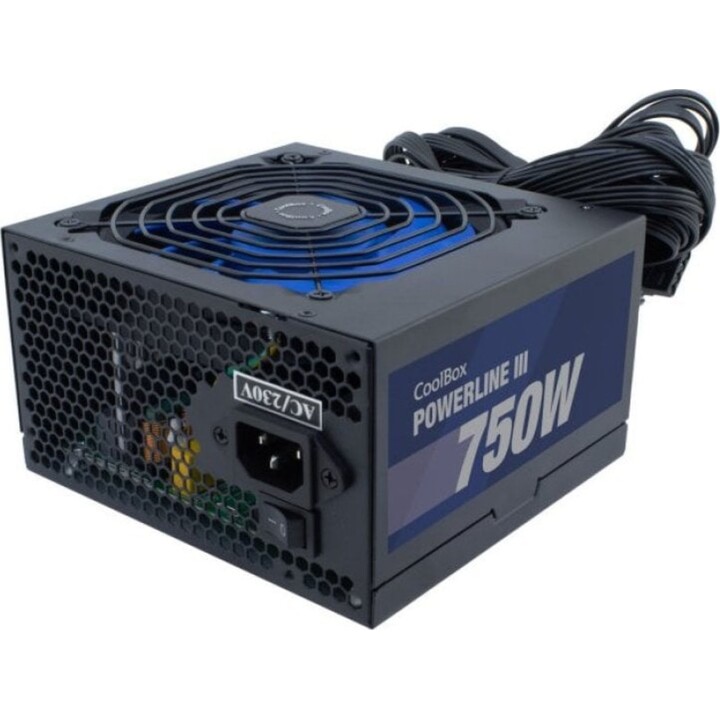

Coolbox Powerline III 750W Power Supply, 85% Efficiency

Designed in ATX format according to the Intel ATX12V v2.31 specification and available in various wattages, the CoolBox PowerLine Black power supplies stand out for their quality, reliability, and 85% efficiency (at 50% load) . Featuring a black chassis and flat cables for easy installation and improved airflow within the PC, they include a quiet, 120mm thermostatically controlled fan.

PowerLine 3 750W Specifications

• Type:  ATX 12V
• Power:  750W max
• Efficiency:  85% (at 50% load), ? 80% (at 100% load)
• Specification:  Compliant with Intel ATX12V v2.31 specification
• Technology:  DC-DC conversion technology for maximum efficiency and stability
• Filter:  1 x EMI Grade Filter
• PFC:  active (>0.9)
• Fan:  120mm silent fan with a rotation speed of 690~1760 rpm
• Protection:  OPP / OVP / UVP / SCP
• Waiting time:  >16ms
• PG signal:  100-500ms
• MTBF:  > 60,000 hours
• Environmental conditions of use:  temperature 0 ~ 50ºC, humidity 20% ~ 90% non-condensing
• Connectors
  • 1 x ATX 20+4 pin main connector
  • 1 x 12V 8-pin connector (4+4)
  • 2 x PCIe 6+2 pin connector
  • 6 x SATA Power Connector
  • 2 x Molex HDD Connector
