Power Supply 500W Coolbox 3Sata 8Cm Tfx

Description

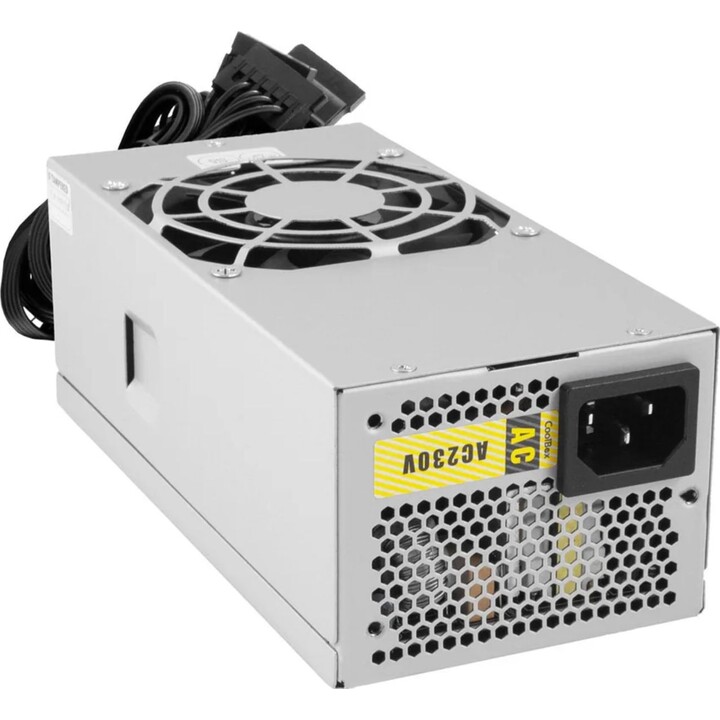

CoolBox BASIC500GR-T 500W 20+4 pin ATX TFX Power Supply Grey

TFX BASIC500GR-T Power Supply

CoolBox BASIC500GR-T power supply with support for Intel “Haswell” processors, 12V single rail technology, thermally controlled fan speed for optimal cooling and quiet operation, and OCP, OVP and SCP protections.

Key product points

Form Factor: TFX

Power: 500W

Fan: 8cm thermoregulated

Protections: OCP, OVP and SCP

Temperature: 0ºC ~ 50ºC

Humidity: 10% ~ 85% (relative)

Compatibility: EPS1U (2.1) and Intel TFX12V v2.3

MTBF: 100,000 hours

Dimensions: 85 x 65 x 175 mm

Weight: 750 grams

Power control

Total power: 500 W

AC input voltage: 230 V

AC input frequency: 50 Hz

Input current: 2.5 A

Maximum output current (+3.3V): 22 A

Maximum output current (+12 V1): 26 A

Maximum output current (+5V): 22 A

Maximum output current (-12V): 0.5 A

Maximum output current (+5Vsb): 2.5 A

Power protection functions: Overcurrent, Overvoltage, Short circuit

Ports and Interfaces

Motherboard power supply: 20+4 pin ATX

Number of SATA power connectors: 3

Peripheral power connectors (4 pin) (Molex): 1

CPU P4 connector (4-pin): 1

ATX power connector (20 + 4 pin): Yes

Floppy power connector: 1

Floppy disk drive connector: Yes

Wiring Type: Non-modular

Performance

Use with: PC

Power Supply (PSU) Form Factor: TFX

Mean time between failures: 100,000 h

Design

Product color: Gray

Cooling Type: Active

Fan diameter: 8 cm

Fan Location: Top

Environmental conditions

Operating temperature range: 0 - 50°C

Relative humidity range for operation: 10 - 85%

Weight and dimensions

Width: 85 mm

Depth: 175 mm

Height: 65 mm

Weight: 750 g

Packaging

User Manual: Yes
