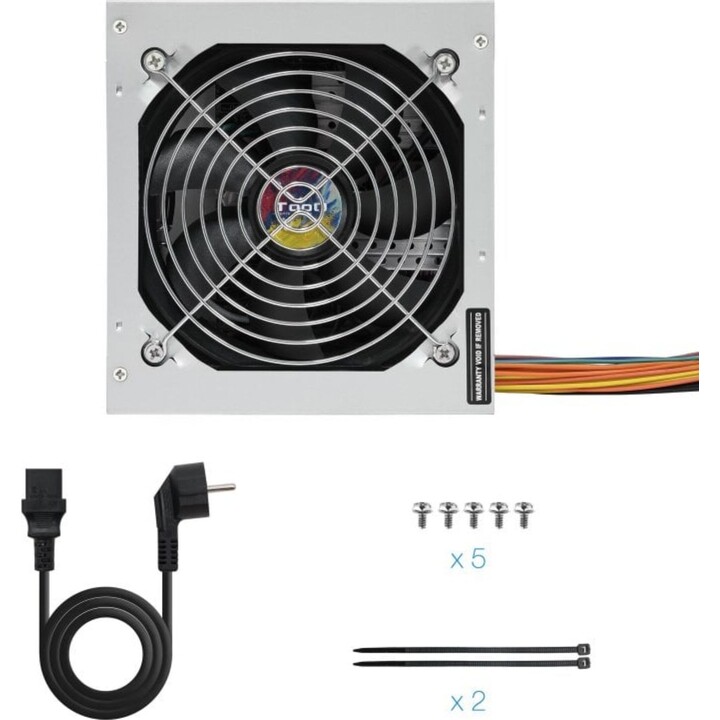

TooQ TQAPOLO-500SP 500W Active PFC Power Supply

The TooQ TQAPOLO is a 500W ATX power supply with Active PFC, an efficiency of over 78%, and a quiet 120mm fan.

Characteristics

• Power: 500 W (Efficiency>78%)
• Active PFC
• ATX 12V V1.3 Type
• Safety +: OCP, OVP, UVP, SCP, OPP, OTP
• Silent 120mm fan with automatic speed control
• Rails: 1x +12V

Specs

• Energy control
  • Total power: 500 W
  • AC input voltage: 220 V
  • AC input frequency: 50/60 Hz
  • Input current: 2.5 - 5 A
  • Power factor correction type (PFC): Active
  • Maximum output current (+3.3V): 28 A
  • Maximum output current (+12V): 22 A
  • Maximum output current (+5V): 30 A
  • Maximum output current (-12V): 0.5 A
  • Maximum output current (+5Vsb): 3 A
  • Power protection functions: Overcurrent, Overvoltage, Overheating, Short circuit, Undervoltage

• Ports and Interfaces

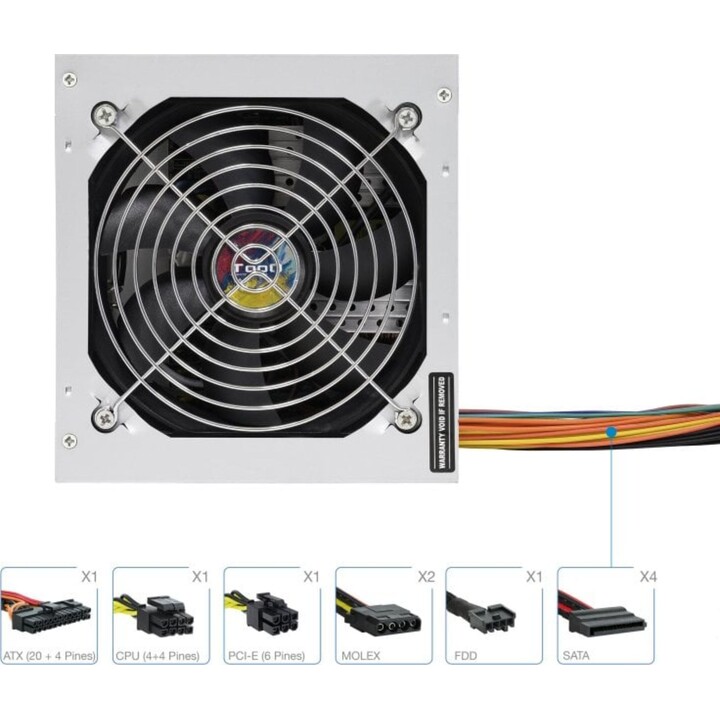

  • Motherboard power supply: 20+4 pin ATX
  • Motherboard power cable length: 40 cm
  • Number of SATA power connectors: 4
  • SATA power cable length: 400, 550 mm
  • Peripheral power connectors (4 pin) (Molex): 2
  • Peripheral power cable length (Molex): 400,550 mm
  • EPS power connector (4+4 pin): Yes
  • PCI Express Power Connectors (6-pin): 1
  • PCI Express power cable length: 40 cm
  • CPU power connector (4 + 4 pins): Yes
  • CPU power cable length: 40 cm
  • Floppy power connector: 1
  • Floppy disk drive connector: Yes
  • Floppy disk drive cable length: 70 cm
  • PCI Express Connector: Yes

• Performance
  • 80 PLUS Certification: No
  • Use with: PC
  • Power supply unit (PSU) form factor: ATX
  • ATX version: 1.3

• Design
  • Product color: Silver
  • Cooling type: Active
  • Fan diameter: 12 cm
  • Number of fans: 1 Fan(s)
  • Fan location: Top
  • Integrated on/off switch: Yes

• Package contents
  • Cables included: Alternating current

• Weight and dimensions
  • Width: 150 mm
  • Depth: 140 mm
  • Height: 85 mm

• Packaging
  • Package width: 228 mm
  • Package depth: 159 mm
  • Package height: 100 mm
  • Packaging type: Box
