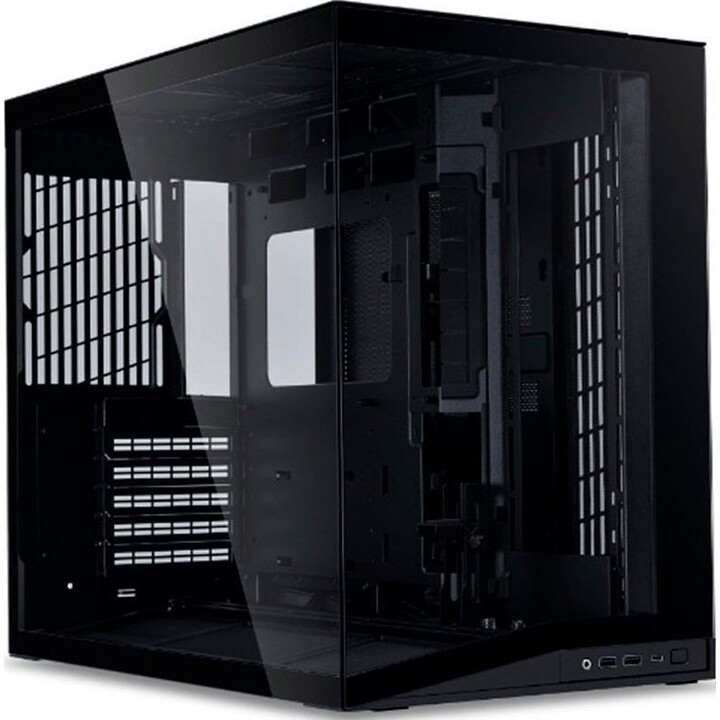

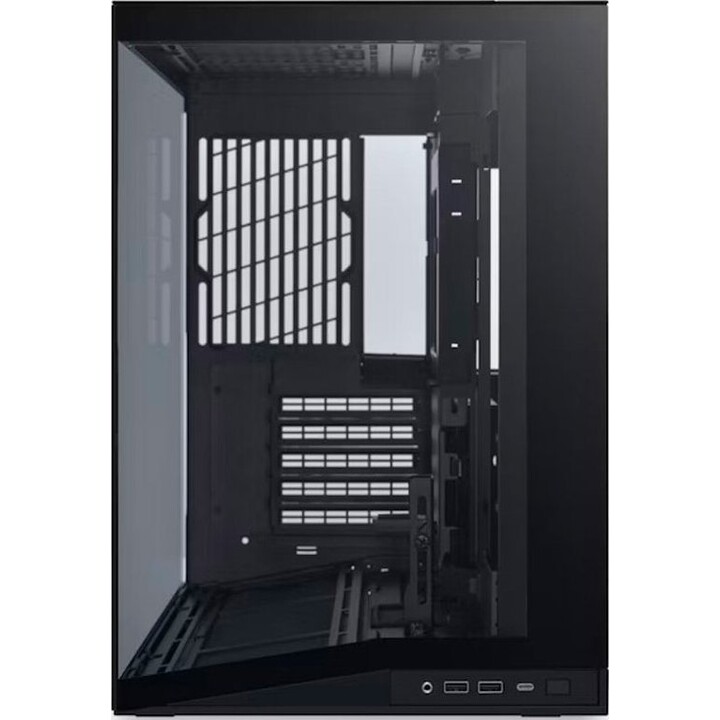

Lian Li O11 Dynamic Mini v2 ATX Case

Design and Construction

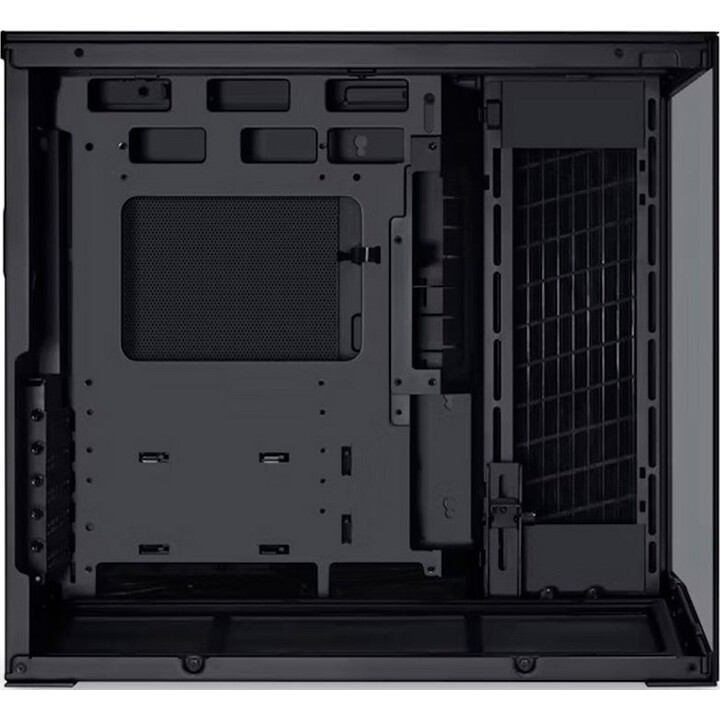

Black aluminium/steel chassis (423.6 x 273.3 x 391.95 mm, ~11 kg) with 2 x 4 mm tempered glass panels, magnetic dust filters, modular I/O panel (front/top) and 52 mm wide rear chamber for vertical ATX cabling/PSU up to 200 mm. Includes vertical GPU support (without riser).

Component Compatibility

ATX (280 mm width max.)/Micro-ATX/Mini-ITX/BTF boards, GPUs 400 mm (52-72 mm thickness), CPU coolers 160 mm, storage: 2x 3.5"/2.5" + 2x 2.5". Radiators: top 360/280/240 mm, side 240 mm.

Cooling and Ventilation

Reverse fans included (Flow version: 5x 120 mm PWM 300-1700 RPM). Positions: bottom 3x 120 mm, side 2x 120 mm, top 3x 120/2x 140 mm, rear 1x 120 mm.

Front Panel and Connectivity

1x USB-C 3.2 Gen2, 2x USB-A 3.2 Gen1, 3.5 mm TRRS audio combo. 5 horizontal slots (switchable 4 vertical).
