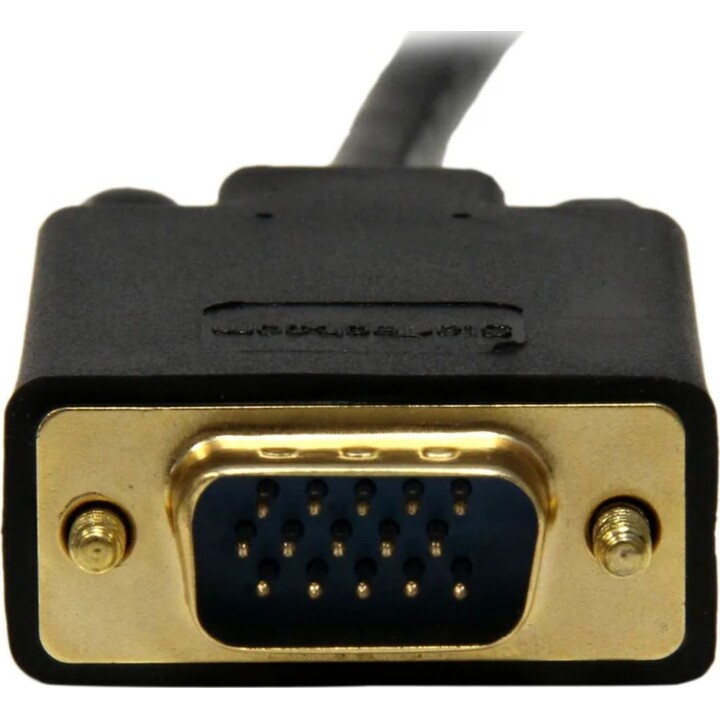

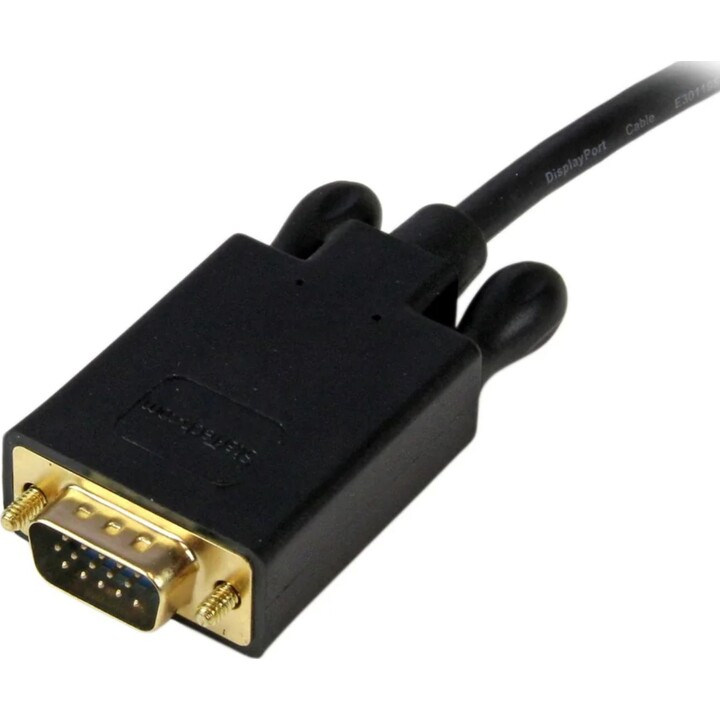

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cab

StarTech DP2VGAMM6B VGA (D-Sub) Video Cable Adapter Black

Description

Connect a DisplayPort-equipped PC to a VGA monitor/projector with a 6-foot cable.

The DP2VGAMM6B Active DisplayPort to VGA Converter Cable (1.8 meters) lets you connect a DisplayPort-equipped desktop or laptop computer directly to a VGA monitor or projector without any additional adapters or cables - providing a cost-effective solution that lets you use a new DisplayPort-equipped computer with a legacy VGA monitor or projector.

Plus, the converter cable supports video resolutions up to 1920x1200, allowing you to convert a DisplayPort video source to VGA without sacrificing video quality.

Key Product Points

DisplayPort to VGA Cable: The 1.8m DP 1.2 HBR2 adapter cable allows you to connect a single VGA display supporting 2048×1280, 1920×1200, and 1920×1080 (1080p) at 60Hz; EDID and DDC pass-through ensures compatibility between source and display.

Compatibility: The active digital-to-analog converter is compatible with DP or DP++ sources with a standard DP connector, including workstations, desktops (AMD/Nvidia), notebooks, small form factor computers, and docking stations.

Integrated Display Cable: The adapter cable features a slim, flexible design with an adapter chip integrated into the VGA connector, reducing clutter and providing a tidy installation at your office or home workstation.

DisplayPort with Latch and VGA with Screw Lock: The latching DP connector ensures a solid connection with the host, and the built-in chip in the VGA connector minimizes signal loss / Supports VGA screw lock cable.

Easy to Use: No software or drivers required, the DP to VGA video converter cable works with any operating system such as macOS, Windows and Ubuntu / DP source to VGA monitor/display/projector / DisplayPort Male to VGA Male Cable.

Characteristics

Feature Value

Connector Form Factor 1: Straight

Connector Form Factor 2: Straight

Cable length: 1.8 m

Connector 1: DisplayPort

Connector 2: VGA (D-Sub)

Connector 1 Gender: Male

Connector 2 Gender: Male

DisplayPort version: 1.2

Maximum resolution: 2048×1280 pixels

Supported graphics formats: 1920×1080 (HD 1080), 1920×1200 (WUXGA), 2048×1280

Supported video format: 1080p

Maximum refresh rate: 60 Hz

HBR2 Support: Yes

Product color: Black

Integrated circuit: Analogix - 9832

Plug and Play: Yes

Converter Type: Active Video Converter

Environmental Conditions

Operating temperature range: 0−60 ºC

Storage temperature range: −10−70 ºC

Relative humidity range for operation: 40−85%

Regulatory Approvals

Certificates of conformity: CE, RoHS

Weight and Dimensions

Weight: 103.67 g

Width: 35 mm

Depth: 1840 mm

Height: 15 mm

Packaging

Package width: 195 mm

Package depth: 220 mm

Package height: 20 mm

Package weight: 128 g

Quantity per package: 1 piece(s)
