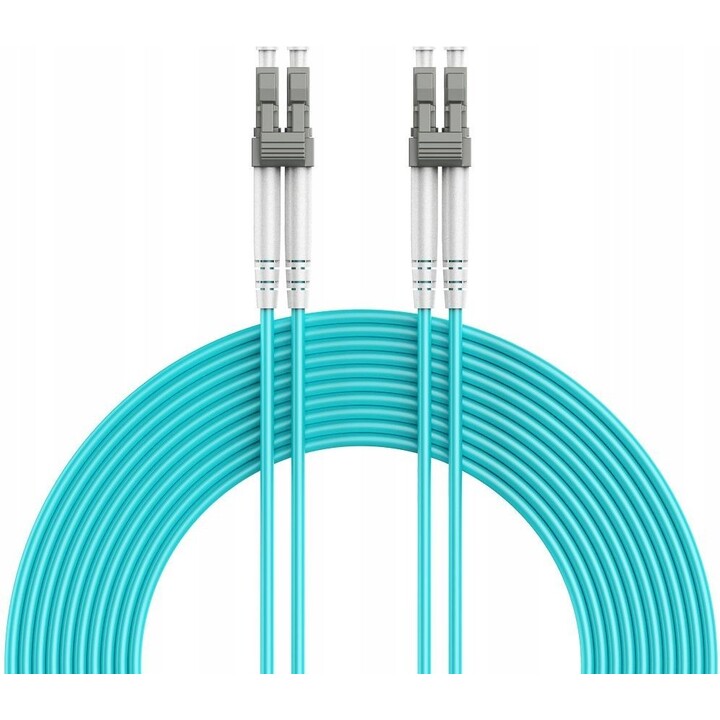

Multimode cable duplex OM4 50/125,LC/LC, 20m

This GEMBIRD OM4 multimode duplex fiber optic patch cable is designed for high-speed data transmission in demanding network environments. With a 50/125 µm fiber core and LC/UPC connectors on both ends, it delivers reliable performance for 10G, 40G and 100G applications. The 20-meter length provides flexible installation options in data centers, server rooms and enterprise networks.

Engineered for minimal signal loss, the cable features an insertion loss of ≤0.3 dB and a return loss of ≥20 dB. It operates at 850 nm and 1300 nm wavelengths, with attenuation of 3.0 dB/km at 850 nm and 1.0 dB/km at 1300 nm. The duplex configuration supports simultaneous bidirectional data flow, making it ideal for high-density cabling systems.

The turquoise LSZH (Low Smoke Zero Halogen) jacket ensures safety in case of fire, reducing toxic smoke emission. With an operating temperature range of -20°C to 60°C, this cable is suitable for various indoor environments. It has passed pull-in and pull-out tests (1000 times) with less than 0.3 dB variation, ensuring long-term reliability.

Características principales

• OM4 multimode fiber, 50/125 µm core/cladding diameter
• Duplex transmission with LC/UPC connectors on both ends
• Supports network speeds: 1 Gb/s, 10 Gb/s, 25 Gb/s, 40 Gb/s, 100 Gb/s
• Insertion loss ≤0.3 dB, return loss ≥20 dB
• Wavelength: 850/1300 nm; attenuation: 3.0 dB/km @850 nm, 1.0 dB/km @1300 nm
• LSZH fire rating, turquoise color
• Operating temperature: -20°C to 60°C
• Pull-in/pull-out tested 1000 times with <0.3 dB variation

Especificaciones técnicas

Preguntas frecuentes

What network speeds does this cable support?

It supports 1 Gb/s, 10 Gb/s, 25 Gb/s, 40 Gb/s and 100 Gb/s Ethernet, making it suitable for high-speed data center and enterprise network applications.

What is the difference between OM4 and other multimode fibers?

OM4 is a laser-optimized multimode fiber with a 50/125 µm core, designed for higher bandwidth and longer distances compared to OM1, OM2 and OM3. It is ideal for 10G, 40G and 100G transmissions.

Is this cable suitable for outdoor use?

No, this cable is designed for indoor use. Its operating temperature range is -20°C to 60°C, and the LSZH jacket is intended for indoor environments where low smoke and halogen-free properties are required.

What connectors does it have?

It features LC/UPC connectors on both ends, which are small form factor connectors commonly used in high-density fiber optic patch panels and switches.

Es para ti si...

• Necesitas una conexión de fibra óptica multimodo de alta velocidad para tu red de datos.
• Buscas un cable duradero y seguro con cubierta LSZH para entornos interiores.
• Requieres una longitud de 20 metros para conectar equipos en racks o armarios de comunicaciones.
• Valoras bajas pérdidas de inserción y retorno para garantizar la integridad de la señal.
