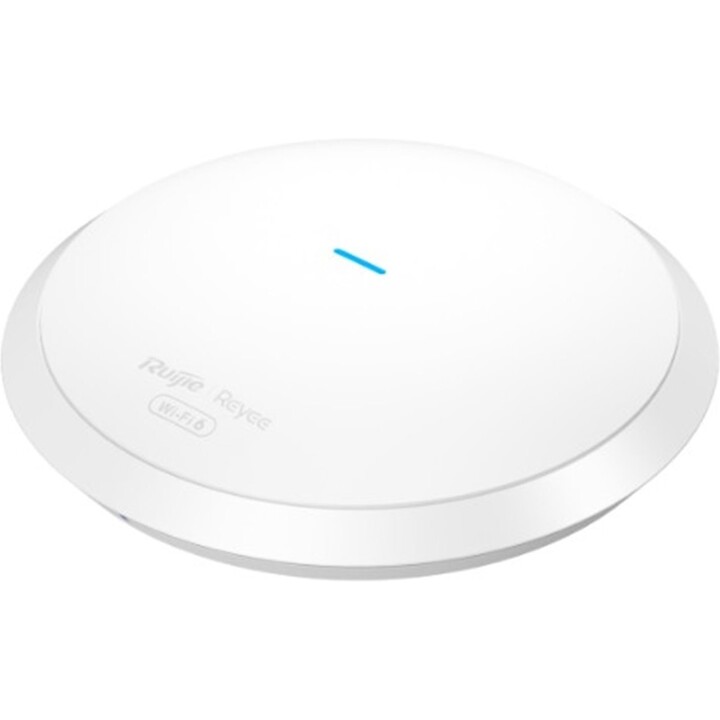

Ruijie RG-RAP62AX1800 1201Mbps 5GHz 1GB Passive PoE Indoor WiFi Access Point, Ceiling Mount

Wi-Fi Performance 6

• Maximum speed: AX1800 (573 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz) with 2x2 MU-MIMO on both bands.

• Internal high gain omni-directional antennas (≈4-5 dBi), covering up to 125 m² per AP with optimised indoor penetration.

• Technologies: OFDMA, 1024-QAM, BSS Coloring and AI optimisation (WIO) to reduce interference and latency in congested environments.

Connectivity and Power

• Port: 1 x Gigabit Ethernet (10/100/1000 Mbps) with passive PoE (48 V, max. 12 W), compatible with standard Ruijie Reyee injectors/switches.

• Support up to 512 simultaneous clients (110 recommended), ideal for classrooms, hotels or shops with many IoT/mobile devices.

Management and security

• Free management via Ruijie Cloud, Reyee Router app or local web interface; supports multiple SSIDs (up to 8), VLANs and captive portal.

• Security: WPA3, client isolation, MAC filtering and L2/L3 roaming (802.11k/v/r) for seamless transitions in mesh networks.

• Modes: standalone AP, mesh or extender, self-optimising channels and power.

Design and installation

• Compact ceiling format: Ø160 x 35 mm, weight <500 g, unobtrusive white design without fan (silent).

• Operating temperature: 0 °C to +40 °C, including quick mounting bracket with magnetic alignment.
