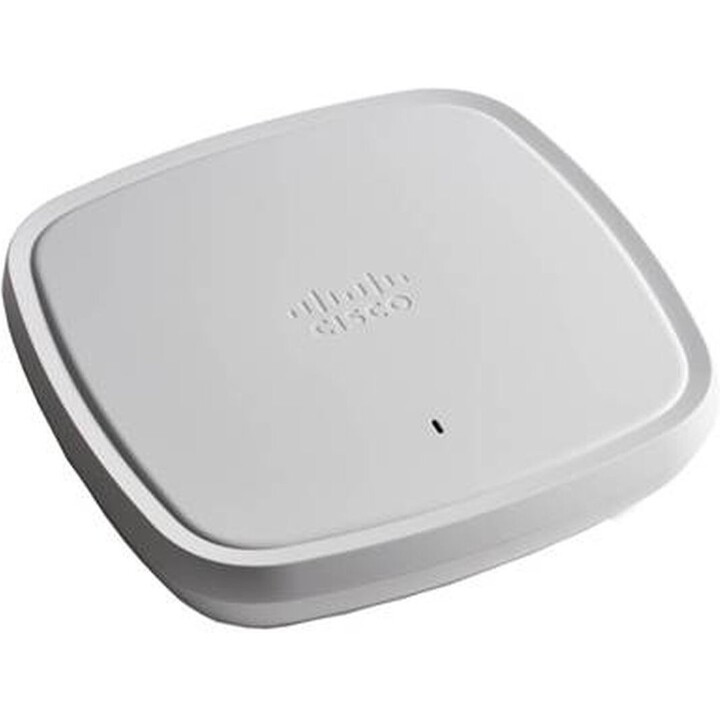

Cisco Catalyst 9120 Access Point

Key technical features:

• Wi-Fi 6 (802.11ax) Dual Band: simultaneous 2.4 GHz and 5 GHz, with "Dual 5GHz config" option (two radios on 5 GHz).

• 4x4:4 MU-MIMO per radio, combined speeds up to 5.38 Gbps.

• Internal omnidirectional antenna, robust design for enterprise use.

• OFDMA, BSS coloring, Target Wake Time (TWT), MU-MIMO uplink/downlink.

• Integrated IoT radio: Bluetooth 5.0 and Zigbee for IoT/Smart Building applications.

• Cisco CleanAir technology with RF ASIC for spectral analysis and interference mitigation.

• Advanced security: WPA3, WPA2, 802.1x support, EAP-FAST/EAP-SIM authentication, AES/PEAP/TTLS/TLS/FIPS encryption.

• One 1/2.5G multi-gigabit Ethernet port (RJ45) with PoE/UPOE support (Power over Ethernet), plus one USB 2.0 port for extension.

• Supports centralized Wi-Fi management (Cisco Wireless Controllers and Cisco DNA Center) and Embedded Wireless Controller (EWC) mode for standalone control.

• Dimensions: 21.6 x 21.6 x 4.3 cm; weight: 1.3 kg.

• Operating temperature: 0°C to 50°C; humidity 10-90% non-condensing.
