1x FE PoE-Repeater POR-0200 PoE

Description

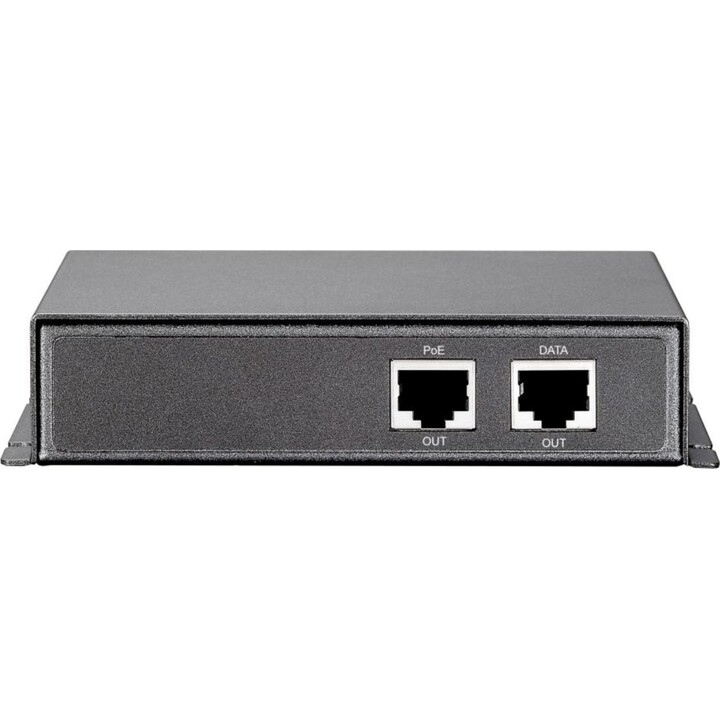

LevelOne POR-0200 Network Extender Network Repeater Black

- Compliant with High Power Midspan PoE support to simplify deployment and installation

- Built-in 2-out ports for 1 PoE and 1 non-PoE devices

- Forwards Power over Ethernet (802.3af/at PoE) to the remote device

- Extends PoE connection by another 100 meters

- Multiple PoE repeaters can be deployed in a chain to extend the reach

- Simple Plug and Play installation, no additional power supply required

Key product points

Network repeater 200 m

10/100Base-T(X)

Mounting Type: Wall Power over Ethernet (PoE)

Negro

Performance

Type: Network repeater

Maximum transfer distance: 200 m

Connection

Cabling technology: 10/100Base-T(X)

Network standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Ports and Interfaces

Ethernet LAN (RJ-45) ports: 3

Number of Power over Ethernet (PoE) ports: 2

Design

Product color: Black

Mounting Type: Wall

LED Indicators: PoE, Power

Country of origin: Taiwan

Certification: FCC Part 15, CE

Power control

Power consumption (max): 2.5 W

Power over Ethernet (PoE): Yes

Power over Ethernet (PoE) voltage range: 44 - 57 V

Environmental conditions

Operating temperature range: 0 - 50 °C

Storage temperature range: 0 - 70 °C

Relative humidity range for operation: 5 - 95%

Relative humidity range during storage: 5 - 95%

Weight and dimensions

Ancho: 130 mm

Depth: 90 mm

Height: 28 mm

Weight: 400 g

Package contents

Quick Setup Guide: Yes

Packaging

Packaging Type: Box

Package width: 146 mm

Package depth: 222 mm

Package height: 78 mm

Package weight: 600 g

Regulatory approvals

Certificates of conformity: RoHS
