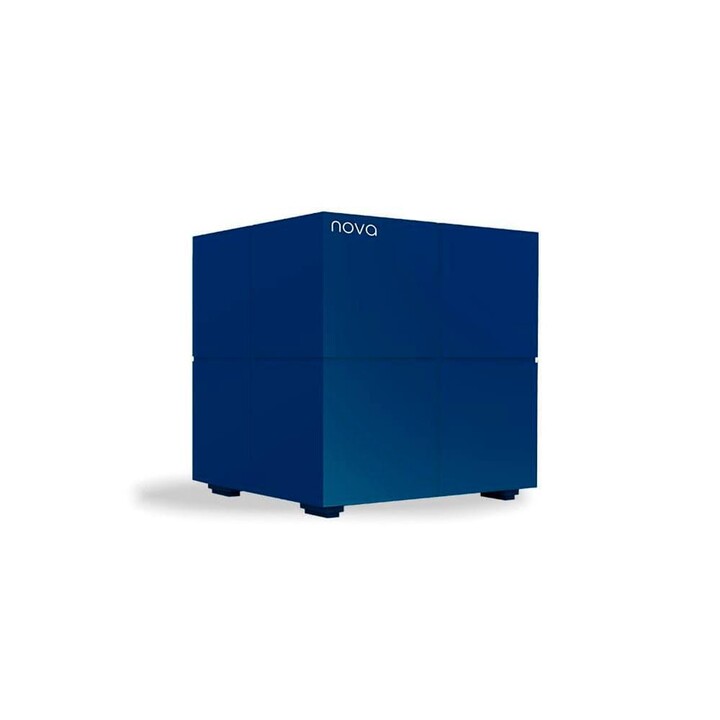

TENDA Nova MW6 Wifi Access Point / Blue Cube / MW6S

Hardware

Standard&Protocol

IEEE802.11a/b/g/n/ac

IEEE 802.3, IEEE 802.3u, IEEE 802.4ab

Ethernet Interface

2 RJ45 ports of 10/100/1000 Mbps per node

Antenna

2 internal antennas

Button

1 reset button

Power

Input: 100-240 V, 50/60 Hz

0.6 A, Output: 12V1A

Dimension

100 x 100 x 100mm

LED Indicator

1 x Tricolor LED

indicator (green, yellow, red)

Wireless

Wireless Standard

IEEE802.11a/b/g/n/ac (WiFi 5 wave 2)

Wireless roaming

IEEE802.11k / v / r

Mesh network Standard

IEEE802.11s

Rate

2.4GHz: 300Mbps

5GHz: 867Mbps

Frequency

2.4~2.4835GHz

5.15~5.25GHz

5.725~5.85GHz

Transmission Power

CE:

<20dBm(2.4G)

<23dBm(5G)

Basic Features

SSID

BeamForming

MU-MIMO

Dynamic WiFi

Band Steering

Wireless Security

WPA-PSK / WPA2-PSK(Default)

Software

Operating Mode

Router Mode, Bridge Mode

Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia), L2TP(Russia)

DHCP Server

DHCP Server, DHCP Client List

Virtual Server

Port Forwarding, UPnP

Parental Control

IP & WEB Address Filtering

TCP/UDP

Firewall

VPN

PPTP/L2TP/IPsec

DNS

Manual DNS Server Setup

Special Features

QoS mode for gaming, streaming and downloading

Others

Auto-sensing Internet connection

Remote Management via APP

Guest Network

Online Firmware Upgrade
