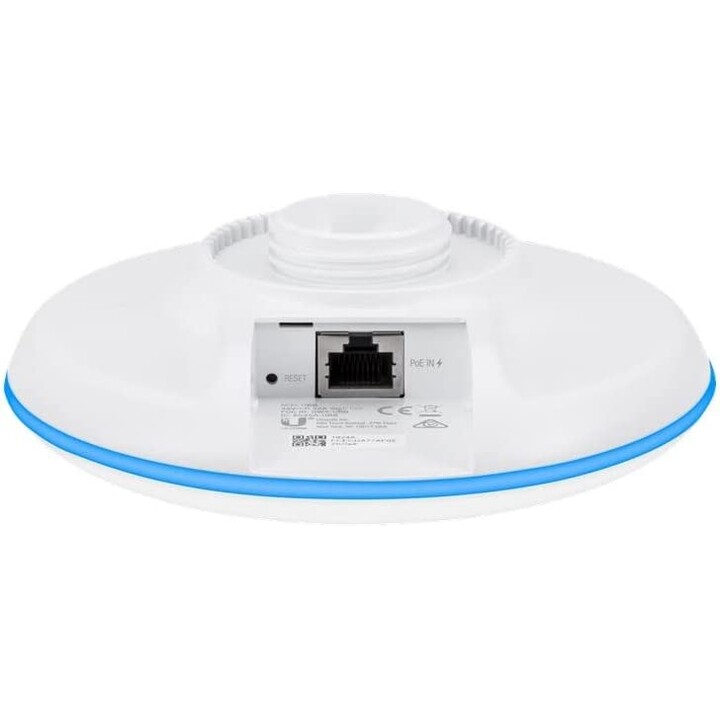

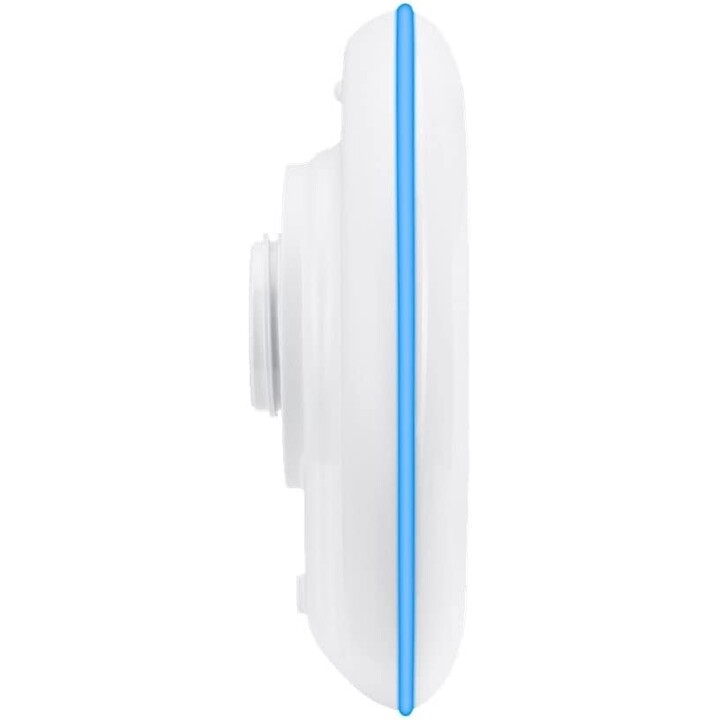

Bridge Ubiquiti UBB/ Pack 2

Building-to-building Bridge

60 GHz PtP link using 802.11ad with 5 GHz radio as backup. Ideal for high-performance connectivity with a range of up to 500 m.
1.7+ Gbps two-way Plug and Play 60 GHz bridging with 5 GHz radio redundancy, UniFi app management and up to 500m range
The UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-performance connectivity. Integration with the UniFi app makes the bridge between two networks seamless. As a two-radio package, the UniFi Building-to-Building Bridge contains everything you need to get up and running in minutes. Enjoyimple, easy-to-use gigabit connectivity anywhere.

• Dimensions
• 140x140x90mm
• Weight
• 376g
• Enclosure
• UV resistant polycarbonate
• Mounting
• Pole mount (Kit included)
• Wall mount (not included)
• Wind load 56 N at 200 km/h (12.6 lbs at 125 mph)
• Wind Survival 200 km/h (125 mph)
• antenna gain
• 2.4GHz (BLE)
• 5GHz
• 60GHz
• 2 dBi
• 10 dBi
• 17.2 dBi
• gps yes
• max Potency of transmission
• 5GHz
• 60GHz
• 25dBm
• 32 - 36.5dBm
• 60 GHz 30° elevation beamwidth
• 60 GHz azimuth coverage ±60°
• Interface network management
• (1) 10/100/1000 Ethernet port
• bluetooth
• Power
• Passive Power over Ethernet 802.3af compliant (48V)
• Power Supply UniFi PoE Switch
• 48V, 0.32A Gigabit PoE Adapter (included)
• Max power consumption 11W
• ESD/EMP Protection ± 24kV Contact/Air
• Operating temperature -40 to 70 °C (-40 to 158 °F)
• Operating humidity 5 to 95% non-condensing
• Certifications CE, FCC, IC
• Operating frequency (MHz)
• 5150 - 5875
• 57,000 - 66,000
• US/CA U-NII-1: 5150 - 5250
• U-NII-3: 5725 - 5850
• 57,000 - 66,000
• Bluetooth (MHz)
• 2400 - 2483.5

• Package Contents:

• Building-to-Building UniFi Bridge (x2)
• Ball joint mount (x2)
• Lock ring (x2)
• Metal strap (x2)
• Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
• Power cord (x2)
