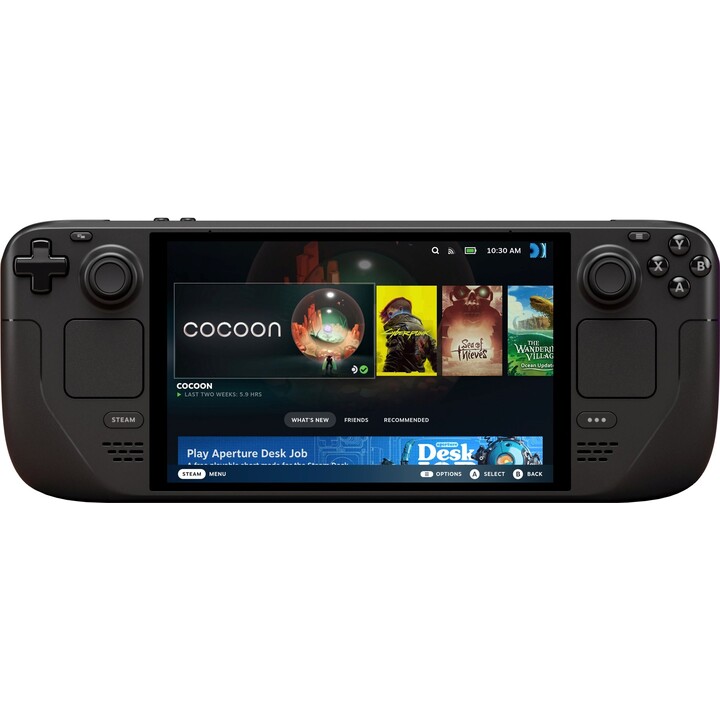

Valve Steam Deck OLED 1TB console

Steam Deck OLED, 1TB NVMe Storage, 16GB LPDDR5 RAM with 7.4-inch HDR OLED Display

1280 800 RGB resolution - 7.4-inch OLED HDR Display - 6nm AMD APAMD 16GB LPDDR5 RAM - 1TB NVMe SSD - Analog Touch Sticks - Haptic Feedback - Trackpads - Bluetooth 5.3 - 6E Tri-band Wi-Fi - 45W PD3.0 USB Type-C - 50W PD3.0 - 50Wh Battery - microSD - DisplayPort - Arch-based SteamOS 3 OS and KDE Plasma desktop

The 1TB OLED Steam Deck with NVMe SSD stands as an innovative console that fuses 1TB storage with OLED HDR technology. Its 7.4-inch screen displays detailed colours, rich blacks and high contrast, delivering a quality viewing experience. Equipped with a4-core AMD Zen 2 CPU and RDNA 2 GPU, this console delivers all-round performance with efficient power consumption. Advanced controls, including tactile analogue sticks, high-definition haptic feedback and pressure-sensitive trackpads, provide a versatile gaming experience. Additional features include Wi-Fi 6E, Bluetooth 5.3, an improved battery and a compact design.

Processing with 4-core/8-thread Zen 2 CPU and RDNA 2 GPU

At the core of the Steam Deck OLED resides a 6nm AMD APU, fusing a 4-core/8-thread Zen 2 CPU, with a variable clock speed of 2.4 to 3.5 GHz, capable of up to 448 GFLOPS FP32. Complementing this powerful processing unit, the RDNA 2 GPU with 8 compute units, operating at 1.6 GHz(1.6 TFLOPS FP32), takes graphics performance to exceptional levels. All this, with APU power consumption ranging from 4W to 15W, demonstrating power efficiency that contributes to battery life.

16GB of RAM with 1TB NVMe SSD

The Steam Deck OLED doesn't skimp on memory resources, incorporating 16GB of integrated LPDDR5 RAM . This 32-bit, 6400 MT/s quad-channel memory ensures smooth and efficient execution of the most demanding games. In terms of storage, the models offer generous options, combined with e, 1TB 512 NVMe SSD.

Buttons and Analogue Sticks

The Steam Deck OLED controls have been designed to provide a complete gaming experience. From A, B, X, and Y buttons, to a crosshead, L and R analog triggers , and L and R front buttons, every detail has been considered.The 4 assignable grip buttons stand out, allowing for optimal customisation. Full-size analogue sticks with capacitive touch offer precise feedback, while high-definition haptic feedback and 32.5mm square trackpads with haptic feedback add an extra layer of versatility and precision.

7.4-inch OLED HDR display

The centrepiece of the Steam Deck OLED is its impressive 7.4-inch OLED HDR display with 1280 800 RGB resolution. This display provides vibrant colours, rich blacks and stunning contrast, delivering an immersive viewing experience. Additionally, with a maximum brightness of 1000 nits in HDR mode and 600 nits in SDR mode , this display ensures optimal visibility in various lighting conditions.

Bluetooth 5.3 and 6E Tri-band Wi-Fi connectivity

Bluetooth 5.3 enables compatibility with remotes, accessories and audio, while the dedicated Bluetooth antenna ensures a stable connection. The presence of 6E tri-band Wi-Fi offers fast and efficient connectivity, enabling downloads up to 3 times faster than previous models. On the audio side, the console offers a stereo system with integrated DSP for an immersive sound experience, backed by a dual microphone array and a 3.5mm stereo headphone/headset jack.

USB-C power, 12-hour battery life and microSD expansion

Featuring a 45W USB Type-C PD3.0 USB Type-C power supply and a 50Wh battery , the Steam Deck OLED promises gaming sessions ranging from 3 to 12 hours, depending on content. The console features microSD expansion options with support for SD, SDXC and SDHC, as well as external connectivity for controllers and displays via DisplayPort over USB-C.

SteamOS 3 software

Equipped with the SteamOS 3 operating system based on Arch and the KDE Plasma desktop, the console offers an optimised interface for an intuitive user experience. In addition to this, the compact design of the Steam Deck OLED, with compact dimensions and a weight of approximately 640 grams, makes it an ideal portable companion.

Technical Specifications Steam Deck OLED 1TB NVMe Black - Portable Console:

• Brand: Steam
• Model: Deck OLED
• Display:
  • Dimensions: 7.4" diagonal
  • Type: OLED HDR display
  • Resolution: 1280 x 800 px
  • Premium anti-reflective etched display
  • Brightness: 1000 nits (maximum)/600 nits (SDR)
  • Contrast ratio: > 1000000:1
  • Colour gamut: 110% P3
  • Refresh Rate: Up to 90 Hz
  • Response time: <0.1 ms
  • Touchscreen
  • Ambient light sensor
• Processor:
  • Processor: AMD 6mm APU
    • CPU: 4-core/8-thread Zen 2, 2.4 - 3.5 GHz (up to 448 GFLOPS P32)
    • GPU: RDNA 2 with 8 compute units, 1.0 - 1.6 GHz (up to 1.6 TFLOPS FP32)
    • APU power consumption: 4-15W
  • RAM: 16GB of integrated LPDDR5 RAM (four 32-bit channels, 6400 MT/s)
  • Storage: 1TB high-speed NVMe SSD (PCIe Gen 3 x4)
  • Operating system: SteamOS 3.0 (Arch-based)
  • KDE Plasma desktop
• Connectivity:
  • Bluetooth v5.3
  • WiFi: Tri-band 6E, 2.4GHz/5GHz/6GHz, 2x2 MIMO, IEEE 802.11 a/b/g/n/ac/ax
• Audio:
  • Stereo with integrated DSP
  • Dual matrix microphone
  • 3.5mm stereo headphone jack input
  • Digital Audio: Multi-channel audio via DisplayPort over USB Type-C or Bluetooth v5.0
• Controls and inputs:
  • Remote controls:
    • A, B, X, Y buttons
    • Crosshair
    • Analog L and R triggers
    • Front L and R buttons
    • View and Menu buttons
    • 4 assignable grip buttons
  • Analogue sticks: 2 full-size analogue sticks with capacitive touch
  • Haptic feedback: High definition
  • Trackpads: 2 x 32.5 mm square trackpads with haptic feedback, pressure sensitivity for configurable click force
  • Gyroscope: 6-axis IMU
• Edition features:
  • Exclusive Steam Community profile lot
  • Virtual keyboard with exclusive theme
• Interface:
  • 1 x UHS-I microSD card slot compatible with SD, SDXC and SDHC
  • 1 x USB Type-C compatible with DisplayPort 1.4 alternative mode
  • 1 x USB 3.2 Gen 2
• Power supply:
  • 45W USB Type-C PD3.0 USB Type-C PD3.0 power supply
  • 50 Wh battery
  • Usage time: 3 to 12 hours of play time
• Dimensions: 298 x 117 x 49 mm
• Weight: 640 grams
• Colour: Black

Box contents:

• 1 x Steam Deck OLED 1TB NVMe Black - Portable Console
• 1 x 45W Charger + EU Adapter
• 1 x Carrying case with removable sleeve
• 1 x Steam Profile Pack
• 1 x Exclusive startup video
• 1 x Virtual Keyboard with exclusive theme
• 1 x User manual
