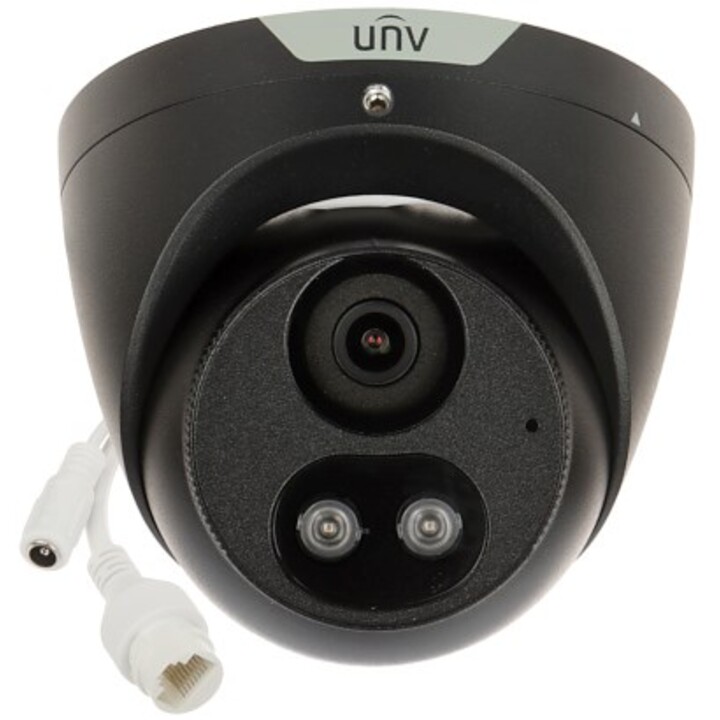

IP Camera IPC3615SB-ADF28KMC-I0-Black
- 2MP (1920x1080) resolution at 30fps
- 2.8mm fixed lens with 103° horizontal FOV
- IR LEDs with up to 30m night vision range
- H.265/H.264 video compression
- IP67 weatherproof and IK10 vandal-resistant housing
IP Camera IPC3615SB-ADF28KMC-I0-Black
The Uniview IPC3615SB-ADF28KMC-I0 is a high-performance 2MP bullet IP camera designed for outdoor surveillance. Featuring a 1/2.8" progressive scan CMOS sensor, it delivers crisp 1080p video at 30 frames per second. The 2.8mm fixed lens provides a wide 103° horizontal field of view, making it ideal for monitoring entrances, parking lots, and perimeters. With built-in IR LEDs, the camera captures clear images in complete darkness up to 30 meters.
This camera supports H.265 and H.264 compression to reduce bandwidth and storage requirements without sacrificing image quality. It is housed in an IP67-rated weatherproof and IK10-rated vandal-resistant enclosure, ensuring reliable operation in harsh outdoor conditions. The camera also supports PoE (Power over Ethernet) for easy installation with a single cable, and is compatible with Uniview's NVRs and third-party systems via ONVIF.
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2MP (1920x1080) at 30fps |
| Lens | 2.8mm fixed, F2.0 |
| Field of View | Horizontal: 103°, Vertical: 55°, Diagonal: 120° |
| Minimum Illumination | 0.01 Lux (color), 0 Lux (IR on) |
| IR Range | Up to 30m |
| Video Compression | H.265, H.264, MJPEG |
| Day/Night | ICR auto switch |
| Audio | 1ch audio input, 1ch audio output |
| Alarm | 1ch alarm input, 1ch alarm output |
| Network | 10/100Mbps Ethernet, PoE (802.3af) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, FTP, NTP, RTSP, ONVIF |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40°C to 60°C |
| Power Supply | DC 12V or PoE (IEEE 802.3af) |
| Power Consumption | ≤ 7W |
| Dimensions | Φ70mm x 186mm |
| Weight | 0.5 kg |
-
ColorBlack
| Brand | Uniview |
|---|---|
| Country | China |
| Address of origin | No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province |
| EU responsible person | Uniview Technologies Co.,Ltd. |
| Address | Calle Pedro Duque,1 Módulo 6B 28814 Daganzo de Arriba - Madrid |
| [email protected] | |
| Phone | +34 912844705 |
