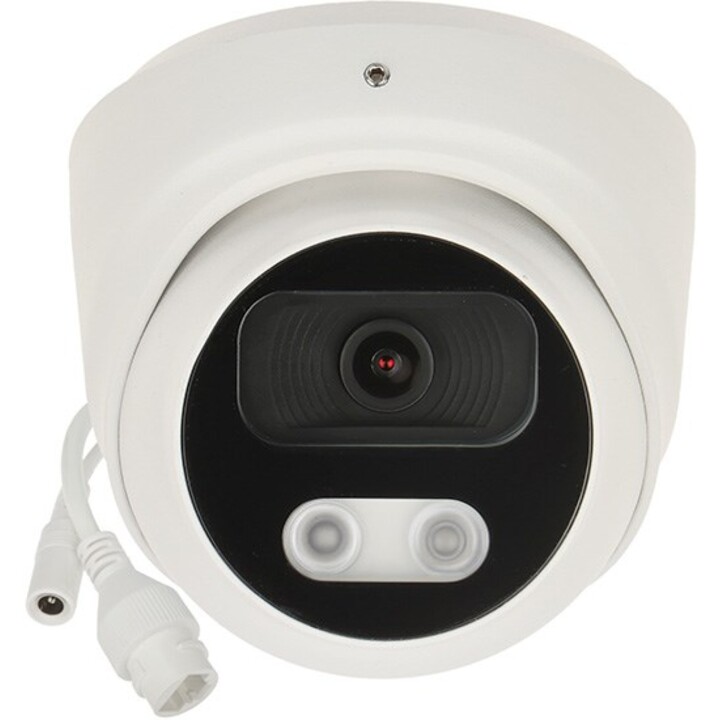

APTI-AI401VA21-28W IP Camera - 4 Mpx 2.8 mm
- Resolution: 4 Mpx (2688x1520)
- Lens: 2.8 mm fixed
- Compression: H.265/H.264
- IR Range: up to 30 m
- Protection: IP67, IK10
APTI-AI401VA21-28W IP Camera - 4 Mpx 2.8 mm
The APTI-AI401VA21-28W is a high-performance IP camera designed for professional surveillance. Featuring a 4 Mpx CMOS sensor and a 2.8 mm fixed lens, it delivers crisp 2688x1520 resolution at 25 fps. With H.265 compression, it reduces bandwidth and storage requirements while maintaining image quality. The camera supports true day/night functionality with an IR cut filter and built-in IR LEDs providing up to 30 meters of night vision.
Built for outdoor use, the camera boasts an IP67 weatherproof and IK10 vandal-resistant housing. Power over Ethernet (PoE) simplifies installation by combining power and data over a single cable. Intelligent video analytics include motion detection, tampering alarm, and line crossing detection. The camera is ONVIF compliant, ensuring compatibility with a wide range of NVRs and VMS platforms.
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution | 4 Mpx (2688x1520) |
| Lens | 2.8 mm fixed, F2.0 |
| Field of View | Horizontal: 102°, Vertical: 55° |
| Minimum Illumination | 0.01 Lux (color), 0 Lux (IR on) |
| IR Range | Up to 30 m |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 25 fps @ 2688x1520 |
| Day/Night | IR cut filter |
| Audio | 1-ch input, 1-ch output |
| Alarm I/O | 1 input, 1 output |
| Network | 10/100M Ethernet, PoE (802.3af) |
| Protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, RTSP, ONVIF (Profile S/G/T) |
| Intelligent Analytics | Motion detection, tampering, line crossing, intrusion |
| Storage | MicroSD slot (up to 256 GB), NAS |
| Power Supply | PoE or 12V DC |
| Power Consumption | Max 8 W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -30°C to 60°C |
| Dimensions | Φ70 x 186 mm |
| Weight | 0.5 kg |
