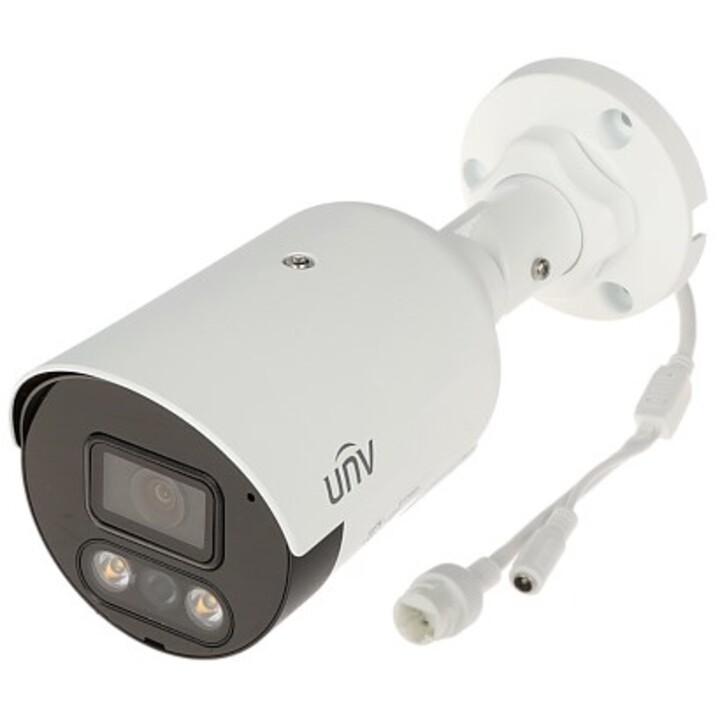

IP Camera IPC2124SB-ADF28KMC-I0 - 4 Mpx 2.8 mm
- 4 Megapixel (2688x1520) resolution at 25fps
- 2.8mm fixed lens with 103° horizontal FOV
- 30m IR night vision range
- H.265/H.264 dual-stream video compression
- IP67 weatherproof and IK10 vandal-resistant housing
IP Camera IPC2124SB-ADF28KMC-I0 - 4 Mpx 2.8 mm
The Uniview IPC2124SB-ADF28KMC-I0 is a high-performance 4MP IR network camera designed for outdoor surveillance. Featuring a 2.8mm fixed lens with a wide 103° horizontal field of view, it captures detailed images even in challenging lighting conditions. With 120dB true WDR and advanced noise reduction, this camera delivers clear footage in high-contrast scenes and low-light environments.
Built for reliability, the camera is housed in an IP67-rated weatherproof and IK10 vandal-resistant casing, ensuring operation in harsh outdoor conditions. It supports H.265 compression to reduce bandwidth and storage requirements without compromising image quality. The integrated IR LEDs provide up to 30 meters of night vision, making it suitable for 24/7 surveillance of perimeters, parking lots, and building entrances.
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution | 4MP (2688 x 1520) @ 25fps |
| Lens | 2.8mm fixed, F2.0 |
| Field of View | Horizontal: 103°, Vertical: 55°, Diagonal: 120° |
| Minimum Illumination | 0.003 lux (color), 0 lux (IR on) |
| IR Range | 30m (smart IR) |
| WDR | 120dB true WDR |
| Video Compression | H.265, H.264, MJPEG |
| Day/Night | ICR auto switch |
| Audio | 1ch audio input, 1ch audio output |
| Alarm | 1ch alarm input, 1ch alarm output |
| Network | 10/100Mbps Ethernet, ONVIF Profile G/S/T |
| Power | DC12V ±25%, PoE (802.3af) |
| Power Consumption | ≤ 7.5W (max) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40°C to 60°C |
| Dimensions | Φ70mm x 185mm |
| Weight | 0.5kg |
-
Brand
-
ReferenceIPC2124SB-ADF28KMC-I0
-
In stock32 Items
-
ConditionNew
-
EAN136970333408511
-
MPNIPC2124SB-ADF28KMC-I0
-
Connected productYes
