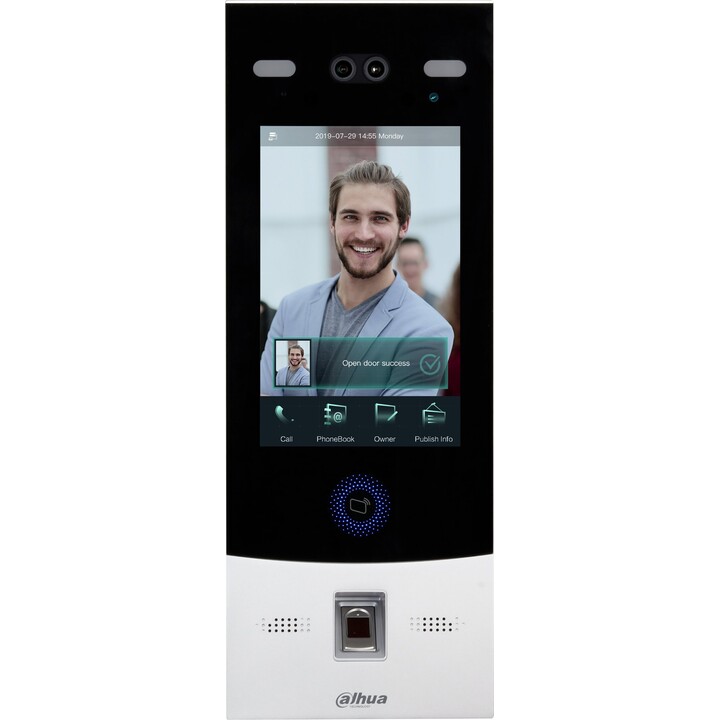

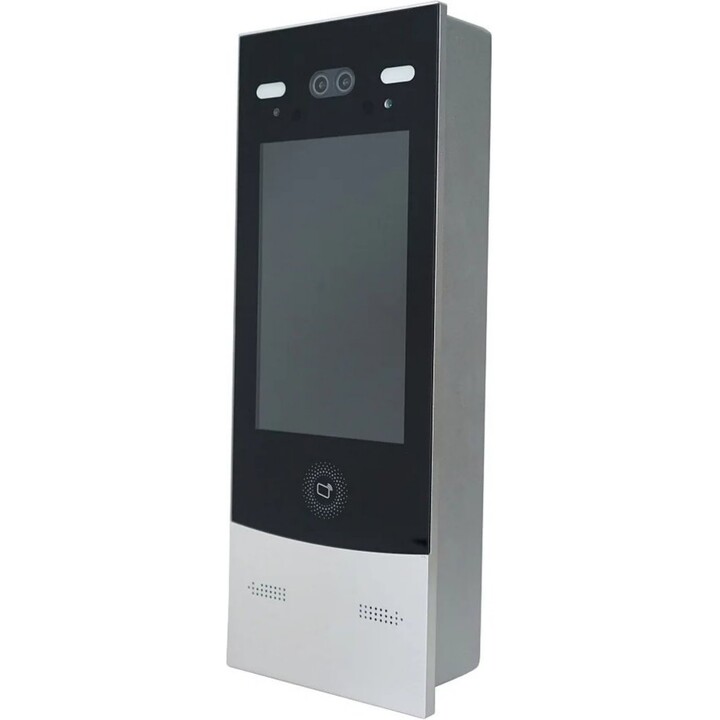

Dahua VTO7541G-S3: 8" IP Face Recognition Apartment Door Station 2MP Dual-Lens

Dahua VTO7541G-S3 IP Face Recognition Apartment Door Station (6923172580573)

The Dahua VTO7541G-S3 is a high-end, multi-functional IP outdoor station designed for advanced access control in apartment buildings and high-security complexes. It features a large 8-inch capacitive IPS touch screen with a resolution of 800 x 1280, providing a modern and user-friendly interface. Security is anchored by a 2MP dual-lens CMOS camera that supports high-accuracy face recognition (99.9%) and liveness detection to prevent spoofing with photos or videos. This versatile terminal supports multiple verification methods including facial recognition, fingerprint scanning, IC cards, QR codes, and passwords. Housed in a durable metal casing with an IP65 weather-resistance rating, it is built to withstand harsh outdoor environments. The VTO7541G-S3 also supports full-duplex communication, standard PoE, and can be managed remotely via a mobile app or management center, making it a comprehensive solution for intelligent building entry.

Technical Specifications

* **Main Processor:** Embedded Processor with Linux OS.

* **Display:** 8-inch IPS Capacitive Touchscreen (800 x 1280).

* **Camera:** 1/2.8" 2MP CMOS dual-lens; Wide Dynamic Range (WDR) 120 dB.

* **Field of View:** Horizontal: 95°; Vertical: 50°; Diagonal: 110°.

* **Face Recognition Time:** ≤ 0.2 seconds per person.

* **Capacity:** 100,000 Users, 50,000 Faces, 50,000 IC Cards, 10,000 Fingerprints.

* **Verification Methods:** Face, Fingerprint, IC Card, Password, QR Code, Remote Unlock.

* **Connectivity:** 1 x 10/100 Mbps Ethernet port (RJ-45); RS-485; Wiegand.

* **Audio:** Built-in speaker and microphone for two-way audio; Echo suppression.

* **Storage:** Supports Micro SD card up to 512 GB.

* **Protection:** IP65-rated (weatherproof) and IK07-rated (impact resistant).

* **Part Number:** VTO7541G-S3.

* **EAN:** 6923172580573.

Functionality and Power

* **Snapshot Support:** Automatic snapshots when unlocking.

* **Alarm Interfaces:** 2 x Alarm Input; 2 x Alarm Output.

* **Tamper Switch:** Built-in tamper-proof alarm.

* **Power Supply:** 12V DC, 3A or Standard PoE (802.3af/at).

* **Power Consumption:** ≤ 5W (standby); ≤ 18W (working).

* **Operating Temperature:** –30 °C to +60 °C (–22 °F to +140 °F).

* **Dimensions:** 389 mm × 145 mm × 43.5 mm.
