Ajax DoorBell has been designed to modernise the traditional video door entry experience by integrating compact design and advanced security technology into the Ajax ecosystem through the JetSparrow transmission protocol, developed by Ajax for the efficient transmission, storage and management of video data. It is designed to provide ultra-fast and stable video streaming in real time, without delay or interruption. It uses peer-to-peer (P2P) technology and TLS encryption, ensuring secure data transmission. Thanks to its high efficiency, it enables smooth navigation in both live viewing and archiving of recordings, optimising the monitoring and security management experience.
With long-rangeWi-Fi connection and secure backup, the Ajax DoorBell operates with 2.4 GHz Wi-Fi , but in case of network failure, it guarantees continuity thanks to the proprietary Jeweller and Wings protocols.
- Ajax
- Doorbell with integrated AI and PIR
- Progressive scan CMOS
- Wi-Fi 2.4 GHz
- 4 Megapixel (2688×1520)
- IR up to 6 m
- AI object detection
- H.264 compression
- HDR technology
- Built-in microphone Codec G722
- Motion detection up to 4 m range
- Adjustable detection sensitivity in Ajax app
- Anti-opening tamper and fixing screw
- 12-24V DC main power supply
- 600 mAh battery back-up (up to 2 h of operation)
- IP54
- Outdoor use
- Grey colour
What are the technical characteristics of the AJAX AJ-DOORBELL-4-GRE Video doorbell with integrated AI, PIR sensor and app control?
- Brand: Ajax
- Image sensor: CMOS
- Maximum Resolution: 4 Megapixel (2688×1520)
- Main Stream Rate: 4 Mpx (1 ~ 25 FPS)
- Viewing Angle: H: 155° / V: 90° Viewing Angle: H: 155° / V: 90° Viewing Angle: 155° / V: 90
- IR Range: 6 m
- Image Enhancements: HDR
- Artificial Intelligence: Available. People, vehicles and pets
- Audio: Built-in microphone Codec G722
- Video protocol: JetSparrow
- Video storage: Ajax Cloud or NVR
- Network Interface: Wi-Fi 2.4 GHz
- Backup connection: Jeweller/Wings for events and imaging
- Encryption: mTLS
- Compression: H.264
- Firmware Update: Available. OTA (Over-the-air) updates remotely
- Detection range: Integrated PIR 4 m / H: 120° / V: 100° Sensitivity: Adjustable from App.
- Sensitivity: Adjustable from App. 3 levels (low, medium and high)

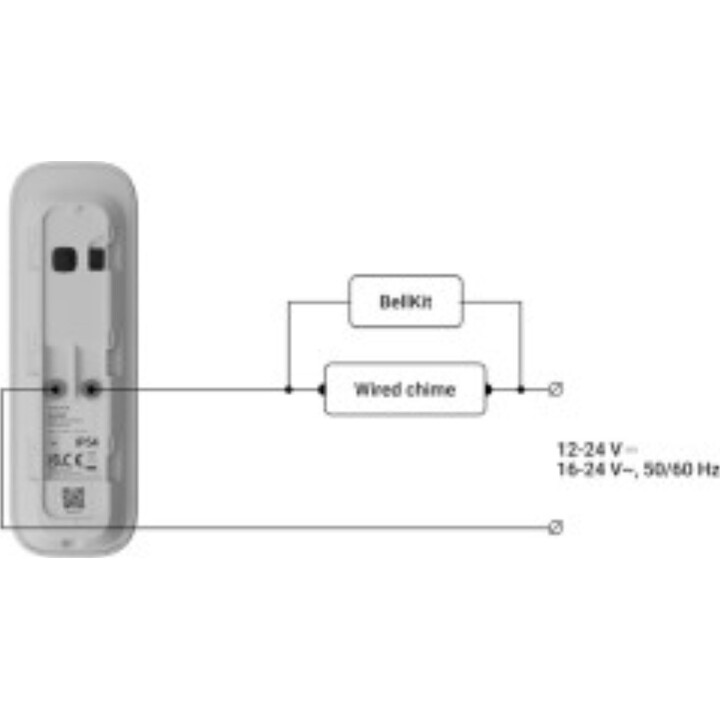

- Power supply: 12-24 V DC
- Battery backup:
- Li-ion rechargeable 600 mAh
- Automatic heating for operation at low temperatures without reducing performance
- Power consumption: 10 W
- Operating temperature: -25 °C ~ +60 °C
- Operating humidity: Up to 90%
- Degree of protection: IP54
- Dimensions: 145 × 47 × 34 mm
- Weight: 163 g
- Colour: Grey
- RAL code: RAL 7024
