Hanwha SBP-301HMW3 Aluminum Hanging Mount Indoor Dome PF1.5" White 300g

Hanwha SBP-301HMW3 Pendant Mount Cap - White (8801089214751)

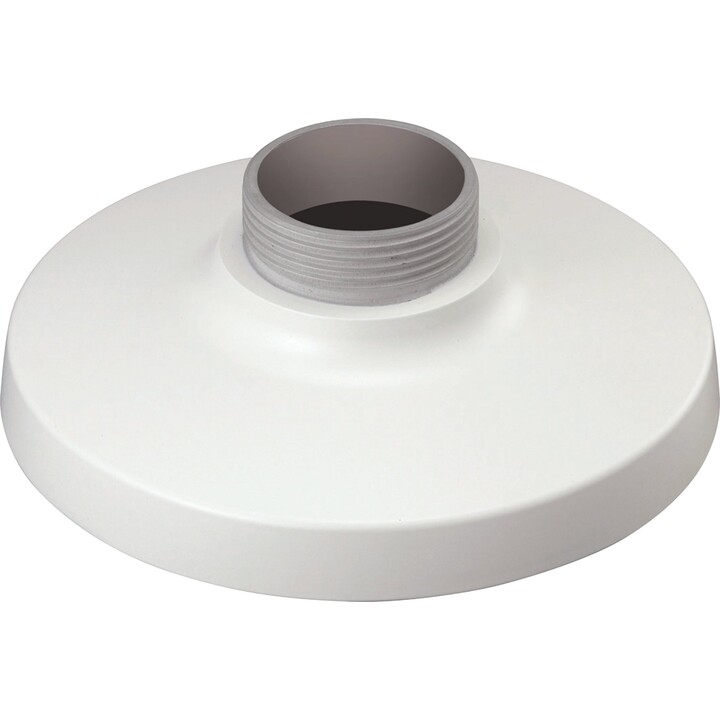

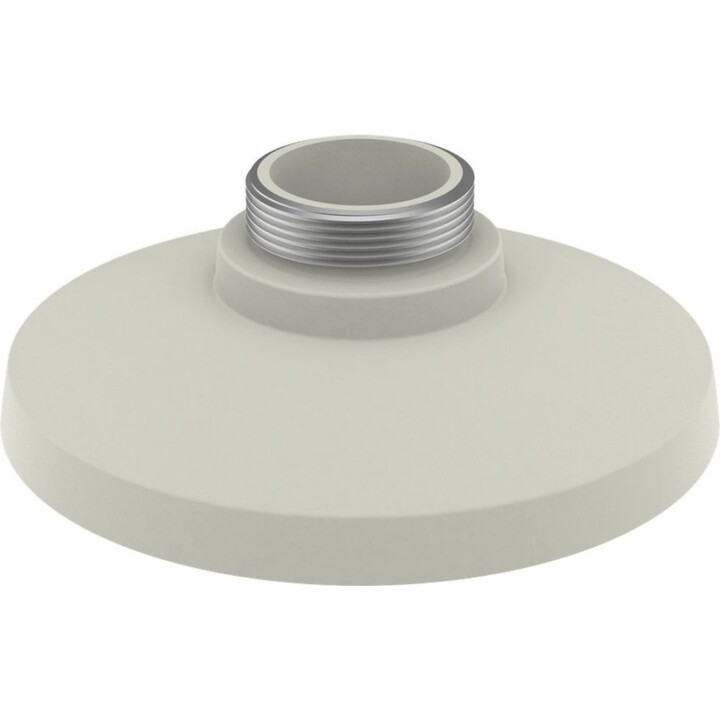

The Hanwha SBP-301HMW3 is a professional-grade pendant mount adapter designed to facilitate the suspended installation of compatible PTZ and dome network cameras. This hardware serves as an essential mechanical bridge, allowing secure attachment of camera units to 1.5" NPT or PF threaded pipes and pendant mounts. Constructed from high-durability aluminum, the adapter is engineered to support the significant structural loads associated with high-precision surveillance equipment while maintaining a stable optical axis. The unit features an integrated internal opening for cable management to protect data and power conductors from mechanical stress and environmental exposure. For industrial-grade resilience, the chassis is coated with a white powder finish (RAL9003) that resists corrosion and UV degradation, enabling deployment in various architectural environments, including high-ceiling indoor spaces and external structural mounts.

Technical Specifications

* Model: SBP-301HMW3

* Part Number: SBP-301HMW3

* EAN: 8801089214751

* Material: Aluminum

* Finish: White powder coating (RAL9003)

* Mounting Screw Size: 1.5" NPT / PF 1-1/2"

* Compatibility: Hanwha QNP-6250, QNP-6320, XNP-6320/6321, and certain PTZ cameras from the Q/X series

* Operating Temperature: -50°C to +60°C

* Operating Humidity: 0% to 100% 100%

* Dimensions: Ø155 x 40 mm (6.1 x 1.6")

Main Features

* High-strength aluminum construction: Made from a specialized aluminum alloy offering superior structural integrity and a high strength-to-weight ratio, ensuring the safety of suspended camera equipment.

* Dual-thread mounting compatibility: Designed to support 1.5" NPT and PF 1-1/2" threaded interfaces, providing maximum flexibility for integration with various mounting accessories and industrial piping.

* Integrated cable pass-through architecture: Includes a 1.5" internal opening designed to route and conceal network and power cables, preventing unauthorized access and environmental damage to signal lines.

* Industrial environmental coating: Equipped with a durable RAL9003 white finish that protects the metal substrate against oxidation and thermal fluctuations in technical areas not climate-controlled.

* Precision mechanical fit: Developed with a streamlined profile design that aligns precisely with the camera base, ensuring a seamless aesthetic transition and high-integrity electrical contact through the mounting interface.
