LevelOne HVE-9211PR, 4K NVR 8-Channel PoE, H.265/H.264 Video Compression 2x SATA HDD Bays up to 10TB Each HDMI/VGA Output

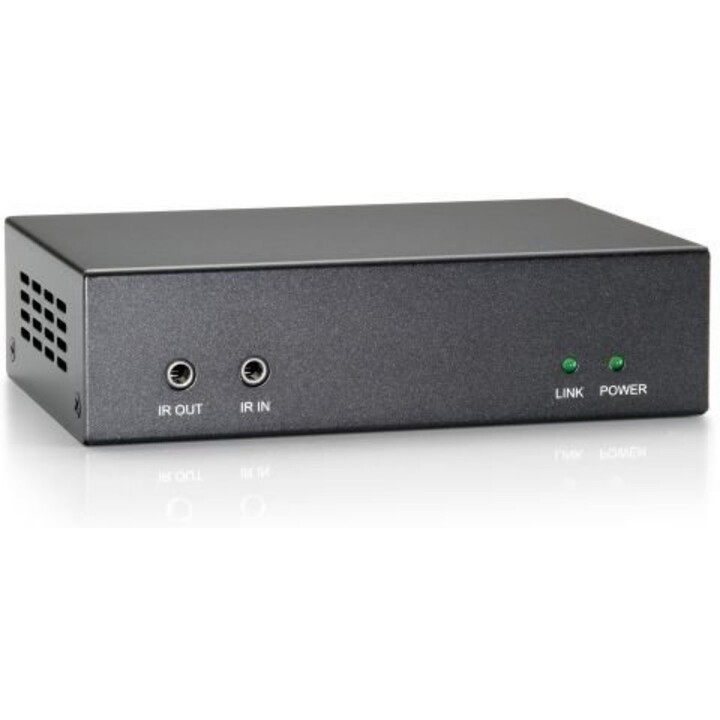

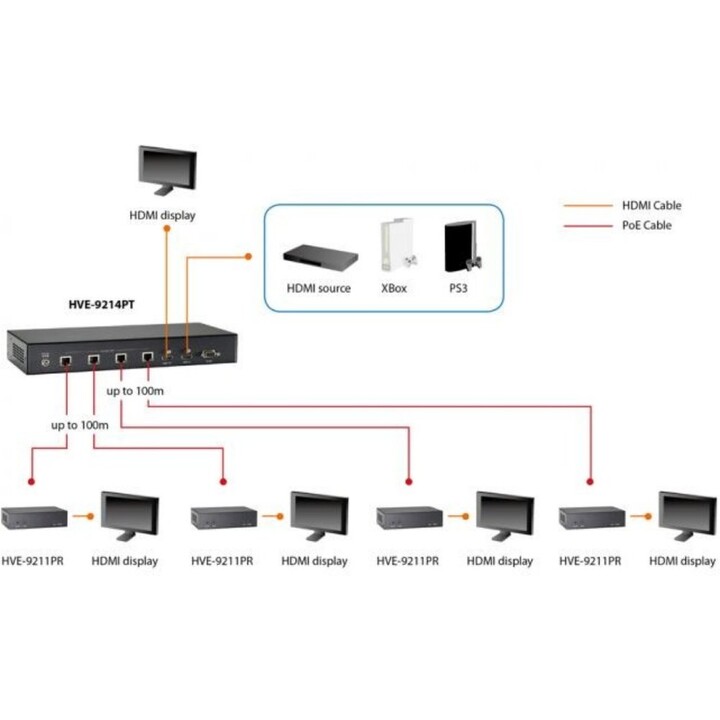

The LevelOne HVE-9211PR is an HDBaseT HDMI receiver over Cat.5 PoE designed to extend uncompressed 4K@60Hz video, multichannel audio, IR control, and RS-232 signals up to 100 m over Cat5e/Cat6 cables, ideal for professional AV distribution in conference rooms or digital signage installations.

Performance Specifications

• Supports HDMI 2.0 standard with 4Kx2K@60Hz resolution (4:4:4 chroma), HDCP 2.2 compliance, and advanced audio formats including Dolby TrueHD, DTS-HD Master, Dolby Digital Plus, and LPCM 7.1 for immersive, lossless audio transmission over long distances.

• Bidirectional IR extension and RS-232 serial control up to 100 m for centralized AV management.

Connectivity and Features

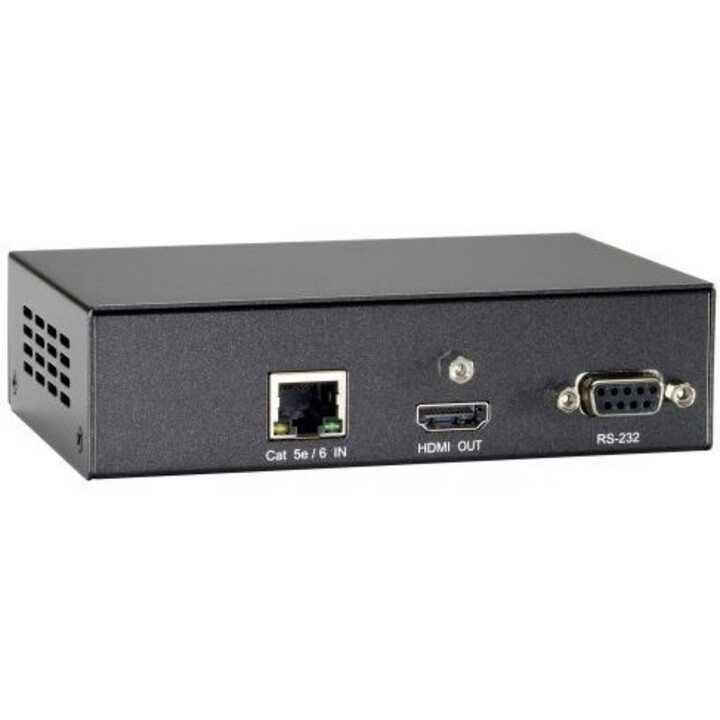

• HDBaseT RJ45 input for Cat.5e/6 cable connection (up to 100 m for 4K/HD), HDMI output, 3.5 mm audio output, IR input/output ports, RS-232 terminal block, and 10 Mb LAN for network integration; PoE power via IEEE 802.3at (up to 15 W) or included 12 V DC adapter.

Design and Efficiency

• Compact black metal casing (98.5x79x27.5mm, 0.3kg) with wall/desktop mounting options, reliable operation from 0°C to 40°C in low-noise environments, EDID management for optimal display compatibility, and supports CEC technology for simplified control.
