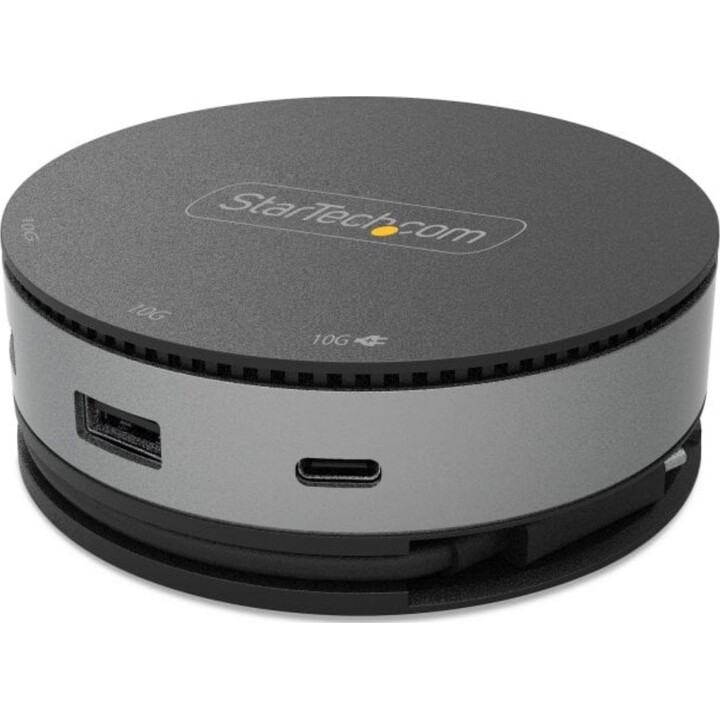

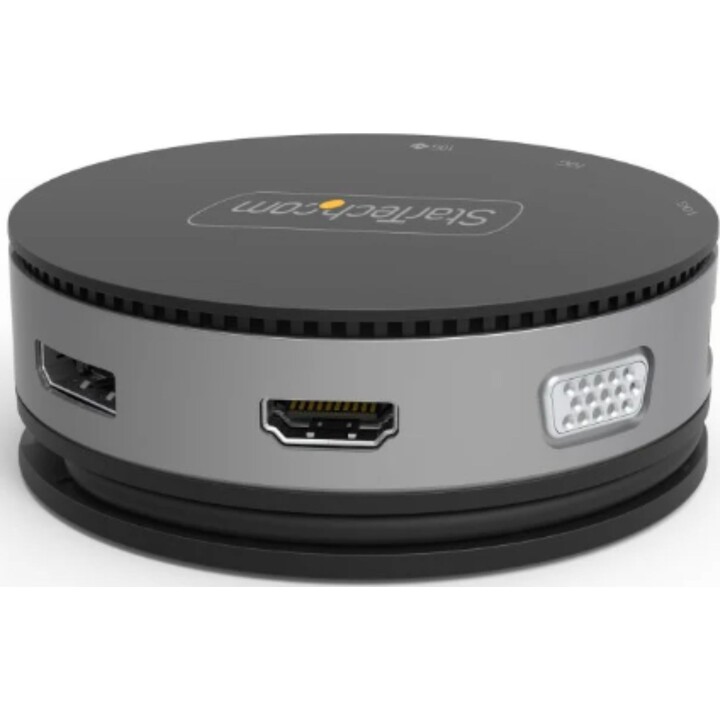

Startech 10Gbps Docking Station with USB-C/HDMI/DisplayPort/VGA

This USB-C Gen 2 10Gbps multiport adapter , backward compatible with USB-C laptops, transforms your USB-C or Thunderbolt 3 equipped laptop and Windows system, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation wherever you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique, portable, circular design and all the essential connections.

Characteristics:

• 7-IN-1 MINI PORT REPLICATOR: Compact mobile USB-C adapter (USB 3.2/3.1 Gen 2 10Gbps) with DisplayPort/HDMI display up to 4K 60Hz, or VGA 1080p ports, USB hub (2x USB-A, 1x USB-C) and network
• FLEXIBLE VIDEO OUTPUT: Configure 4K 60Hz video with a DisplayPort 1.4 (DP/HDMI 2.0 HDR) display or 4K 30Hz with DP 1.2, or VGA 1080p outputs, providing flexibility in the case of mixed monitors
• EXTRA LONG CABLE: 25.4cm cable for greater reach and reduced strain on the port, on 2-in-1 devices. USB C multiport adapter with retractable cable

Specs:

• Ports and Interfaces
  • Connectivity technology: Wired
  • Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  • Number of USB 3.2 Gen 2 (3.1 Gen 2) Type A ports: 2
  • Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
  • USB power supply: Yes
  • USB Power Delivery up to: 75 W
  • Number of HDMI ports: 1
  • Number of VGA (D-Sub) ports: 1
  • Number of DisplayPorts: 1
  • Microphone input jack: No

• Connection
  • Ethernet: Yes
  • Ethernet LAN (RJ-45) number of ports: 1
  • Ethernet LAN, data transfer speed: 10, 100, 1000 Mbit/s
  • Network standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u

• Performance
  • Integrated card reader: No
  • Data transfer speed: 10 Gbit/s
  • Resolution (maximum digital): 3840 x 2160 Pixels
  • Product color: Black, Gray
  • RoHS Compliance: Yes

• Software
  • Supported Windows operating system: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
  • Supported MAC operating system: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS
  • Supported mobile operating systems: Android, iOS
  • Other supported operating systems: Chrome

• Weight and dimensions
  • Width: 90 mm
  • Depth: 90 mm
  • Height: 32 mm
  • Weight: 277 g

• Packaging
  • Package width: 141 mm
  • Package depth: 132 mm
  • Package height: 36.5 mm
  • Package weight: 100 g

• Package contents
  • Quick Setup Guide: If

• Environmental conditions
  • Operating temperature range: 0 - 50°C
  • Storage temperature range: -20 - 70 °C
  • Relative humidity range for operation: 0 - 95%

• Other features
  • Cable length: 0.254 m
  • IC: Genesys Logic GL9510, Genesys Logic GL3590, Realtek RTL8153, Realtek RTD2142S
