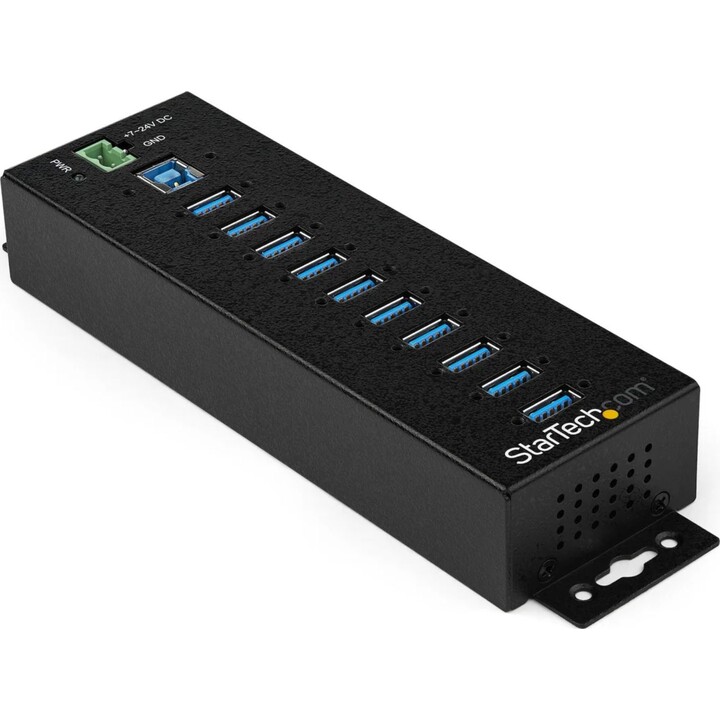

Startech 10-Port USB Hub with Power Adapter

Description

StarTech HB30A10AME USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s interface hub Black

Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps

This TAA-compliant 10-port USB 3.2 Gen 1 industrial hub gives you the scalability and power needed in harsh industrial environments such as product and repair labs, conference rooms, or office workstations. With its rugged, industrial-grade metal enclosure, it is designed to meet the advanced requirements of connecting a large number of devices in factory and office environments.

Ideal for Harsh Environments

This industrial USB hub delivers reliable performance with its rugged, metal enclosure. Supports a wide input range of 10-24V DC terminal block, giving you the flexibility to source power as needed based on the power input capabilities of your environment.

Ideal for factory environments, this rugged hub also operates in a wide temperature range (0°C to 70°C) and offers surge and electrostatic discharge (ESD) protection for each USB port, preventing damage to your connected devices.

Connect and charge more USB devices

Designed for a high connection count, this rugged USB 3.2 Gen 1 hub offers 10 connection ports, so you can connect more USB devices and peripherals.

The hub also supports USB Battery Charging Specification version 1.2, delivering up to 2.4A to each port and up to a total maximum of 50W, so you can charge your mobile devices faster than conventional USB ports allow.

Place the hub where it matters

With versatile mounting options, you can place the hub where it best fits your environment. With integrated mounting brackets and included DIN mounting rails, the USB 3.2 Gen 1 hub can be securely mounted on most surfaces, such as a wall, under a desk/table, or in a rack.

Supports a wide 7 to 24V DC terminal block input range, giving you the flexibility to power as needed based on the power input capabilities of your environment. You can also power the industrial hub by connecting it directly to a wall outlet using the included terminal block power adapter, for convenient and flexible installation.

StarTech also offers an external power adapter, the ITB20D3250, which is sold separately. This universal DC power adapter is designed as an alternative, backup, or replacement power supply for Startech line of industrial USB hubs.

Works with legacy USB devices

. The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous-generation USB devices. You can connect your legacy peripherals at the same time as your current-generation USB 3.2 Gen 1 devices without interruption.

Key product points

RUGGED AND RELIABLE: Featuring a metal housing, 15kV/8kV EMI/airborne particle/contact protection/immunity, and 350W surge protection, this heavy-duty USB 3.2 Gen 1 hub reliably connects 10 USB devices in industrial environments under extreme conditions.

MOUNTING OPTIONS: This USB hub mounts securely on or under a desk/table, on a wall, or on a DIN rail using the built-in mounting tabs and included DIN rails; a 1.8m USB 3.2 Gen 1 cable is also included.

POWER FLEXIBILITY: To support unique power requirements, this USB 3.2 Gen 1 hub supports a DC range of +7-24 volts, DC power, LPS with terminal block, or AC outlet with the included power supply adapter.

POWER AND CHARGE YOUR DEVICES: 10 USB 3.2 Gen 1 ports transfer data at 5Gbps, with 2.4A (12W) of power on up to 4 ports or any combination of lower power supplies power devices at up to 50W of total shared power

Ports and Interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 10

Number of ports: 10

Terminal block port: Yes

Characteristics

Data transfer speed: 5000 Mbit/s

Product color: Black

Overload protection: Yes

LED Indicators: Power

Plug and Play: Yes

Certification: RoHS, REACH, CE, FCC, TAA

Connection

UASP support: Yes

Power control

Power supply type: Alternating current

Power consumption: 65 W

Input voltage: 100 - 240 V

Input current: 1.4 A

Output voltage: 20 V

Output current: 3.25 A

Weight and dimensions

Width: 55 mm

Depth: 198 mm

Height: 30 mm

Weight: 352 g

Packaging

Quantity per package: 1 piece(s)

Package width: 190 mm

Package depth: 295 mm

Package height: 70 mm

Package weight: 1.4 kg

Package contents

AC adapter included: Yes

Power plug types included: ANZ, EU, JP, NA, UK

Cables included: USB

Quick Installation Guide: Yes

Includes DIN rail kit: Yes

Environmental conditions

Operating temperature range: 0 - 70°C

Storage temperature range: -20 - 85 °C

Relative humidity range for operation: 5 - 95%

Performance

Mean time between failures: 126,106 h

Other features

Integrated circuit: Genesys Logic - GL3523
