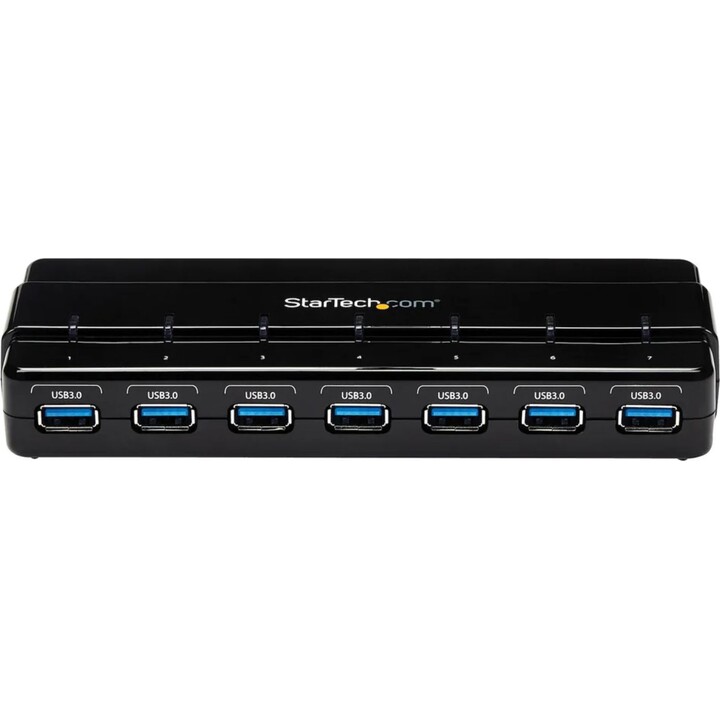

Startech 7-Port USB 3.0 Hub - 5Gbps

Description

StarTech ST7300USB3B USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s interface hub Black

Add 7 external USB 3.2 Gen 1 ports to your computer using one USB connection

The ST7300USB3B USB 3.2 Gen 1 hub lets you add seven USB 3.2 Gen 1 ports to your computer through a single USB 3.2 Gen 1 host connection.

Delivering data transfer speeds of up to 5 Gbps, this USB hub meets SuperSpeed USB 3.2 Gen 1 specifications and is backward compatible with USB 2.0 and 1.x devices.

Designed for easy port access when connecting or disconnecting devices, the hub features side-facing orientation and features over-current detection and protection for all seven ports.

It also supports plug-and-play and hot-swap technologies, so you can switch and use connected devices without powering down the host computer.

This USB hub is bus-powered, ideal for environments where a power outlet may not be available, as well as for high-power USB devices when used with the included optional power adapter.

Key product points

Seven USB 3.2 Gen 1 downstream ports accessible from the side of the hub, with support for up to 5Gbps

Universal and cross-platform compatibility, requiring no additional driver installation

Supports Plug and Play and Hot-Swap

Backward compatible with USB 2.0 and 1.x devices

Overcurrent detection and protection of each USB port

USB bus powered, including optional external power adapter for high-drain USB devices

Includes USB 3.2 Gen 1 A to B cable

Ports and Interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A

Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 7

Number of ports: 7

DC input jack: Yes

Characteristics

Data transfer speed: 5000 Mbit/s

Product color: Black

Housing material: Plastic

LED indicators: Yes

Power control

Power supply type: DC

Input voltage: 100 - 240 V

Input current: 1.3 A

AC input frequency: 50 - 60 Hz

Output voltage: 12 V

Output current: 3 A

Plug type: Type M

Weight and dimensions

Width: 70 mm

Depth: 172 mm

Height: 23 mm

Weight: 148 g

Packaging

Package width: 148 mm

Package depth: 209 mm

Package height: 63 mm

Package weight: 556 g

Package contents

AC adapter included: Yes

Power plug types included: AU, EU, NA, UK

Cables included: USB

User Manual: Yes

Environmental conditions

Operating temperature range: -2 - 52°C

Storage temperature range: -20 - 56 °C

Relative humidity range for operation: 5 - 95%

Performance

Mean time between failures: 43977.72 h

Sustainability

Sustainability compliance: Yes

Technical details

Certificates of conformity: CE, RoHS

Other features

Integrated circuit: VLI - VL812
