BUCM32-CF05AB extension cable Gen2 USBC USBC 0.

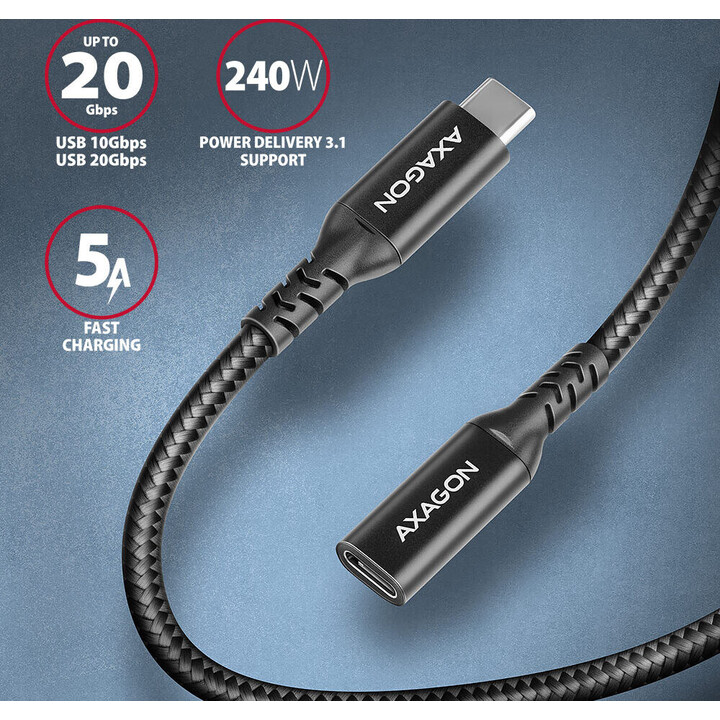

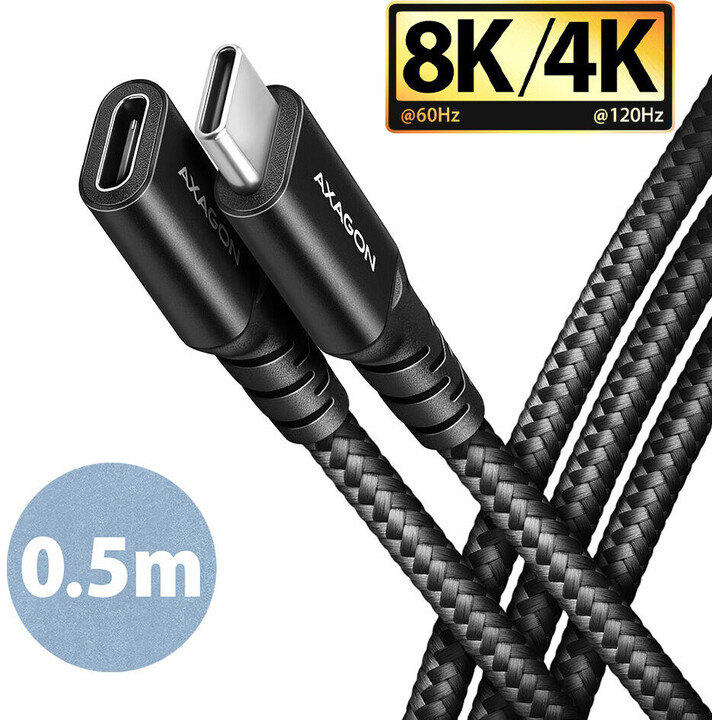

The Axagon BUCM32-CF05AB is a high-performance USB-C extension cable designed to extend the reach of your USB-C devices without compromising speed or power. With USB 3.2 Gen 2x2 support, it delivers data transfer rates up to 20 Gbit/s, making it ideal for fast data sync and high-bandwidth peripherals. The cable features a USB-C male connector on one end and a USB-C female connector on the other, both right-angled for easy routing in tight spaces.

Built for durability and reliability, this cable uses oxygen-free copper conductors, gold-plated contacts, and a nickel-plated connector housing. The braided thermoplastic elastomer (TPE) jacket provides flexibility and protection against wear. It supports USB Power Delivery up to 240 W (48 V / 5 A) and fast charging, allowing you to power laptops, tablets, phones, and other mobile devices. Additionally, DisplayPort Alternate Mode enables video output up to 7680 x 4320 pixels at 60 Hz, perfect for high-resolution displays.

Características principales

• USB 3.2 Gen 2x2 for data transfer speeds up to 20 Gbit/s
• USB Power Delivery up to 240 W (48 V / 5 A) with fast charging support
• DisplayPort Alternate Mode for video up to 8K (7680 x 4320) at 60 Hz
• Gold-plated contacts and nickel-plated connector for reliable connectivity
• Braided TPE jacket and oxygen-free copper conductor for durability
• Right-angled male and female USB-C connectors
• Compact 0.5 m length, ideal for reducing cable clutter

Especificaciones

Preguntas frecuentes

What devices is this cable compatible with?

It is compatible with notebooks, phones, tablets, and other mobile devices that have a USB-C port. It supports USB 3.2 Gen 2x2, USB Power Delivery, and DisplayPort Alternate Mode.

Does this cable support fast charging?

Yes, it supports fast charging and USB Power Delivery up to 240 W (48 V / 5 A).

Can I use this cable to connect a monitor?

Yes, it supports DisplayPort Alternate Mode and can drive a display up to 7680 x 4320 pixels at 60 Hz.

What is the maximum data transfer speed?

The maximum data transfer rate is 20 Gbit/s, thanks to USB 3.2 Gen 2x2.

Es para ti si...

• Necesitas extender la conexión USB-C de tu portátil, tablet o móvil sin perder velocidad.
• Buscas un cable que soporte carga rápida y hasta 240 W de potencia.
• Quieres conectar una pantalla de alta resolución mediante USB-C.
• Valoras conectores chapados en oro y materiales duraderos como el cobre libre de oxígeno.
