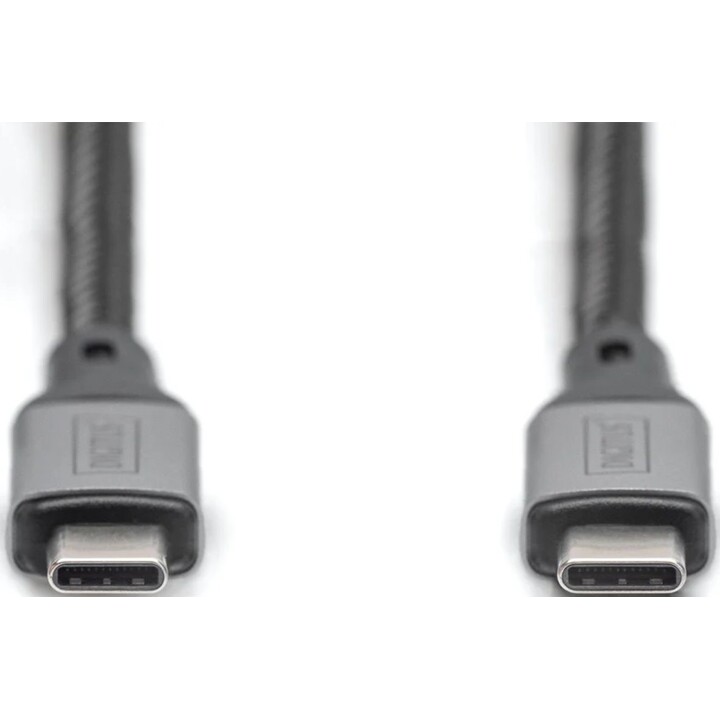

Digitus USB 4 connection cable, Type C to Type C, aluminium housing Nylon Braid 8K/30 Hz, 1 m

Description

Digitus DB-300443-010-S USB cable USB4 Gen 2x2 1 m USB C Black

Supports the following transmission modes: Audio/Video/Data transmission/Charging function

- Supports data transfer rates of up to 40 Gbit/s

- Supports 20V, 5A, 240W USB Power Delivery Revision 3.1 (PD 3.1)

- Backward compatible with Thunderbolt 3, USB 3.2, USB 3.1, and USB 2.0

- Supports DisplayPort (2.0) and PCi Express video/audio signals

- Supports video/audio up to 8K (7680 × 4320 pixels at 60Hz)

- USB-IF certified

The DIGITUS® USB 4.0 Gen 3 cable with aluminum housing is the universal solution among cables. The Thunderbolt 3 protocol enables PCI Express, DisplayPort, and Host-to-Host transmissions. With this cable, you can transmit audio/video, data, and power signals. The data transfer rate is 40 Gbit/s. This means the transfer speed is 8 times faster than USB 3.0 (5 Gbit/s), 4 times faster than USB 3.1 (10 Gbit/s), and 2 times faster than USB 3.2 (20 Gbit/s). This allows you to transfer large amounts of data, such as movies and music, in just a few seconds. Video signals are transmitted in 8K at a refresh rate of 60 Hz. In addition, 4K resolution (3840 x 2160) is supported at 60 Hz (dual mode possible). Fast charging is guaranteed with USB Power Delivery Revision 3.1. With the appropriate charger, you can quickly charge your smart devices with a maximum of 240 W (5 A/48 V). The USB Type-C interface offers wide-ranging compatibility with devices with this connection.

Key product points

Supported: 8K (7680x4320) at 60Hz

Supports: 4K (3840 x 2160) at 60Hz (dual possible)

Supports data transfer speeds of up to 40 Gbits/s

Backwards compatible with Thunderbolt 3, USB 3.2, USB 3.1 and USB 2.0

Compatible with USB Power Delivery Revision 3.1 (PD 3.1) 48V, 5A, 240W

Conductor material: CU

Connection 1: USB Type C male connector

Connection 2: USB Type C male connector

Connector 1 dimensions: 6.65*2.4 mm

Connector 2 dimensions: 6.65*2.4 mm

Connection color: Black

Contact surface: gold-plated

Number of PINs: 22

Cover: sealed

Cable outer material: PP

Connector housing: Aluminum

Cable outer diameter: 5.0 mm

Tensile strength: 4 kg/min

AWG: 30

5A 48V

Curvature radius: 60

Cable color: Black

Shielding: Double shielding

USB-C Product: Yes

Total weight: 45 g

Manufacturer's instructions:

When connecting a USB-C monitor/TV/projector to a USB Type-C equipped PC, please make sure your USB-C display supports DisplayPort signal output.

Video output capability depends on your laptop's graphics card and the connected monitor. Some displays also limit the available resolution.

To use dual 4K output, the USB 4 device must support the PD3.1 protocol.

Characteristics

USB version: USB4 Gen 2x2

Connector 1: USB C

Connector 2: USB C

Connector 1 Gender: Male

Connector 2 Gender: Male

Connector Form Factor 1: Straight

Connector Form Factor 2: Straight

AWG wire gauge: 30

Connector material: Aluminum

Connector contacts plated: Gold

Magnetically shielded: Yes

Cable jacket material: Polypropylene

Cable jacket type: Extremely flexible

ferrite core: No

Maximum data transfer rate: 40000 Mbit/s

Transfer rate (max): 40 Gbit/s

Product color: Black

Cable type: Round cable

Plug and Play: Yes

USB Power Delivery: Yes

USB Power Delivery Revision: 3.0

USB Power Delivery up to: 100 W

Maximum resolution: 7680 x 4320 pixels

Maximum refresh rate: 60 Hz

Weight and dimensions

Cable length: 1 m

Cable diameter: 5 mm

Bending radius (min.): 6 cm

Packaging

Package width: 230 mm

Package depth: 55 mm

Package height: 20 mm

Package weight: 77.312 g

Package contents

Quantity per package: 1 piece(s)
