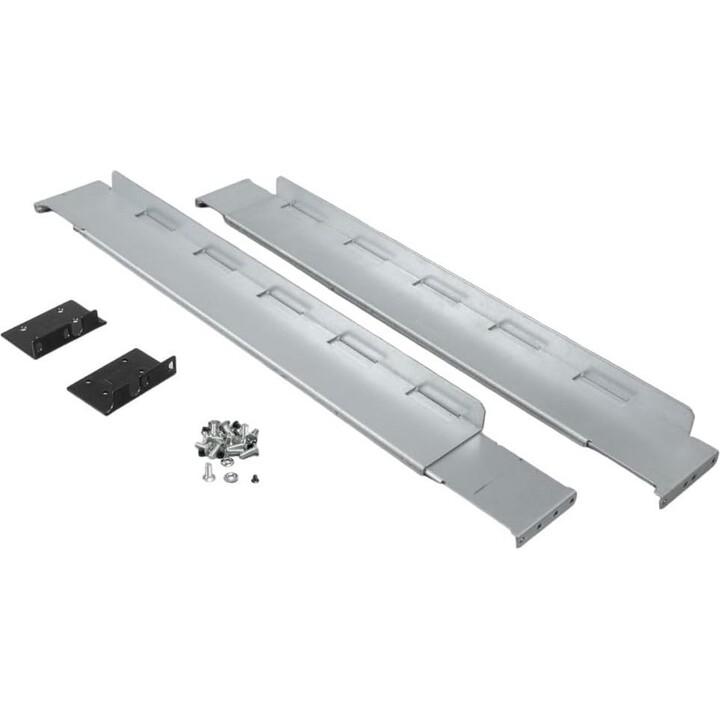

9rk Eaton Rack Kit 9px/9sx

Function and compatibility

• Rack-mount rail-kit designed to support the weight and ease the insertion/removal of UPS and associated modules.

• Compatible with Eaton 9PX and 9SX UPS in 3U format from 3 to 11 kVA, including models such as 9PX3K3UN and related variations, as well as some SmartOnline 5-6 kVA.

• Designed as a spare or replacement kit for the original rails included with certain 9PX/9SX models and EBM modules.

Physical characteristics

• Rail kit format for 4-post racks (4-post rail kit), providing robust and stable support for heavy equipment.

• Approximate length of 69 cm, weighing around 4 kg, reflecting a solid metal construction suitable for power equipment.

• Black/silver colour, in line with the usual design of professional rack infrastructures.

Depth range and adjustment

• Extendable structure to suit different rack depths; commercial documentation indicates typical adjustment from about 650 mm to 1050 mm, covering rack depths from 800 mm to 1200 mm.

• Maximum adjustable depth of approximately 41.34" (about 105 cm), allowing it to fit a wide range of 19" racks.

Intended use in professional environments

• Designed for data centre environments, communications rooms and distribution racks where 9PX/9SX UPS and their battery expansions are installed.

• Allows secure, aligned and fully supported mounting of the UPS weight, reducing stress on the front ears and facilitating maintenance or replacement.
