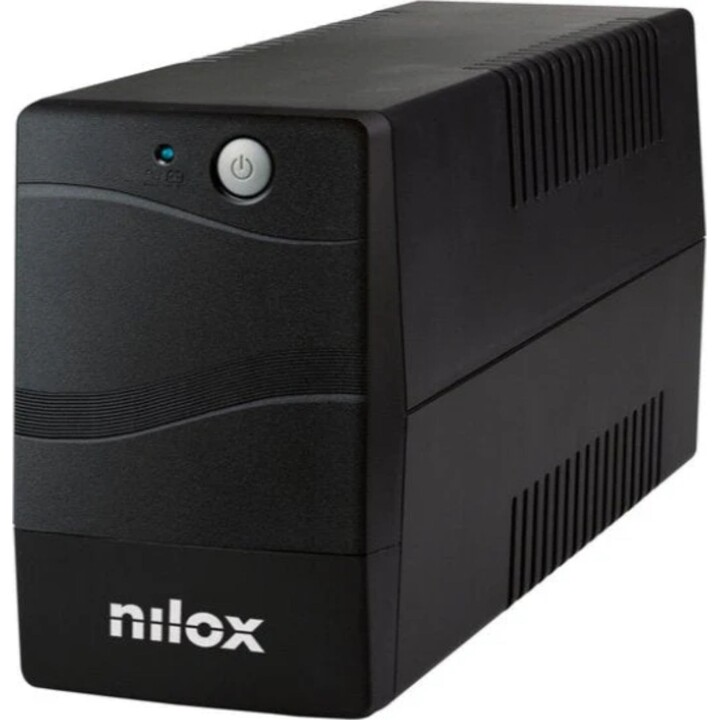

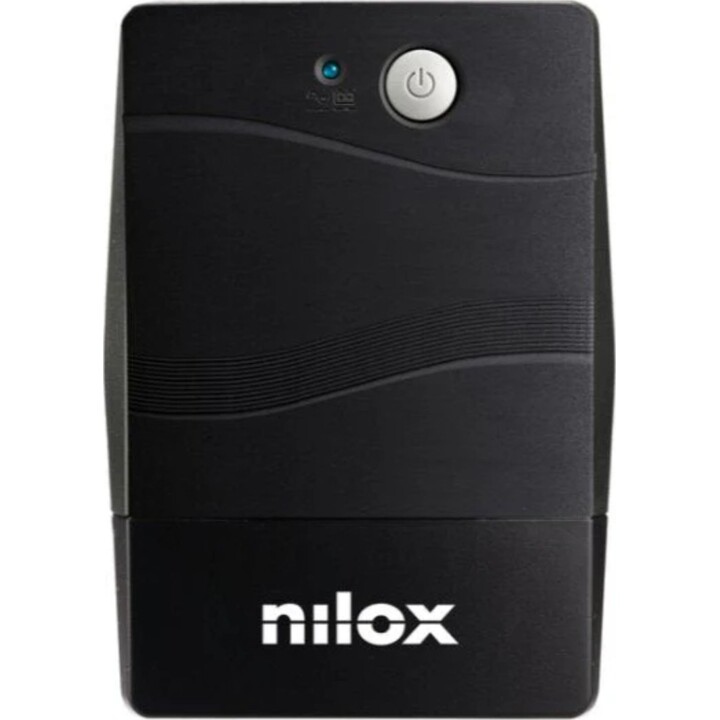

Nilox UPS Line interactive 0.8 kVA 560 W

Description

Nilox UPS PREMIUM LINE INT. 800 VA uninterruptible power supply (UPS) Line interactive 0.8 kVA 560 W

Key product points

Voltage stabilization using AVR

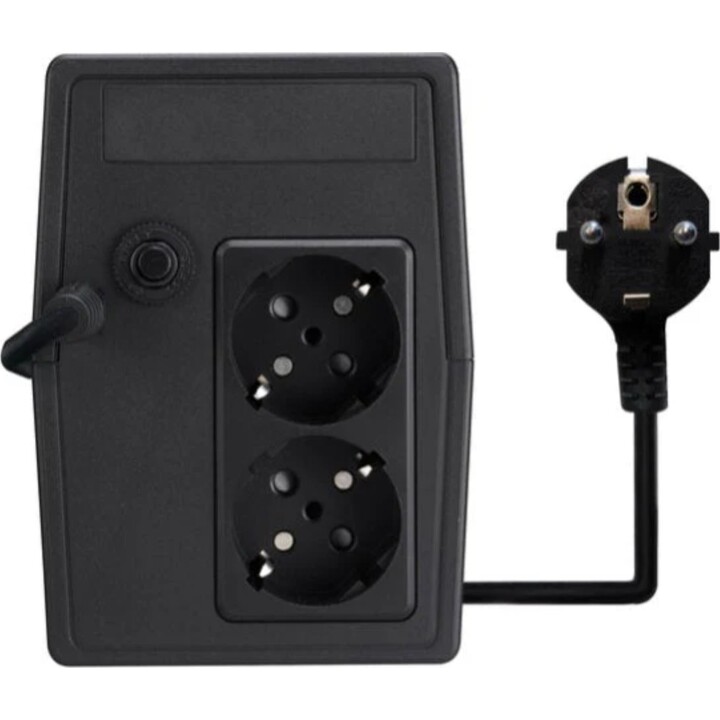

2 blackout protected outlets

The Interactive 800VA UPS Line is perfect for protecting computers and peripherals from blackouts, filtering out network disturbances: the latter, which are very frequent, are very harmful to electronic equipment and cause failures over time.

Avoiding these problems means increasing the average lifespan of all connected devices and being able to save your work with complete peace of mind in the event of a power line failure.

Line Interactive technology, thanks to the AVR (Automatic Voltage Regulator) system, allows for intelligent management of voltage and battery life, extending its useful life. This is because in a UPS without AVR, when the input voltage goes beyond the established threshold, the battery starts operating to supply the connected loads. The regulator, for its part, ensures that the voltage returns to optimal parameters even when significant changes occur, without immediately resorting to the battery, which is activated only when the changes are extreme and cannot be corrected.

The 800 VA Line Interactive Unit NXGCLI8001X5 is equipped with a 5Ah battery, replacement battery part number 17NXBA5A00001T - 17NXBA5A00001

Characteristics

UPS Topology: Line Interactive

Output power capacity (VA): 0.8 kVA

Output power: 560 W

Operating input voltage (min): 220 V

Operating input voltage (max): 230 V

Output operating voltage (min): 220 V

Output operating voltage (max): 230 V

Battery

Battery capacity: 5 Ah

Battery voltage: 12 V

Number of battery cells: 1

Typical backup time at full load: 5 min

Typical backup time at half load: 10 min

Design

Form Factor: Mini Tower

Product color: Black

Regulatory approvals

Certification: CE

Weight and dimensions

Width: 101 mm

Depth: 279 mm

Height: 142 mm

Weight: 3.46 kg
