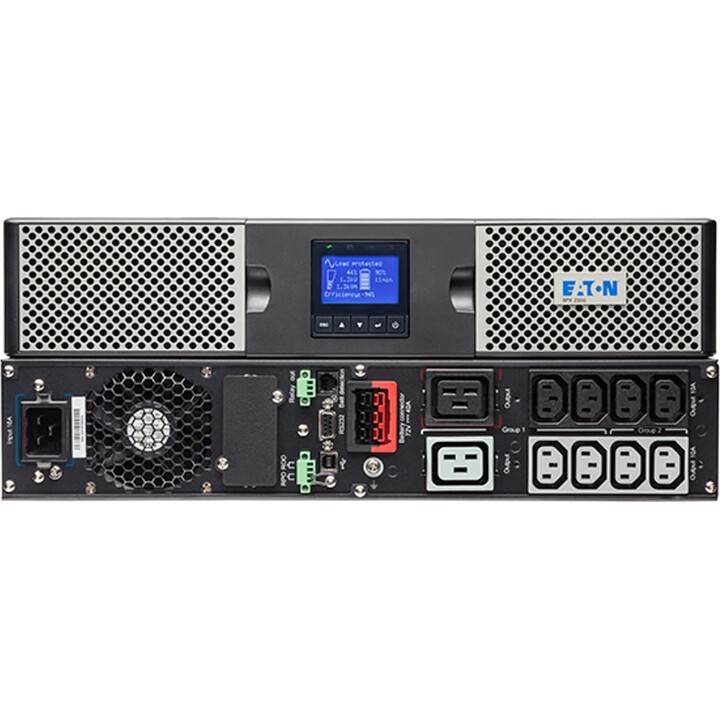

The Eaton 9PX3000IRT2U is a high-performance double conversion online UPS designed for critical IT infrastructure. With 3000VA/2700W capacity, it provides pure sine wave output and protects against all nine power disturbances. The 2U form factor fits standard racks or can be used as a tower, making it versatile for data centers, server rooms, and network closets.
This UPS features an intuitive LCD display for real-time monitoring and configuration. It includes 8 IEC C13 outlets, with 4 supporting load shedding to extend runtime for critical loads. The built-in network card slot allows for remote management via SNMP, web, or Eaton's Intelligent Power Manager software. Advanced battery management extends battery life and provides early warning of battery failure.
| Model | 9PX3000IRT2U |
| Power Rating | 3000VA / 2700W |
| Topology | Double conversion online |
| Form Factor | 2U rackmount / tower |
| Output Voltage | 230V nominal |
| Output Waveform | Pure sine wave |
| Outlets | 8x IEC C13 (4x load shedding) |
| Input Connection | IEC C20 |
| Battery Type | Sealed lead-acid, hot-swappable |
| Typical Runtime | ~10 min at full load |
| Communication | USB, RS-232, network card slot |
| Display | LCD with status indicators |
| Dimensions (HxWxD) | 86 x 438 x 600 mm |
| Weight | 32.5 kg |
