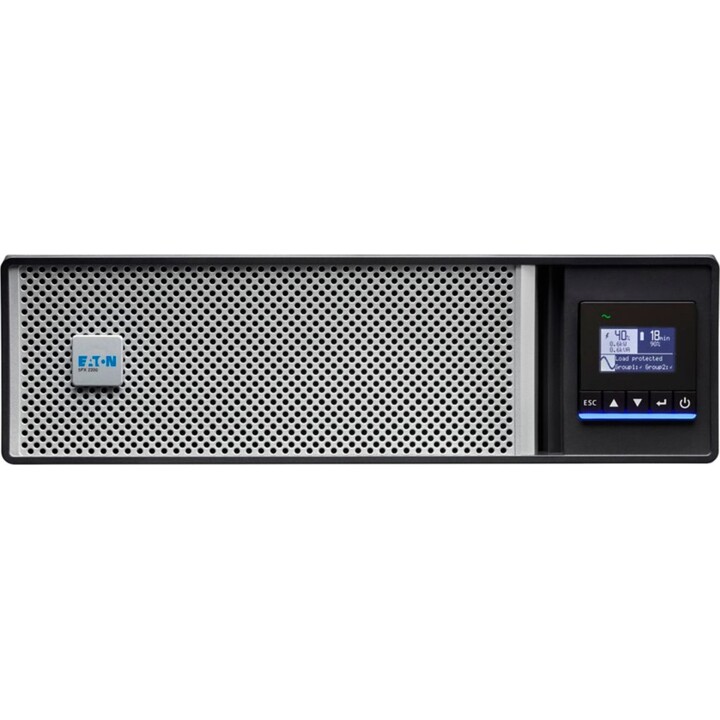

Eaton 5px 2200i rt3u g2

Description

Eaton 5PX2200IRT3UG2, Line interactive, 2.2 kVA, 2200 W, Pure sine wave, 160 V, 294 V

Key product points

Interactive line

2.2 kVA 2200 W

Waveform: Pure sine wave

Rackmount/Tower or Rackmount/Tower Black

Characteristics

UPS Topology: Line Interactive

Output power capacity (VA): 2.2 kVA

Output power: 2200 W

Waveform: Pure sine wave

Operating input voltage (min): 160 V

Operating input voltage (max): 294 V

Input frequency: 47/70 Hz

Noise level: 40 dB

Power protection functions: Over-discharge

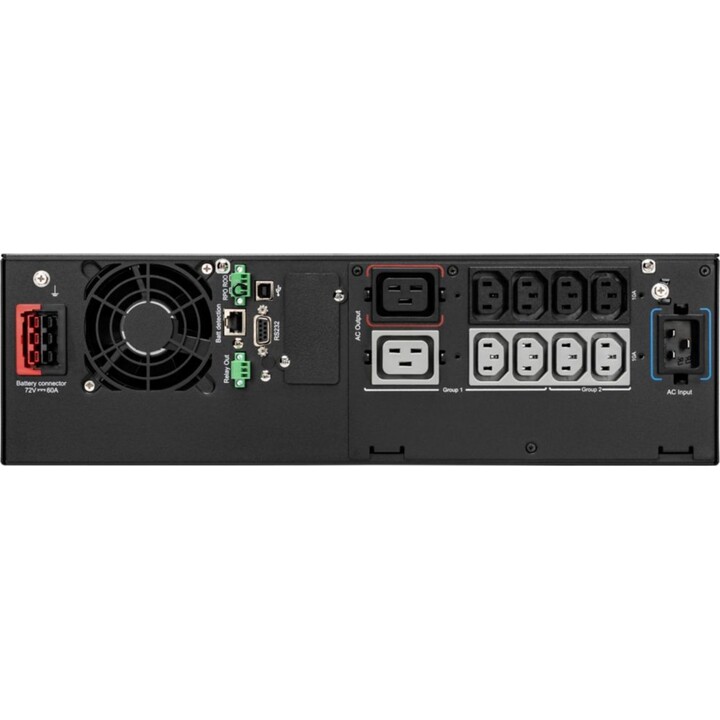

Ports and Interfaces

AC Outlet Type: C13 coupler, C19 coupler

Connector: C20 coupler

USB port: Yes

Serial interface: Yes

Serial interface type: RS-232

Serial port: 1

Battery

Hot-swap battery: Yes

Automatic battery test: Yes

Design

Form Factor: Rackmount/Tower or Rackmount/Tower

Rack capacity: 3U

Product color: Black

Display type: LCD

LED indicators: Yes

Environmental conditions

Operating temperature range: 0 - 40°C

Regulatory approvals

Certificates of conformity: CE

Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm

Safety regulation & standards

Safety: IEC/EN 62040-1, UL1778, CSA22.2

Sustainability

Sustainability compliance: Yes

Sustainability Certifications: ENERGY STAR

Weight and dimensions

Width: 438 mm

Depth: 483 mm

Height: 129 mm

Weight: 27.5 kg
