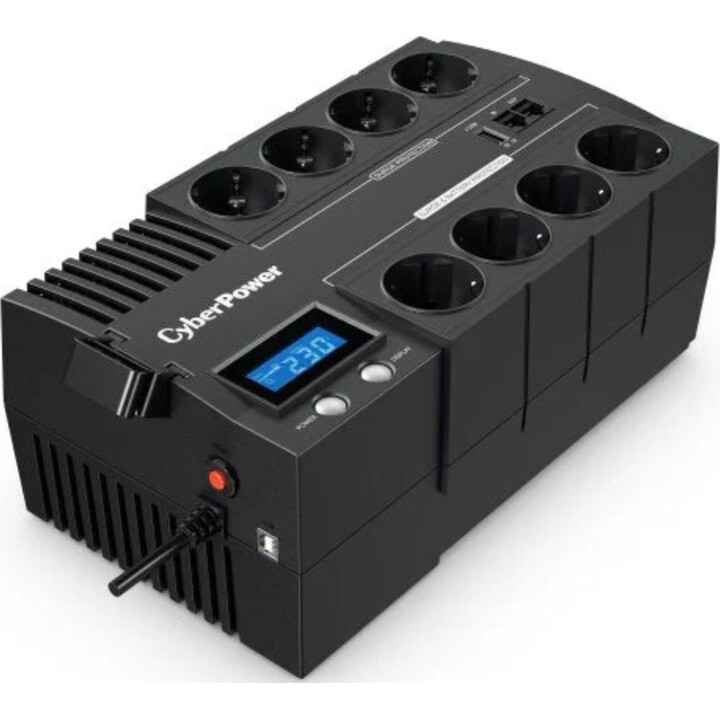

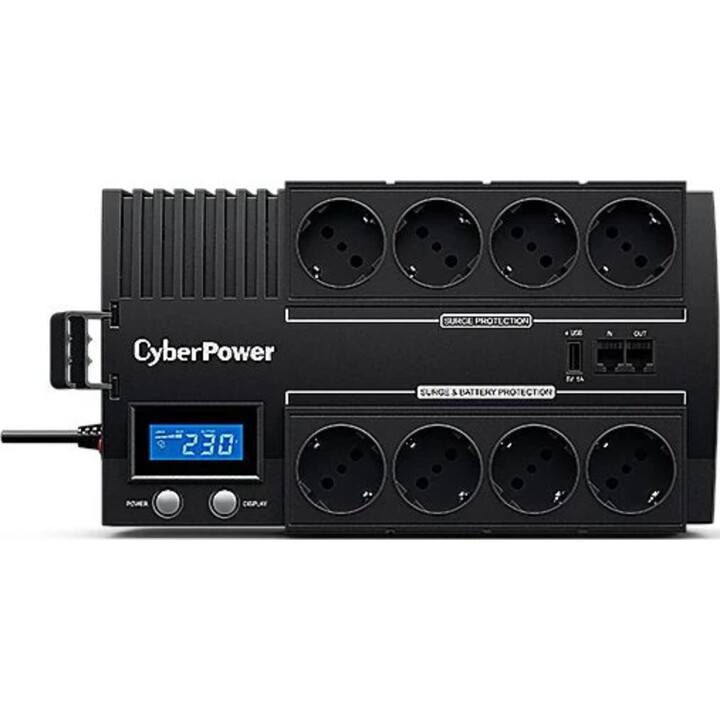

Cyberpower BR700ELCD Interactive Line UPS / 700VA-420W / 8 Outputs / Block Format

Description

CyberPower BR700ELCD Uninterruptible Power Supply (UPS) Line Interactive 0.7 kVA 420 W 8 AC Outlets

CyberPower BR700ELCD, Line Interactive, 0.7 kVA, 420 W, Sine, 165 V, 290 V

Key product points

Interactive line

0.7 kVA 420 W

Waveform: Sine

8 AC outlets

Sealed Lead Acid (VRLA) 230 V

Black Desk

Characteristics

UPS Topology: Line Interactive

Output power capacity (VA): 0.7 kVA

Output power: 420 W

Waveform: Sine

Operating input voltage (min): 165 V

Operating input voltage (max): 290 V

Input frequency: 50/60 Hz

Output operating voltage (min): 220 V

Output operating voltage (max): 240 V

Output frequency: 50/60 Hz

Automatic Voltage Regulation (AVR): Yes

Energy surge rate: 150 J

Response time: 4 ms

Heat dissipation: 71 BTU/h

EMI/RFI Noise Filter: Yes

Overload protection: Yes

Overload protection functions: Fax, Modem, Network, Telephone

Power protection functions: Short circuit

Audible alarm(s): Yes

Audible Alarm Modes: Sounds an alarm when switching to battery, Fault, Low Battery Alarm, Overload Alarm

Ports and Interfaces

AC output type: Type F

Number of AC outlets: 8 AC outlets

USB port: Yes

Number of USB 2.0 ports: 1

USB port type: USB Type A

Modem ports (RJ-11): 2

Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Sealed Lead Acid (VRLA)

Battery voltage: 230 V

Number of batteries supported: 1

Typical backup time at full load: 1.5 min

Typical backup time at half load: 9 min

Battery recharge time: 8 h

Replacement battery cartridge: RBP0083

Design

Form Factor: Desktop

Housing material: Plastic

Cable length: 1.5 m

Product color: Black

Display type: LED

LED indicators: Yes

Environmental conditions

Operating temperature range: 0 - 40°C

Storage temperature range: -20 - 50 °C

Relative humidity range for operation: 0 - 90%

Relative humidity range during storage: 0 - 90%

Operating altitude: 0 - 3000 m

Regulatory approvals

Certificates of conformity: CE, EAC, RoHS

Sustainability

Sustainability compliance: Yes

Weight and dimensions

Width: 166 mm

Depth: 288 mm

Height: 118 mm

Weight: 5.3 kg

Packaging

Package width: 158 mm

Package depth: 325 mm

Package height: 230 mm

Package weight: 6.05 kg
