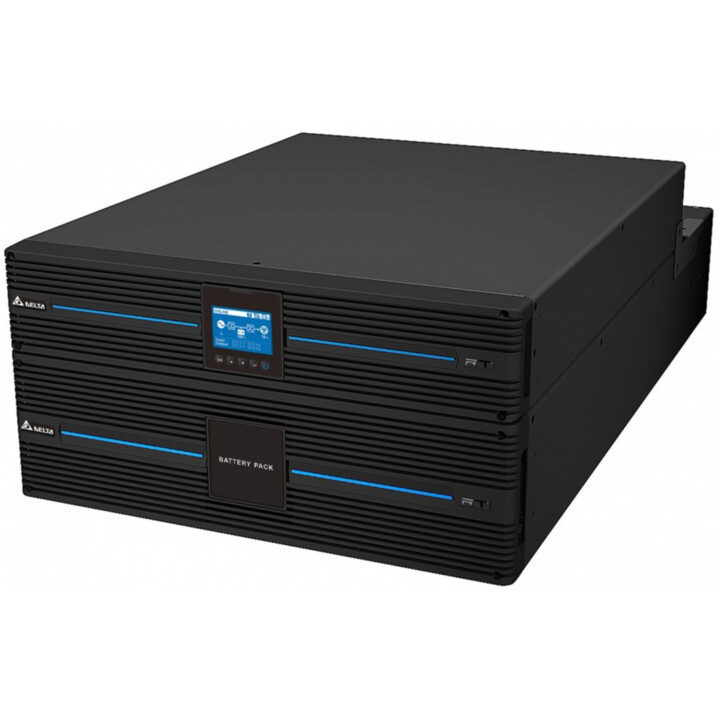

UPS UPS103R2RT0B035 Amplon RT-10K Standard; battery module 20x9Ah and bypass with distribution C13x6; C19x5

The Delta Electronics Amplon RT-10K Standard is a 10 kVA uninterruptible power supply designed for rack installation. It uses an online double-conversion architecture to deliver continuous, conditioned power to connected equipment. The UPS operates from a single-phase 230V input via a terminal power port and provides output through 6 x IEC-C13 and 5 x IEC-C19 ports, with a bypass and distribution configuration included.

This model, reference UPS103R2RT0B035, includes a battery module made of 20 x 9Ah batteries. It features a graphical LCD display with LED indicators for monitoring, and a 1 x REPO (Remote Emergency Power Off) I/O connector. The chassis is black and measures 440 x 750 x 218 mm, suitable for standard rack mounting.

Environmental operating range is 0 to 55 degrees C, with a note that between 40 and 50 degrees C the UPS parameters should be reduced to 75% of its capacity. Operating humidity is 5 to 95% RH non-condensing, and the noise level is 50 dB.

Características principales

• 10 kVA apparent power
• Online double-conversion UPS architecture
• Single-phase 230V input
• Rack chassis
• Battery module 20x9Ah
• Bypass with distribution: 6 x IEC-C13 and 5 x IEC-C19 output ports
• Graphical LCD display with LED indicators
• 1 x REPO I/O connector
• Black color
• Dimensions: 440 x 750 x 218 mm

Especificaciones

Preguntas frecuentes

What is the power capacity of this UPS?

The Delta Electronics Amplon RT-10K Standard has an apparent power of 10 kVA.

What type of UPS architecture does it use?

It uses an online double-conversion architecture.

What input and output connections does it provide?

Input is via a terminal power port. Output includes 6 x IEC-C13 and 5 x IEC-C19 ports, with a bypass and distribution configuration.

What are the operating temperature and humidity ranges?

Operating temperature is 0 to 55 degrees C, but between 40 and 50 degrees C the UPS parameters should be reduced to 75% of its capacity. Operating humidity is 5 to 95% RH non-condensing.

Es para ti si...

• Necesitas una UPS de 10 kVA con conversión doble online para equipos críticos.
• Buscas una instalación en rack con dimensiones de 440 x 750 x 218 mm.
• Requieres distribución de salida con tomas IEC-C13 e IEC-C19.
• Valoras un módulo de batería de 20x9Ah y funciones de bypass.
• Necesitas monitorización mediante pantalla LCD gráfica con indicadores LED.
