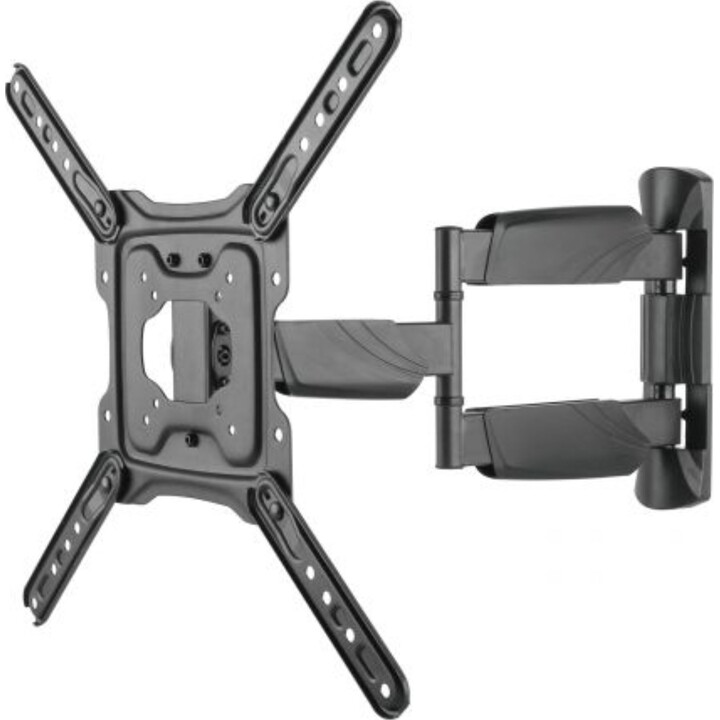

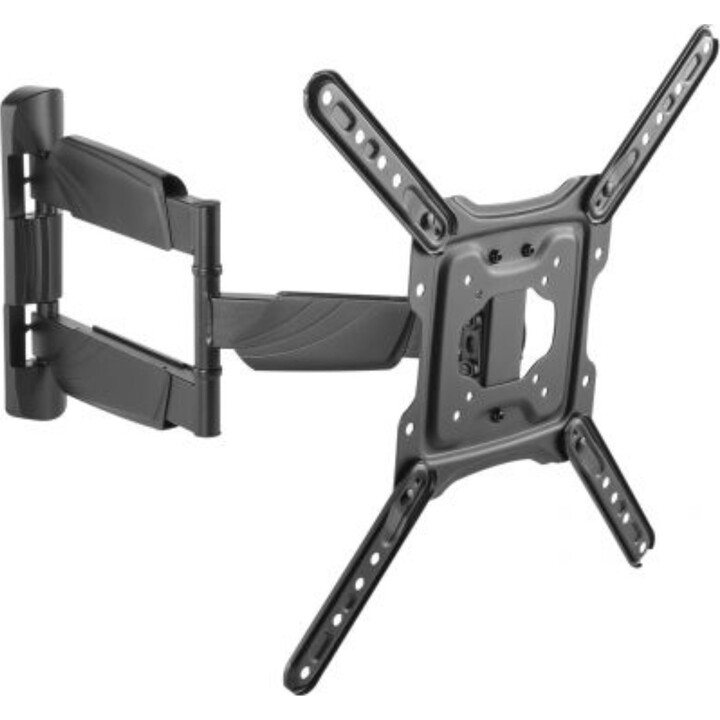

Ewent Easy Turn Wall Mount for Large TVs with 3 Articulation Points

EW1525

Suitable for TVs up to 55 inches

Con soporte VESA: 75x75, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400

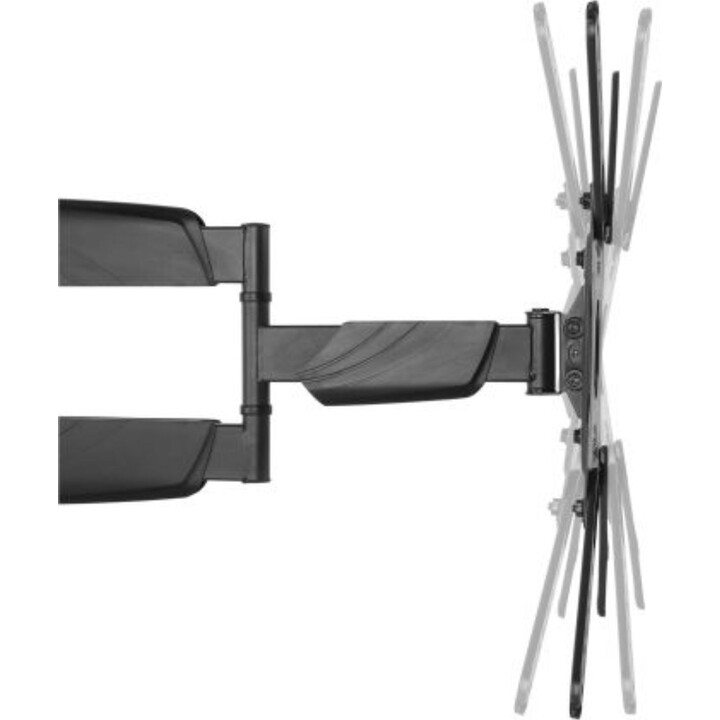

Three points of articulation with a maximum extension of 51 cm

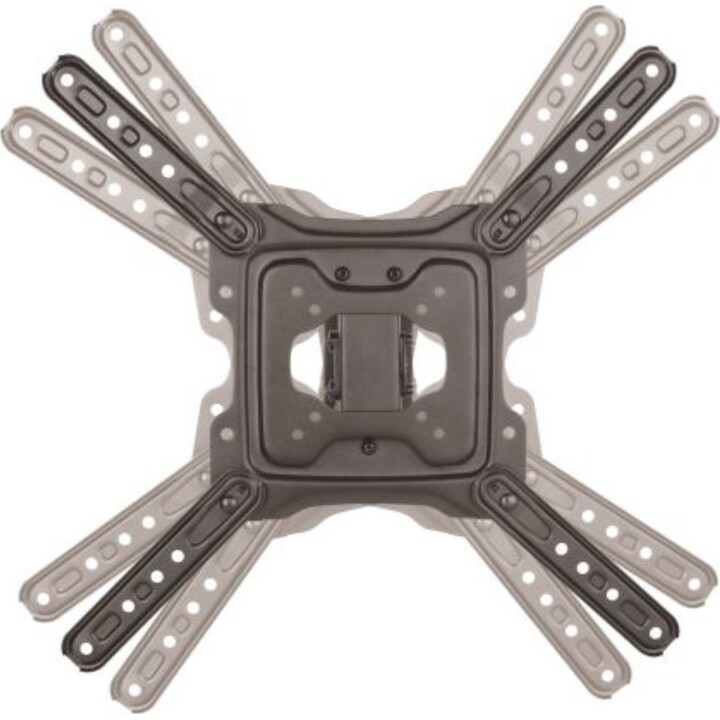

Tilt angle: +5°/-12°

Details

The EW1525 Easy Turn Large TV Wall Mount is the ideal solution for mounting your TV (up to 55 inches and weighing up to 35 kg) on ​​the wall. The mount is compatible with all TVs that support VESA mounting patterns of 75x75, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, and 400x400. The TV can be tilted up and down by +5°/-12° and swiveled left and right by +15°/-15°. The EW1525 wall mount features three articulation points with a maximum extension of 51 cm. Rotate the TV in any direction to achieve the optimal viewing angle. In addition, the EW1525 stand also features +3°/-3° level adjustment. Cables remain hidden thanks to the cable management system.

The simple installation system allows you to first install the bracket on the wall. Then, attach the VESA mount to the TV and connect the VESA mount to the wall bracket using the provided bolts and nuts.

Technical data

Material: Steel, Plastic,Metal

Surface Finish: Powder coating

Colour: Black

Product Size: 435x435x515mm

Installation: Solid wall

Suggested Screen Size: up to 55 "

VESA: 75x75;100x100;200x100;200x200;300x200;400x200;300x300;400x300;400x400

Tilt: -15° / +5°

Swivel: -90° / +90°

Level Adjustment: +3° / -3°

Profile: 49-515mm

Weight Capacity Range: 0-35 kg

Cable Management: yes

EAN:

8032958186286

Logistic

Product Weigth (g): 2553.00 g

Retail packaging Dimension (mm): 370 x 70 x 275

Retail packaging Weigth (g): 3570 g

Master carton Qty: 6

Master carton Dimension (cm): 40,5 x 37,5 x 28,5

Master carton Weigth (kg): 22.00 kg
