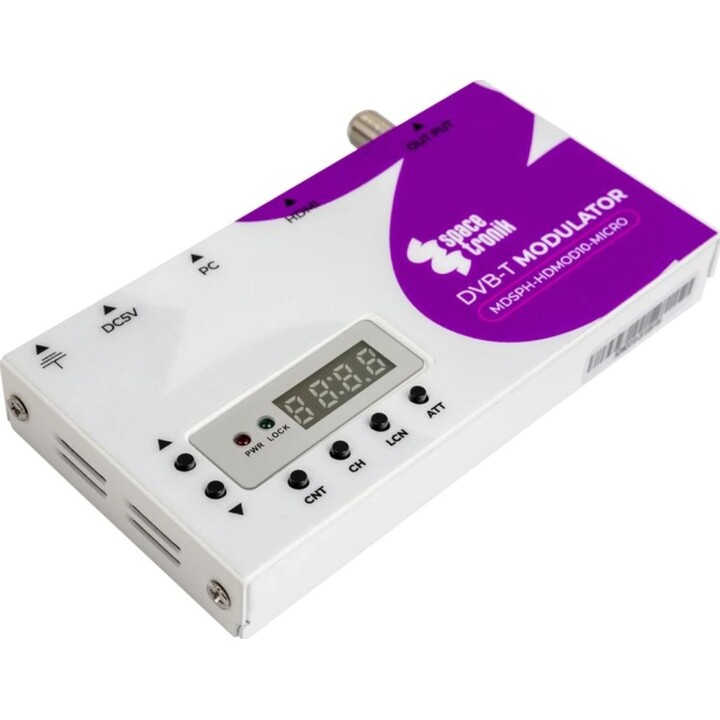

DVB-T Modulator HDMOD-10/MICRO
DVB-T Modulator HDMOD-10/MICRO
The Spacetronik HDMOD-10/MICRO is a compact, professional-grade DVB-T modulator designed for digital TV headends and distribution systems. It accepts HDMI, CVBS, and IP inputs, encoding them into MPEG-4 AVC/H.264 streams with resolutions up to 1080p. The unit supports DVB-T COFDM modulation with selectable 2K or 8K FFT modes, ensuring compatibility with various terrestrial networks.
With an IF output at 36.125 MHz and RF output covering 47-862 MHz, the HDMOD-10/MICRO integrates seamlessly into existing RF distribution systems. Its 1RU rackmount chassis allows for efficient installation in equipment racks. The device also features a front-panel LCD and control buttons for easy configuration, plus Ethernet connectivity for remote management via web interface.
| Input Interfaces | HDMI, CVBS (BNC), Ethernet (RJ45) |
| Video Encoding | MPEG-4 AVC/H.264, up to 1080p@60fps |
| Audio Encoding | MPEG-1 Layer II, AAC |
| Modulation Standard | DVB-T COFDM |
| FFT Mode | 2K, 8K |
| Constellation | QPSK, 16QAM, 64QAM |
| Code Rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Output Frequency | IF: 36.125 MHz; RF: 47-862 MHz |
| Output Level | -30 to +10 dBm (adjustable) |
| Ethernet | 10/100 Base-T, web management |
| Chassis | 1RU, 19-inch rackmount |
| Power Supply | AC 100-240V, 50/60Hz |
-
