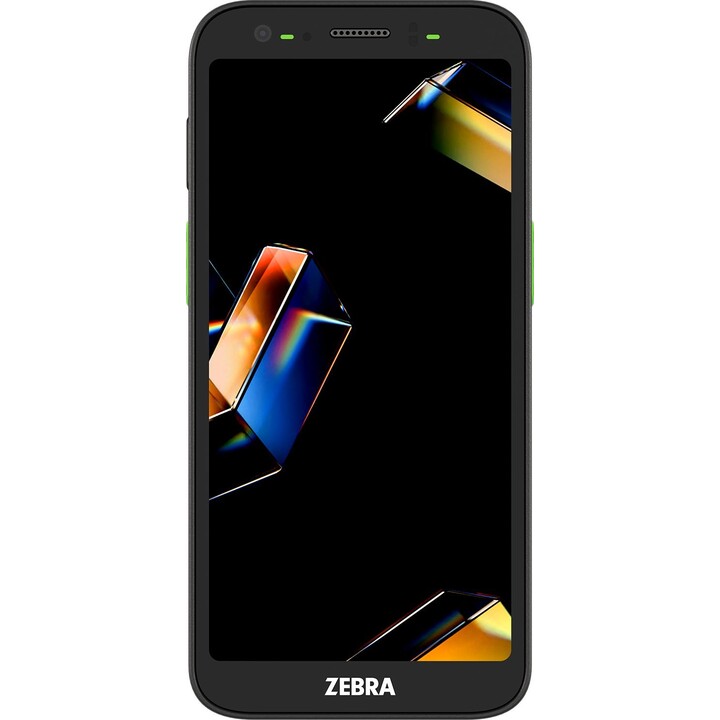

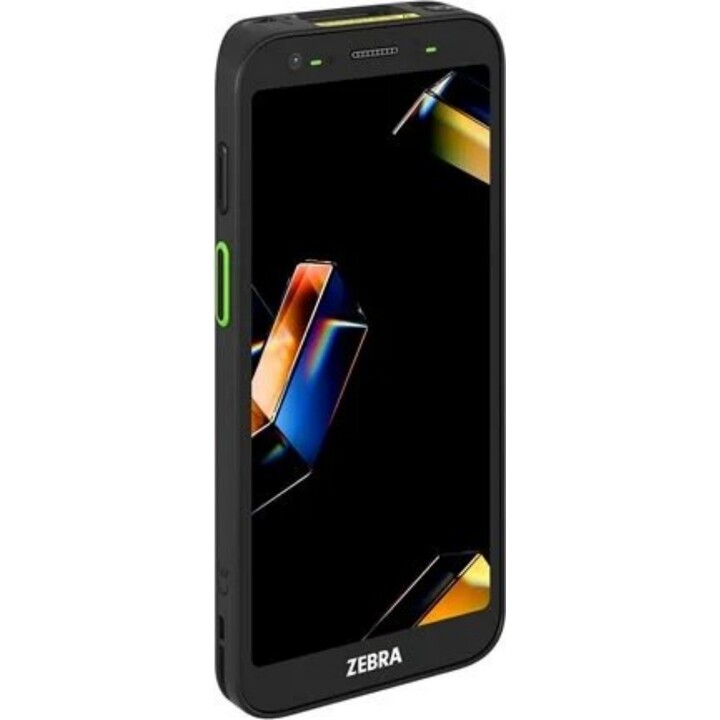

Zebra TC501 Data collection terminal rugged Android 256 GB UFS card 6" colour AMOLED 2160 x 1080 rear camera front camera barcod
The Zebra TC501 is a rugged Android data collection terminal built to bring AI-capable mobile computing to frontline workers. It combines a powerful Qualcomm Dragonwing processor running at 2.9 GHz with 12 GB of internal memory and 256 GB of UFS flash storage, so demanding applications and data-intensive workflows can run smoothly on the device.
Its 6-inch colour AMOLED touchscreen delivers a 2160 x 1080 pixel resolution with 1500 cd/m² brightness and Corning Glass protection, while multi-touch optical touch technology supports gloved or stylus use in demanding environments. Connectivity is comprehensive: Wi-Fi 7 tri-band (2.4 GHz / 5 GHz / 6 GHz), Bluetooth 6.0 with Bluetooth Low Energy, 5G and 4G LTE data networks, NFC, and satellite positioning via GPS, GLONASS, BeiDou and Galileo.
For data capture, the TC501 includes a 50 MP rear camera with autofocus and integrated flash, an 8 MP front camera, dual microphones, stereo speakers, and an RFID reader. A microSD card slot supports MicroSD (TransFlash) cards up to 2 TB, and the device offers one USB 2.0 port and one USB Type-C 3.2 Gen 1 port.
Características principales
- 6" colour AMOLED touchscreen, 2160 x 1080 pixels, 1500 cd/m², Corning Glass
- Qualcomm Dragonwing processor at 2.9 GHz, 8 threads
- 12 GB internal memory and 256 GB UFS flash storage
- Wi-Fi 7 tri-band, Bluetooth 6.0 with BLE, 5G/4G LTE, NFC
- GPS, GLONASS, BeiDou and Galileo satellite positioning
- 50 MP rear camera with autofocus and flash, 8 MP front camera
- MicroSD (TransFlash) support up to 2 TB, USB 2.0 and USB Type-C 3.2 Gen 1
Especificaciones técnicas
| Product type | Rugged Android data collection terminal |
| Brand | Zebra |
| Model / Reference | TC501G-341B2C1AA1-A6 |
| EAN | 5291485019341 |
| Display type | AMOLED |
| Display diagonal | 15.2 cm (6") |
| Display resolution | 2160 x 1080 pixels |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Optical |
| Screen brightness | 1500 cd/m² |
| Screen glass type | Corning Glass |
| Internal memory | 12 GB |
| Flash memory | 256 GB |
| Flash memory type | UFS |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Processor manufacturer | Qualcomm |
| Processor frequency | 2.9 GHz |
| Processor family | Qualcomm Dragonwing |
| Number of threads | 8 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 6.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Data network | 5G, 4G |
| 4G standard | LTE |
| Near Field Communication (NFC) | Yes |
| GPS (satellite) | Yes |
| GLONASS | Yes |
| BeiDou | Yes |
| Galileo | Yes |
| Built-in camera | Yes |
| Rear camera resolution | 50 MP |
| Front camera resolution | 8 MP |
| Autofocus | Yes |
| Built-in flash | Yes |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Speakers | Stereo |
| USB 2.0 ports quantity | 1 |
| USB Type-C 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| RFID reader | Yes |
Preguntas frecuentes
¿Qué sistema operativo utiliza el Zebra TC501?
El Zebra TC501 es un terminal Android. La información disponible confirma que funciona con Android, aunque no se especifica la versión exacta en los datos proporcionados.
¿Cuánta memoria y almacenamiento tiene?
Incluye 12 GB de memoria interna y 256 GB de memoria flash tipo UFS. Además, admite tarjetas MicroSD (TransFlash) de hasta 2 TB.
¿Qué opciones de conectividad ofrece?
Ofrece Wi-Fi 7 tribanda (2.4 GHz / 5 GHz / 6 GHz), Bluetooth 6.0 con Bluetooth Low Energy, redes de datos 5G y 4G LTE, NFC y posicionamiento por satélite GPS, GLONASS, BeiDou y Galileo.
¿Qué capacidades de captura de datos incluye?
Dispone de cámara trasera de 50 MP con autofoco y flash integrado, cámara frontal de 8 MP, lector RFID, dos micrófonos y altavoces estéreo.
Es para ti si...
- Necesitas un terminal robusto Android para recogida de datos en primera línea
- Buscas una pantalla AMOLED de 6" con alta resolución y brillo de 1500 cd/m²
- Requieres 256 GB UFS de almacenamiento y 12 GB de memoria interna
- Valoras conectividad avanzada: Wi-Fi 7, Bluetooth 6.0, 5G/4G LTE, NFC y GPS multiconstelación
- Necesitas captura de datos con cámara de 50 MP, lector RFID y soporte microSD hasta 2 TB
