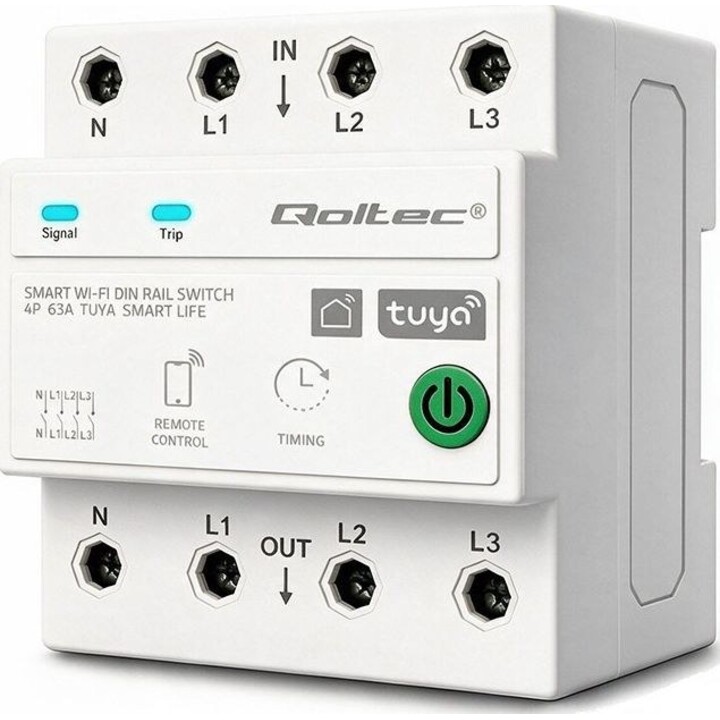

Three phase 63A relay for DIN rail 3P+N Timer

Reference: 50976
EAN: 5901878509761
Condition: New
Price: €47.18
VAT included
€38.36 Without tax
Three-phase 63A relay for DIN rail with integrated timer and 3P+N configuration. Ideal for switching and controlling three-phase electrical loads efficiently and reliably in industrial and commercial installations.

Buy it now and receive it between Thursday 3 December and Monday 7 December with GLS / UPS / DHL €6.09

from €11.13 shipping

Product availability: In stock
Share
Spotted a mistake on this page? Tell us

Tell us what is wrong and we will check it. No details needed.

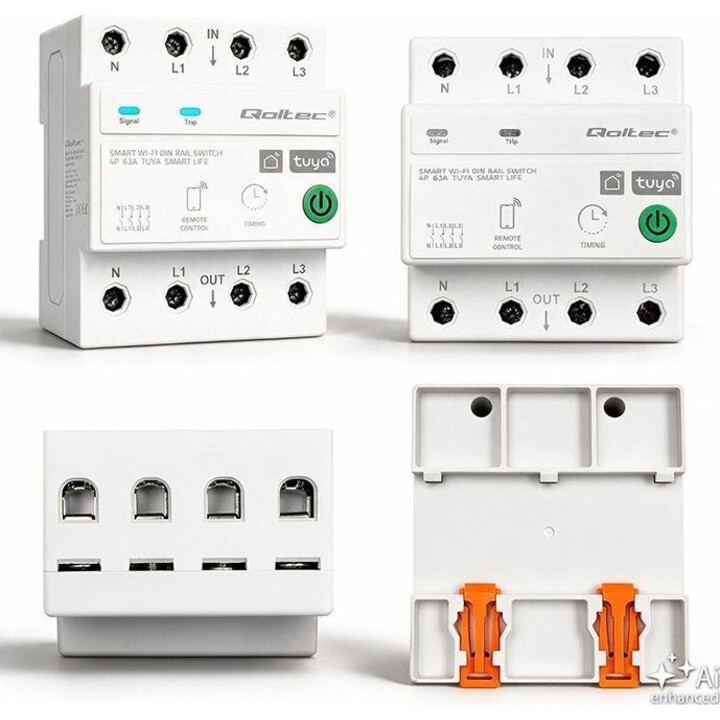

Three phase 63A relay for DIN rail 3P+N Timer

The Qoltec three-phase relay for DIN rail is a robust and precise solution for controlling high-power three-phase loads. With a rated current range of 1A to 63A and a rated voltage of 3x230V, it is ideal for industrial and commercial applications requiring reliable switching and timing functions. The integrated timer allows for automated control of connected devices, enhancing energy efficiency and operational convenience.

Designed for standard DIN rail mounting, this relay features a compact design with dimensions of 90 mm height, 80 mm width, and 70 mm depth, and a weight of 387 g. Its accuracy class of 1.0 ensures precise measurement and control, while the 50 Hz frequency compatibility aligns with common European power systems. Safety is paramount, and the unit includes a warning against opening the appliance while energised.

Whether you need to manage lighting, heating, or machinery in a three-phase setup, this Qoltec relay offers dependable performance and easy installation. The 3P+N configuration supports three phases plus neutral, making it suitable for a wide range of three-phase applications.

Características principales

  • Three-phase relay with integrated timer for automated control
  • Rated current adjustable from 1A to 63A
  • Rated voltage: 3x230V, frequency: 50 Hz
  • Accuracy class 1.0 for precise operation
  • Compact dimensions: 90 mm (H) x 80 mm (W) x 70 mm (D)
  • Lightweight at 387 g
  • Designed for DIN rail mounting (3P+N configuration)

Especificaciones técnicas

TypeThree phase
Rated voltage3x230V
Rated current1A-63A
Frequency50 Hz
Accuracy class1.0
Height90 mm
Width80 mm
Depth70 mm
Weight387 g
Safety warningDo not open the appliance while it is energised.

Preguntas frecuentes

What is the maximum current this relay can handle?

The relay supports a rated current range from 1A to 63A, allowing flexible use with various three-phase loads.

Can this relay be used with a single-phase system?

No, this is a three-phase relay designed for 3x230V systems. It is not suitable for single-phase applications.

What are the dimensions of this relay?

The relay measures 90 mm in height, 80 mm in width, and 70 mm in depth, and weighs 387 g.

Is the timer adjustable?

The product includes a timer function, but specific adjustment details are not provided in the available data. Please refer to the manufacturer's documentation for programming instructions.

Es para ti si...

  • You need to control three-phase loads up to 63A with precise timing.
  • You require a DIN rail-mounted solution for industrial or commercial electrical panels.
  • You value accuracy class 1.0 for reliable performance.
  • You are working with 3x230V 50 Hz power systems.
