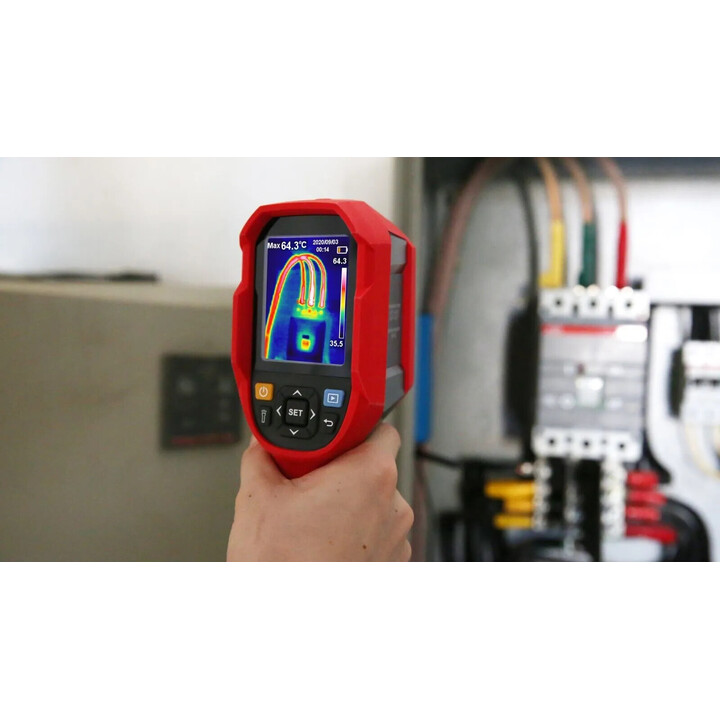

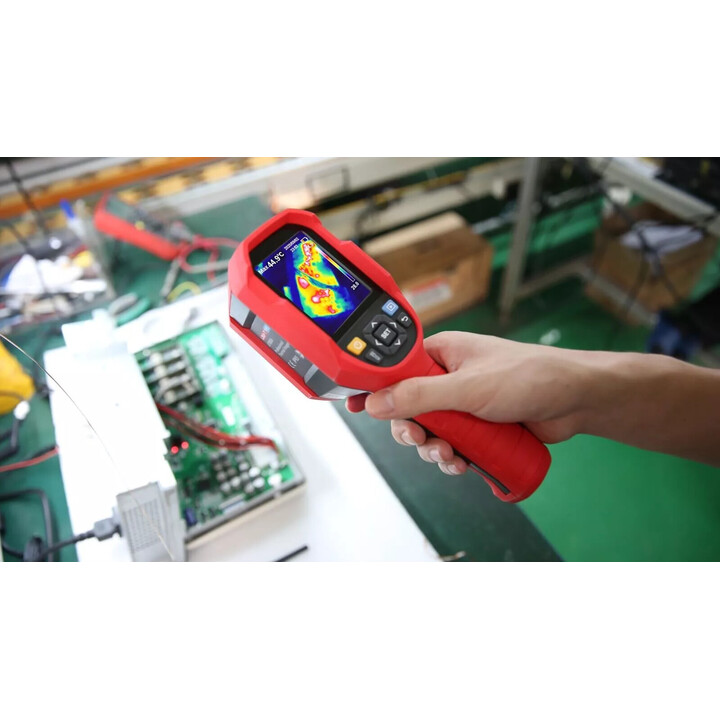

The Uni-T UTi260B is a professional-grade thermal imaging camera designed for electrical, mechanical, and HVAC diagnostics. With a 256x192 infrared sensor and a temperature measurement range from -20°C to 550°C, it provides clear thermal patterns for identifying overheating components, insulation defects, and moisture issues. The device features a 2.4-inch TFT LCD display for real-time viewing and a 5MP visible camera with LED light for blending thermal and visual images.
Built for field use, the UTi260B offers adjustable emissivity, multiple color palettes, and a rechargeable lithium-ion battery for extended operation. It supports image capture and storage on a microSD card, and includes USB connectivity for data transfer. The IP54 rating ensures resistance to dust and splashes, making it suitable for demanding environments. This camera is an essential tool for preventive maintenance and troubleshooting.
| Brand | Uni-T |
| Model | UTi260B |
| Infrared Resolution | 256x192 pixels |
| Temperature Range | -20°C to 550°C |
| Accuracy | ±2°C or ±2% |
| Display | 2.4-inch TFT LCD |
| Visible Camera | 5MP with LED light |
| Field of View | 56° x 42° |
| Thermal Sensitivity | <0.05°C |
| Image Storage | microSD card (up to 32GB) |
| Battery | Rechargeable Li-ion, 3.7V 2600mAh |
| Protection Rating | IP54 |
| Connectivity | USB Type-C |
| Weight | Approx. 350g |
